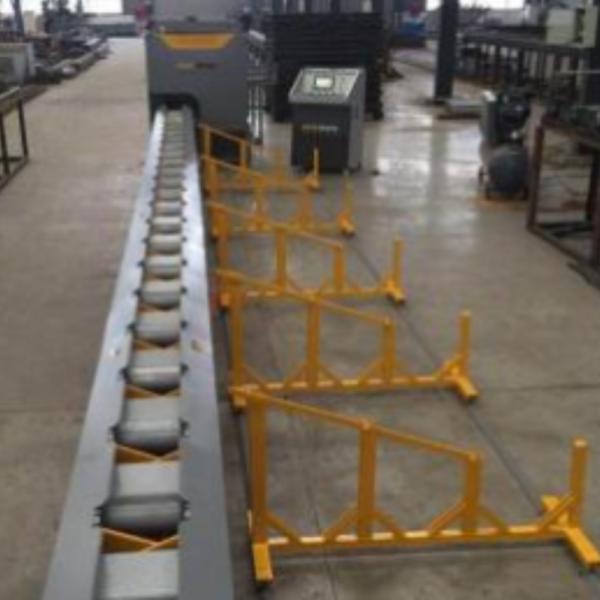

500mm Hydraulic Rebar Shear Line with 42kw Motor
500mm Hydraulic Rebar Shear Line with 42kw Motor
500mm Hydraulic Rebar Shear Line with 42kw Motor
500mm Hydraulic Rebar Shear Line with 42kw Motor
500mm Hydraulic Rebar Shear Line with 42kw Motor
500mm Hydraulic Rebar Shear Line with 42kw Motor
500mm Hydraulic Rebar Shear Line with 42kw Motor
500mm Hydraulic Rebar Shear Line with 42kw Motor
500mm Hydraulic Rebar Shear Line with 42kw Motor
500mm Hydraulic Rebar Shear Line with 42kw Motor
500mm Hydraulic Rebar Shear Line with 42kw Motor
500mm Hydraulic Rebar Shear Line with 42kw Motor
Specifications
Place of Origin :
Sichuan, China
Brand Name :
GUTE
MOQ :
1
Price :
$58,000
Voltage :
380V
Dimension :
30*5*3 m
Power :
42kw
Weight :
15000 kg
Cutting edge width :
500mm
Shearing mode :
Hydraulic shearing
Roller speed :
0-100m/min adjustable
Maximum shear length :
12m
Minimum shear length :
1.4m
Shear Accuracy :
±5mm
Shear frequency :
≤12n/min
Silo Series :
3
Length Control Mode :
Servo
Blade thickness :
40mm
Pay-off capacity :
2500KG
Description
Good Quality Custom Cutting Edge Width 500mm Rebar Shear Line Rebar Shear Line SGS150
Product Specifications
Attribute Value
Video Outgoing-Inspection Provided
Machinery Test Report Provided
Core Components Motor
Voltage 380V
Dimension (L×W×H) 30×5×3 m
Power (kW) 42
Weight (kg) 15000
Key Selling Points Easy to Operate
Warranty 1 Year
Cutting Edge Width 500mm
Shearing Mode Hydraulic Shearing
Roller Speed 0-100m/min adjustable
Maximum Shear Length 12m
Minimum Shear Length 1.4m
Shear Accuracy ±5mm
Shear Frequency ≤12n/min
Silo Series 3
Rated Power 42kw
Total Weight 15t
Product Description
500mm Hydraulic Rebar Shear Line with 42kw Motor 500mm Hydraulic Rebar Shear Line with 42kw Motor
CNC REBAR SHEAR LINE SGS150
  • PLC control shearing precision, high precision of finished steel bar, suitable for shearing processing of steel bar with many specifications and small batches.
  • The machine has 24 fixed length plates, all steel plate structure, with fixed length servo motor for fast and accurate positioning.
  • Large length blade and inclined blade design ensure multiple reinforcing bars can be cut simultaneously.
  • Equipped with centralized oil supply system for long life operation.
  • Level 3 product storage mechanism facilitates collection of multiple products.
  • Thickened and widened gears for stable, efficient cutting with fully encapsulated shield for enhanced safety.
  • High strength spiral elevator for positioning screw prevents deformation and ensures high positioning accuracy.
  • Cutting length can be set arbitrarily for continuous work with high fixed-length cutting accuracy.
  • Key-guided chains with rolling friction design for minimal wear, long service life, and high transmission efficiency.
Straightening Structure

Straightening wheel made from forged alloy tool steel for superior wear resistance and impact resistance.

Preset wheel plate constructed from 30mm thick steel plate for high strength and durability under impact load.

Multi-split Type Blade

Multi-split type blade design doubles lifespan compared to standard one-piece blades.

500mm Hydraulic Rebar Shear Line with 42kw Motor 500mm Hydraulic Rebar Shear Line with 42kw Motor
Servo Motor

16KW high-power servo motor ensures smooth traction operation.

Pneumatic Element

Premium Airtac brand pneumatic components from Taiwan ensure extended service life.

Split thickening blade design with 40mm thickness for multiple uses.

500mm Hydraulic Rebar Shear Line with 42kw Motor 500mm Hydraulic Rebar Shear Line with 42kw Motor
Pay-Off System
  • 2 pay-off units per machine
  • 2500KG maximum carrying capacity per pay-off
  • Designed for easy disassembly and transport
  • Optional brake customization available
Automatic Collector (Optional)
  • Automatically collects finished stirrups
  • Adjustable collection quantity settings
  • Simplifies finished product packaging
500mm Hydraulic Rebar Shear Line with 42kw Motor
Application
500mm Hydraulic Rebar Shear Line with 42kw Motor 500mm Hydraulic Rebar Shear Line with 42kw Motor
Production Line
500mm Hydraulic Rebar Shear Line with 42kw Motor 500mm Hydraulic Rebar Shear Line with 42kw Motor 500mm Hydraulic Rebar Shear Line with 42kw Motor 500mm Hydraulic Rebar Shear Line with 42kw Motor
Company Profile
500mm Hydraulic Rebar Shear Line with 42kw Motor 500mm Hydraulic Rebar Shear Line with 42kw Motor 500mm Hydraulic Rebar Shear Line with 42kw Motor 500mm Hydraulic Rebar Shear Line with 42kw Motor 500mm Hydraulic Rebar Shear Line with 42kw Motor

GUTE is a manufacturer of construction machinery with 28 years of history and more than 250 workers producing steel bar processing machinery.

  • Exported to more than 70 countries with 70% export share of steel bar bender/cutter
  • Over 200 agents in Chinese market and 10 owned brand shops across China
  • OEM provider for many famous European brands
  • Machines sold to Russia, Italy, Brazil, Algeria, India, Argentina, Saudi Arabia, Middle East and more than 70 countries worldwide
  • Specialists in reinforcement steel bar bending, shearing, welding, and straightening machines
  • Expert in fast, professional customized services with strong R&D and quality control
  • Manufacturer of highly precise, durable semi-automatic and fully automatic steel bar machines
Transportation
500mm Hydraulic Rebar Shear Line with 42kw Motor
Frequently Asked Questions
Q: What's the producing time and delivery time?
A: Order less than 5 pcs, we have stock, delivery to Shanghai port about 5 days. And order more than 5 pcs, about 10-15 working days.
Q: What's the MOQ?
A: 5 pcs. For sample order, 1 pc is OK, there's extra port and delivery charges.
Q: What's the departure port?
A: Usually Shanghai port, Guangzhou, Qingdao, Tianjin and other Chinese port is also OK.
Q: What's the packing?
A: Iron Pallet and Polly wooden cases (no fumigation needed).
Q: What's the payment term?
A: T/T, L/C, DP, West union, PayPal.
