• Smart touch screen, can store hundreds of graphics, simple operation.
• The degree of automation is high, and the production efficiency is several times that of the traditional mode.
• The key parts are IKO, Ha and Luo bearings to ensure service life.
• The adjusting wheel and pre-adjusting wheel use special shaped bearings directly, which is convenient and economical.
• Electrical components are made by famous brands such as Chint and Mingwei to ensure service life.
• Traction and bending are controlled by bus servo, which has fast response, stability and reliability.
• Each transmission system adopts standard reducer transmission, which has stable structure and high transmission efficiency.
• Modular compact fuselage, transportation, installation is more convenient, easy.
• The integrated structure of shear and bending, the two-in-one structure of shear blade and bending mold makes it more convenient to bend special shape hoop reinforcement.

Mainly used in the construction of housing construction, highways, roads and bridges, subways and other projects,A small-scale steel bar processing machine that is widely used

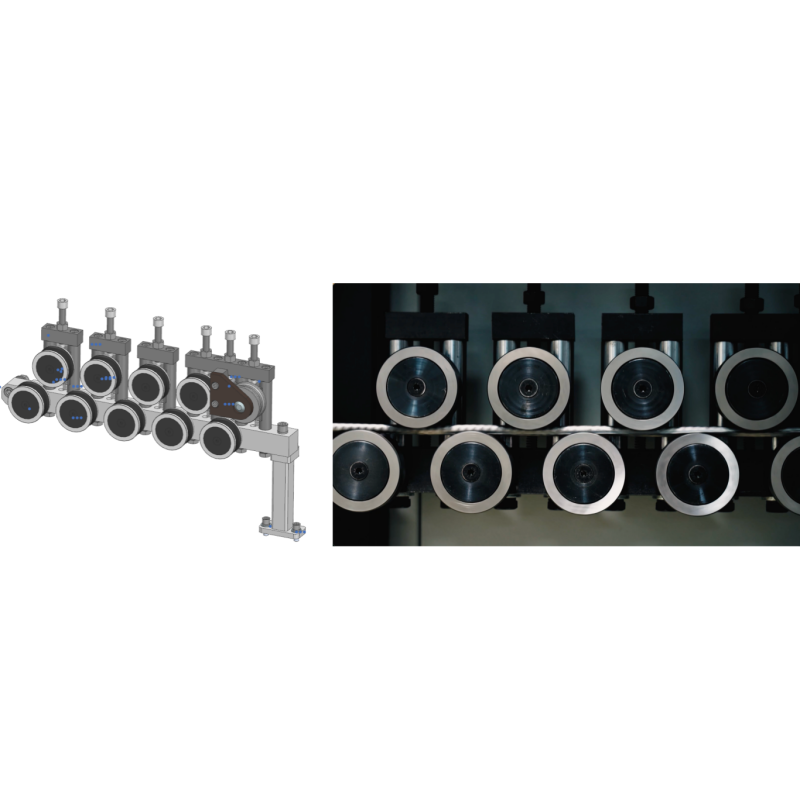

• Adjustment Assembly: The straightening wheel utilizes an externally purchased bearing with a diameter of φ89mm and is equipped with a separate adjustable wheel for dual-line straightening. The wear-resistant feed sleeve, constructed from hard alloy tungsten steel, ensures exceptional durability. It features a single-hole feed base specifically designed for large steel bars.

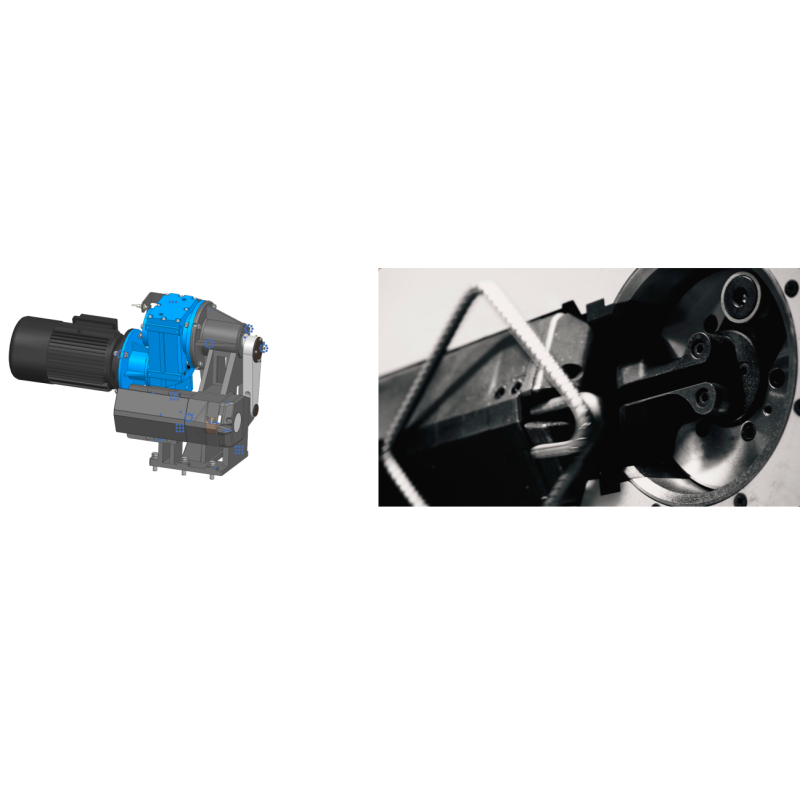

<img alt="" src=" <p> </p> <ul> <li>Traction assembly: Composed of two sets of traction wheels and clamping wheels, it is driven directly by a standard reducer through a servo motor, ensuring smooth operation with low noise. The traction wheels are made of alloy steel to guarantee their service life, while the clamping wheels utilize heavy-duty series rolling bearings. This design not only ensures durability but also delivers excellent cost-effectiveness.</li> </ul> <p><img alt=" "="" data-cke-saved-src="/photo/gutemachine/editor/20251213141339_13522.jpg" style="height: 271px; width: 650px;">

• Straightening assembly: the straightening wheel adopts the φ89 large purchased straightening bearing, and has a set of independent adjustable wheels to adapt to double line straightening.

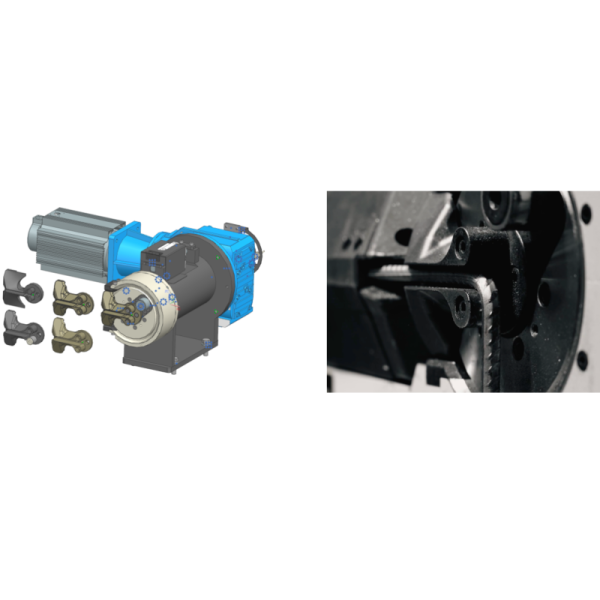

• The rocker arm, rocker arm fixing seat, shear guide plate and moving blade are redesigned, and their screw installation holes are changed to hidden, so as to reduce the risk of collision and deformation during bending.

• It can be bent forward and backward by molding the mold.
