GQ42D 3kW Motor Steel Bar Cutter with 6-40mm Capacity High-Efficiency Cutting for Rebar and Steel Rods
GQ42D 3kW Motor Steel Bar Cutter with 6-40mm Capacity High-Efficiency Cutting for Rebar and Steel Rods
GQ42D 3kW Motor Steel Bar Cutter with 6-40mm Capacity High-Efficiency Cutting for Rebar and Steel Rods
GQ42D 3kW Motor Steel Bar Cutter with 6-40mm Capacity High-Efficiency Cutting for Rebar and Steel Rods
GQ42D 3kW Motor Steel Bar Cutter with 6-40mm Capacity High-Efficiency Cutting for Rebar and Steel Rods
GQ42D 3kW Motor Steel Bar Cutter with 6-40mm Capacity High-Efficiency Cutting for Rebar and Steel Rods
GQ42D 3kW Motor Steel Bar Cutter with 6-40mm Capacity High-Efficiency Cutting for Rebar and Steel Rods
GQ42D 3kW Motor Steel Bar Cutter with 6-40mm Capacity High-Efficiency Cutting for Rebar and Steel Rods
GQ42D 3kW Motor Steel Bar Cutter with 6-40mm Capacity High-Efficiency Cutting for Rebar and Steel Rods
GQ42D 3kW Motor Steel Bar Cutter with 6-40mm Capacity High-Efficiency Cutting for Rebar and Steel Rods
GQ42D 3kW Motor Steel Bar Cutter with 6-40mm Capacity High-Efficiency Cutting for Rebar and Steel Rods
GQ42D 3kW Motor Steel Bar Cutter with 6-40mm Capacity High-Efficiency Cutting for Rebar and Steel Rods
Specifications
Place of Origin :
Sichuan, China
Brand Name :
GUTE
Certification :
CE
MOQ :
1
Price :
$1,700-1,900
Voltage :
380 V
Dimensions :
1100*500*900MM
Power :
3 kW
Weight :
495 kg
Cutting diameter :
6-40mm Steel Bar
Cutting speed :
48T/min
Noise level :
75dB
Motor speed :
2860R/min
Gear box oil :
8L
Blade thickness :
4 edges
Case thickness :
15mm
Flat steel capacity :
70*15MM(450N/MM)
Motor type :
CE Certificated dust proof
Motor shell :
Aluminium
Core components :
Motor, Gearbox, Bearing
Description

Product Description

• GQ42D adopts GEARS, SHAFTS, CONNECTION ROD and BLADES made of high-quality alloyed steel with required heat treatment (quenching/ tempering/ high frequency) and 15mm thick external case to ensure reliable performances also under heavy loads and long working life.
• CONNECTION ROD has high hardness degree on attaching part with the blade, its internal side is made of tin-bronze to avoid abrasions while touching the crankshaft.
• Thick BLADES (4 edges) to ensure accurate cutting with all kinds of steel bar (square blade or moon-shape blade option with press-spring).
• CE Certificated dust proof MOTOR with aluminium shell.
• CE Certification (2006/42/EC - 2006/95/EC).

Cutting Diameter6-40MM(450N/MM)6-36MM(650N/MM)
Flat Steel70*15MM(450N/MM)
Motor Power3KW-2P
Motor Speed2860R/MIN
Cutting Speed48T/MIN
Noise75dB(A)
Gear Box Oil Volume8L
Machine Szie1100*500*900MM
Weight495KG

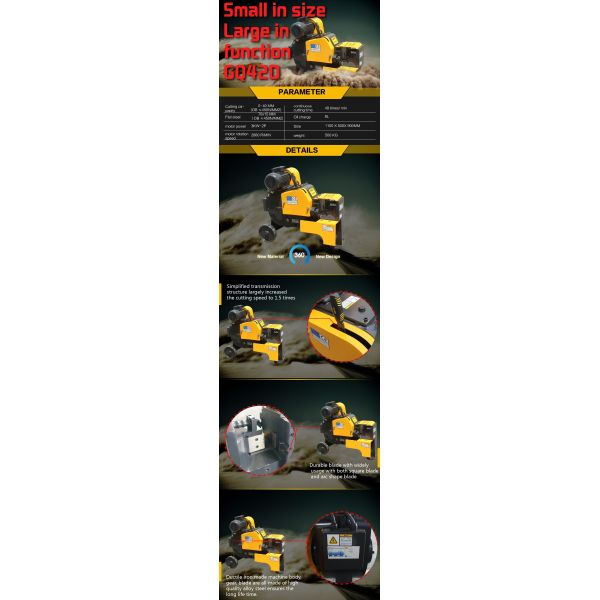

Product Pictures
