Fiber Optic Terminal Box
Fiber Optic Terminal Box
Specifications
Brand Name :
OptiNext
Model Number :
Fiber Optic Terminal Box
Place of Origin :
China
MOQ :
5
Payment Terms :
T/T
Description

1.Basic information

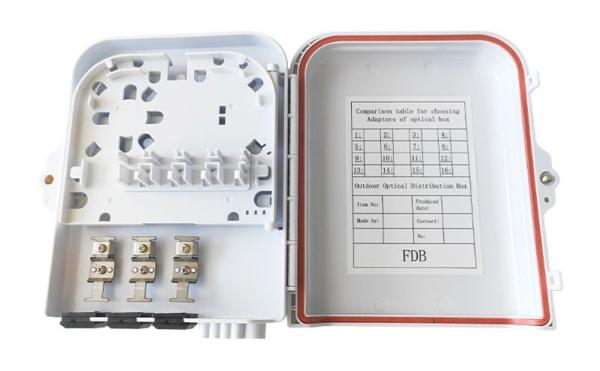

It is an outdoor fiber optic terminal box with 3 U-shape ports and 9 output ports. It can load PLC steel tube type splitter and 8 SC simplex adapters for fiber connection and distribution.

2.Features:

Material: ABS plastic

IP standard: IP65

Color: white or black

Cable ports: 3pcs U-shape cable ports, 9pcs output ports

Can load PLC steel tube type splitter 1x4, 1x8

Application: outdoor wall mounted or pole mounted

3.Specification:

Model

Dimension

(mm)

 Material Adapter port Splicing Capacity Cable port Application
193.6x227.5x54.8 ABS plastic 8 SC simplex 8 fibers

-s3 Uhape cable ports,

9 output ports

 Outdoor wall mounted

4.Accessories:

Item Name Specification Qty
1 Cable clamp 10-16, stainless steel 3pcs
2 Nylon cable tie 3*120mm, white 6pcs
3 Key 1pc
4 Heat shrinkable protection sleeve 60*3.0*1.0mm 8pcs
5 Round Self tapping screws C type, 4*30mm, metal 4pcs
6 Plastic expansion tube Ф6mm, plastic, white

4pcs
