Specifications
Brand Name :
Guide Visual
Model Number :
GS
Certification :
CCC CE FCC
Place of Origin :
China
MOQ :
1
Price :
Negotiation
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
3000 per square meters
Delivery Time :
15 days
Packaging Details :
Flight Case
LED Type :
SMD1912
Module Size :
250*250mm
Cabinet Size :
500*500mm OR 1000*1000mm
Driving Method :
1/28s
IP Rating :
IP65
Refresh Rate :
7680Hz
Cabinet Material :
Die-cast aluminum
IP Rate :
65
Input Voltage :
AC 110-220V
Power Consumption :
Max 800W/sqm
Gray Scale :
16 bit
Warranty :
2years
Description
Guide Visual GS Rental LED Pallata High Brightness 7680Hz Refresh Video Wall
Key Features
  • 7680Hz high refresh rate for ultra-smooth, flicker-free visuals, perfect for live broadcasts and professional events
  • Dual power & signal backup to ensure stable performance without blackouts
  • Lightweight and durable cabinet with quick-lock system for fast installation and dismantling
  • Front and rear maintenance design for flexible setup and easy servicing
  • Seamless splicing and excellent color uniformity for stunning visual experience
  • Hard Link connection system for stronger panel stability, better alignment, and zero signal delay
  • Equipped with Nova A5plus control system for superior image processing and accurate color reproduction
  • Modular design for easy replacement and efficient maintenance
  • High brightness and waterproof design, ideal for both indoor and outdoor rental applications
Guide Visual LED Backdrop Screen Modular LED Display Panels for Events and Shows
LED Screen Technical Specifications
Module Parameters
Item Specifications
Module Size 250 * 250 mm
Module Dots 64 * 64
Pixel Pitch 3.9mm
Guide Visual LED Backdrop Screen Modular LED Display Panels for Events and Shows Guide Visual LED Backdrop Screen Modular LED Display Panels for Events and Shows
Cabinet Parameters
Item Specifications
Cabinet Size 500 * 1000 mm
Cabinet Dots 128 * 256
Cabinet Material Die Casting Aluminum
Cabinet Weight 13 kg
Guide Visual LED Backdrop Screen Modular LED Display Panels for Events and Shows
Performance Specifications
Item Specifications
Color Grayscale 32 bit
LED Chip Kinglight SMD1415 Black 3 in 1
Gray Scale per Color 4096-65535
Refresh Rate 7680 Hz
Driving Type 1/32 Scan
Signal Transmission Distance CATS Cable: <100m, Single Mode Fiber: <10km
Brightness 4500-5000 nits
Optimal Horizontal Viewing Angle 160°
Optimal Vertical Viewing Angle 160°
AC Input Voltage AC 110 V
AC Input Frequency 50/60 Hz
AC Input Power Typical Value 250W/sqm
Storage Temperature -25°C to 65°C
Work Temperature -20°C to 50°C
IP Rating IP65 Front/Rear
Storage Humidity 10%-80% Non-Condensation RH
Working Humidity 10%-80% Non-Condensation RH
Video Signal Source Cable TV, DVD, VCD, PC, RGBHV, YUV, YC, Composite Video
Playback Mode Alternate or arbitrary combination of video, animation, text information
Image Regulation White Balance/Contrast/Visual Correction/Backlight Regulation/Single Module Tuning Brightness
Image Switching VGA Synchronous with the Frame
Blind Spot Rate <0.0001
Signal Processing Capability Not less than 10 bit
Lifetime Typical Value 100,000 Hours

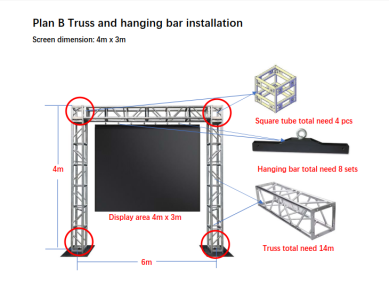

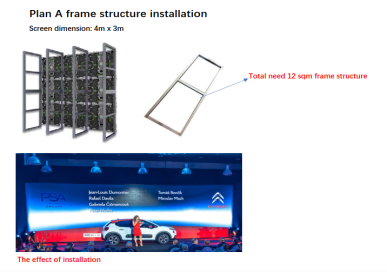

Setup Methods
Guide Visual LED Backdrop Screen Modular LED Display Panels for Events and Shows Guide Visual LED Backdrop Screen Modular LED Display Panels for Events and Shows

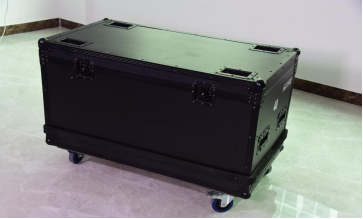

Packaging Information

LED displays are packaged in flight cases, with 6 or 8 units per case. Flight case colors available in red, black, and other options.

Guide Visual LED Backdrop Screen Modular LED Display Panels for Events and Shows

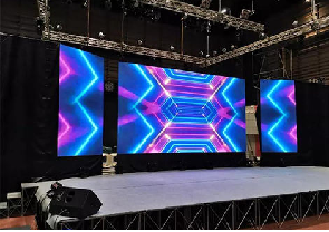

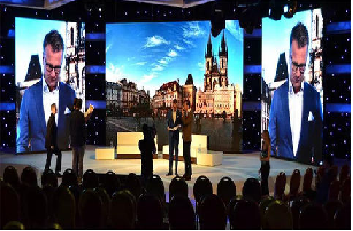

Application Examples
Guide Visual LED Backdrop Screen Modular LED Display Panels for Events and Shows Guide Visual LED Backdrop Screen Modular LED Display Panels for Events and Shows
Why Choose Guide Visual GS
  • Factory-direct LED solutions with professional technical support
  • Competitive pricing with consistent quality assurance
  • Professional factory support ensuring stable quality and direct pricing
