Transparent Led Stage Background Arena Led Screen Video Wall 4500 Nits Waterproof
Transparent Led Stage Background Arena Led Screen Video Wall 4500 Nits Waterproof
Transparent Led Stage Background Arena Led Screen Video Wall 4500 Nits Waterproof
Transparent Led Stage Background Arena Led Screen Video Wall 4500 Nits Waterproof
Transparent Led Stage Background Arena Led Screen Video Wall 4500 Nits Waterproof
Transparent Led Stage Background Arena Led Screen Video Wall 4500 Nits Waterproof
Transparent Led Stage Background Arena Led Screen Video Wall 4500 Nits Waterproof
Transparent Led Stage Background Arena Led Screen Video Wall 4500 Nits Waterproof
Specifications
Brand Name :
Guide
Model Number :
G20
Certification :
CE CCC FCC
Place of Origin :
China
MOQ :
1
Price :
Negotiation
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,
Supply Ability :
Global Coverage
Delivery Time :
15
Packaging Details :
Flight Case
Installationtype :
Indoor and outdoor
Led Specification :
SMD 2020
Brightness :
Typically 4500-7000 nits
Contrastratio :
≥4000:1
Viewingangle :
140° horizontal, 140° vertical
Resolution :
High definition (e.g., 1920x1080 or customizable)
Usage :
Stage events, concerts, exhibitions
Screentype :
LED
Cabinet Material :
Aluminium Die Case
Screen Type :
LED
Feature :
Waterproof
Powerconsumption :
Average 350W/m²
Controlsystem :
Advanced control system with real-time monitoring
Screen Resolution :
3840 X 2160
Screensizeoptions :
Various sizes available
Description
G20 Series Transparent LED Video Wall with 56%-75% Transmittance IP65 Rated Outdoor Rental Display and 4500 Nits Brightness
The G20 transparent rental screen features a die-cast aluminum cabinet, designed for durability and performance in various environments. Its robust construction ensures excellent waterproof and dustproof capabilities, making it ideal for both indoor and outdoor events. UV-resistant protection maintains long-lasting clarity and vibrancy, perfect for concerts, exhibitions, and promotional events.
Transparent Led Stage Background Arena Led Screen Video Wall 4500 Nits Waterproof
Excellent Displaying Effect
  • 56%-75% transmittance for optimal visibility
  • High refresh rate IC and premium LED wafer for superior performance
  • Ultra-high contrast ratio with wide viewing angle and color gamut
  • No shadow or light/dark lines for perfect visual reproduction
Transparent Led Stage Background Arena Led Screen Video Wall 4500 Nits Waterproof

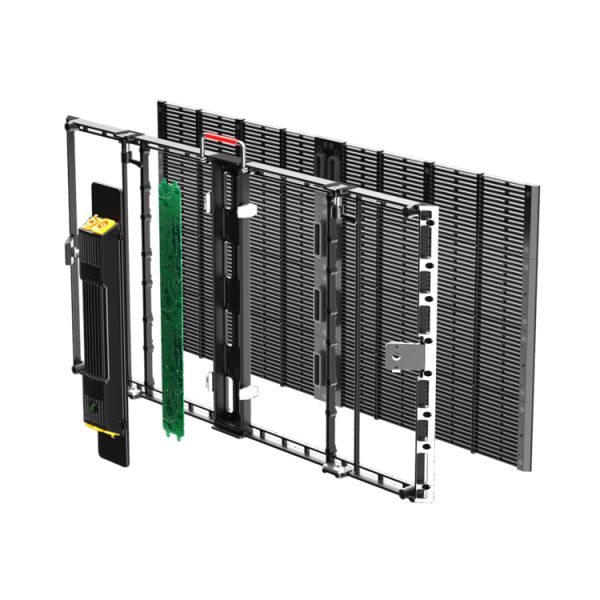

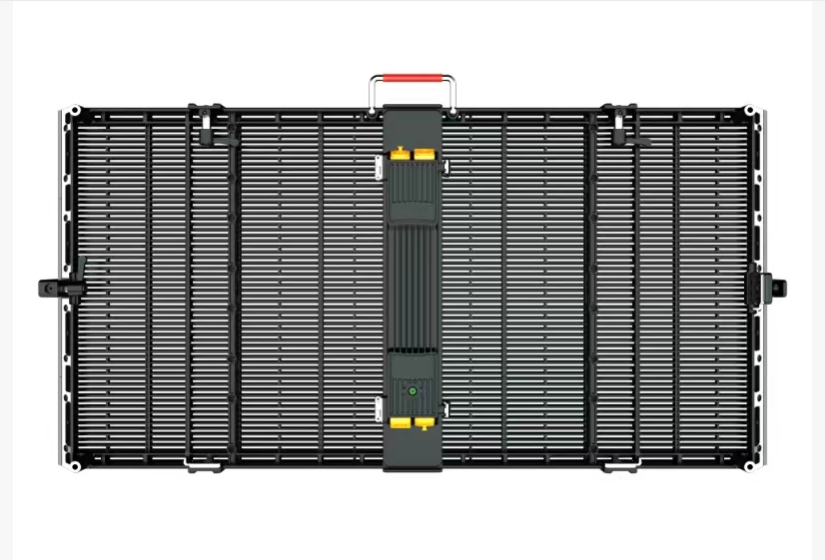

Easy Front Maintenance
The hard-connect design ensures easy front maintenance, allowing quick access to components for simplified repairs and reduced downtime. Enjoy hassle-free upkeep while maintaining optimal performance in any installation.
Transparent Led Stage Background Arena Led Screen Video Wall 4500 Nits Waterproof

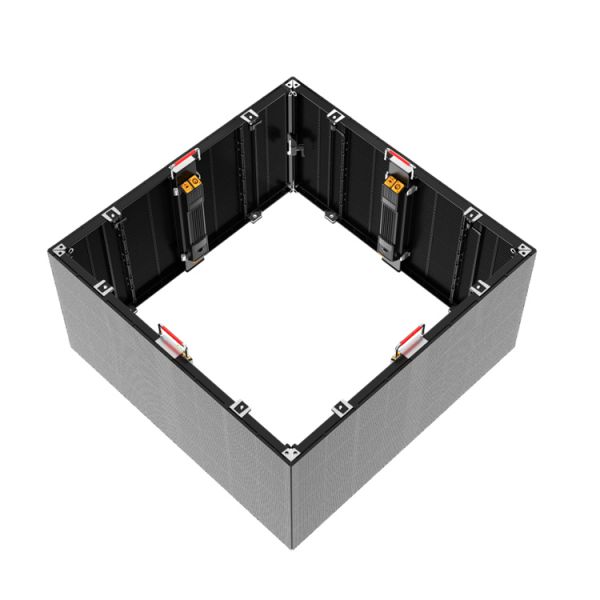

Versatile Configuration

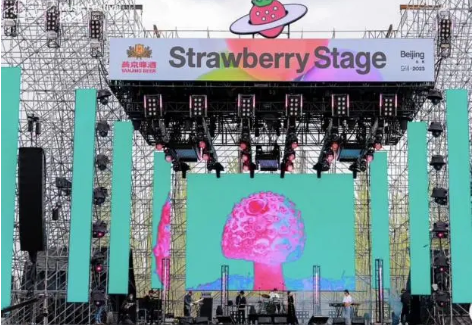

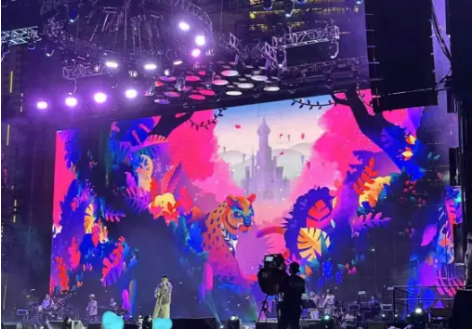

The transparent LED screen can be configured into various shapes, making it ideal for outdoor concerts and music festivals. Its versatility allows for creative stage designs that enhance visual experiences with stunning clarity.
Transparent Led Stage Background Arena Led Screen Video Wall 4500 Nits Waterproof

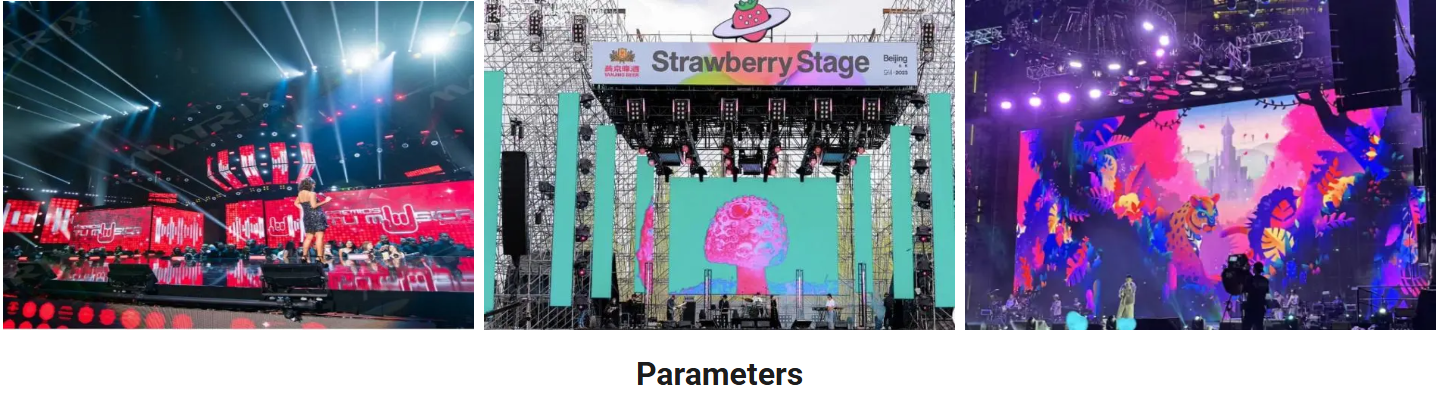

Applications
  • Chain Stores: Creates unique storefront displays that attract customers with vivid video advertisements
  • Glass Showcases: Revolutionizes retail displays for building facades and interior decoration
  • Large Shopping Malls: Combines artistic beauty with commercial environments for enhanced visual impact
  • Architectural Media: Advanced solutions for glass curtain wall buildings and modern architectural designs
Transparent Led Stage Background Arena Led Screen Video Wall 4500 Nits Waterproof Transparent Led Stage Background Arena Led Screen Video Wall 4500 Nits Waterproof
Technical Parameters
Items Parameters
Pixel Pitch (mm) H3.9mm * V7.8mm
Pixel Density(dot/M2) 32768
Transmittance Common 75%
Cabinet Pixel Arrangement 256*64 (90°rotatable)
Display Resolution 256*128(Interlaced)
Max Power Consumption (W/M2) 800(in white color)
Average Power Consumption (W/M2) 260(Dynamic)
Brightness (nits) 4500
Cabinet Size(mm) 1000*500(90°rotatable when installing)
Cabinet Weight (kg) 7.5 kg
Refresh Rate(Hz) 3840
LED Package SMD1921
LED Control System Nova
Display Ports DVI/HDMI/DP/CAT cable
Driver IC ICN2153 PWM
IP Rate outdoor IP65
Working Voltage DC4.5V
Power Supply AC100~240V 50/60Hz /220V±10V
Working Temperatures / Humidity -20〜40℃, 10%-90% no condensation
LED Life Span 100,000 hours
