Depending on the point spacing of the transparent led display, the light transmittance can be between about 70-75%. The perspective effect allows the glass to retain the function of lighting and perspective, and the existence of the led light is almost invisible from a distance. The lighting of the glass curtain wall is not affected.

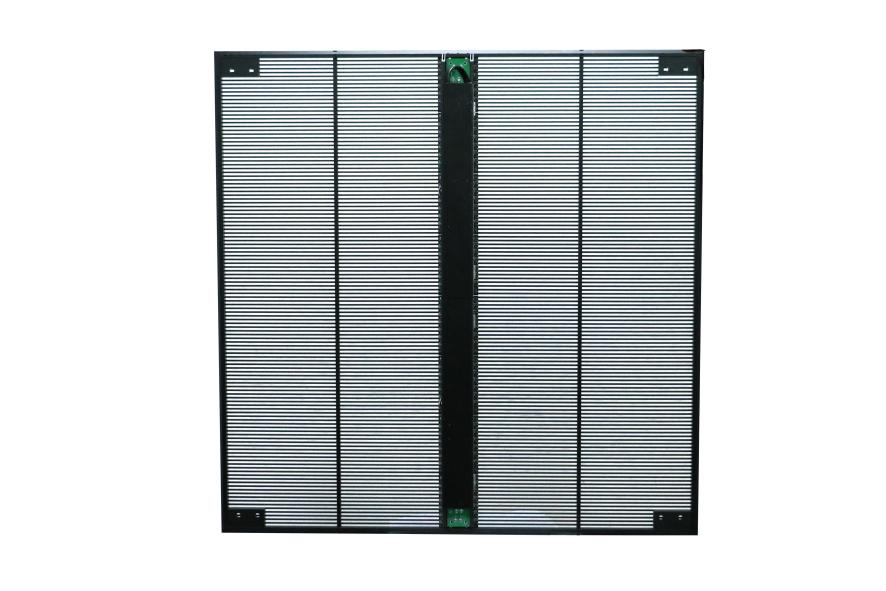

Ultra thin design and light weight: The main board of the screen is only 10mm thick. After the led transparent screen is installed, it takes up almost no space and does not interfere with other facilities or structures near the glass curtain wall. The led transparent screen is extremely light in weight, and the load requirements on the glass curtain wall change very little after being installed on the glass curtain wall.Only a simple steel frame structure is needed, saving a lot of costs: This product is light in weight, easy to install, does not require a complex supporting steel structure, and can save a lot of installation costs.

Maintenance is convenient and fast: indoor maintenance is fast and safe, saving manpower and material resources.Save building lighting costs: If you install an LED transparent screen, you can save a large part of the lighting fixtures on the exterior wall. At the same time, the LED screen is more attractive, which saves costs and has advertising benefits.

Guide led transparent screen cabinets are fully customizable to meet your specific needs. We offer a range of brightness options, allowing customers to tailor the product according to their installation environment. Whether for retail displays, exhibitions, or architectural applications, our transparent screens provide stunning visuals while maintaining an elegant aesthetic. With advanced technology and high-quality materials, our solutions ensure optimal performance and durability. Experience the perfect blend of innovation and customization with our LED transparent screens, designed to enhance any space while delivering exceptional clarity and vibrancy.

Application

Chain stores: A unique store image can attract consumers to stop and increase customer flow. The unique design method allows the transparent led display to replace the traditional store exterior led display, and provides richer and more vivid video advertisements, making the store extremely cool and eye-catching.

Glass showcases: With the rapid expansion of the digital signage industry represented by retail, led transparent screens have brought revolutionary changes to retailers and are increasingly popular in fields such as building facades, glass showcase decoration, and interior decoration.

Large shopping malls: The modern artistic beauty of led transparent displays is effectively combined with the shopping mall environment. It has broad application prospects in shopping malls, glass partitions, etc.

Architectural media: With the development of led technology. Architectural media technology has also made rapid progress, especially in the application of glass curtain wall buildings. It has become increasingly popular in recent years, and various solutions such as led light bar screens and transparent led sky screens have emerged.

Parameters

Model	P3.91-7.82mm	P2.6-5.2mm	P2.8-5.6mm
Led Type	SMD1921	SMD1921	SMD1921
Driving IC	16169	16208	ICN2038S
Scan mode	1/16 Scan	1/12 Scan	1/11 Scan
Module Resolution	128*16dots	192*24dots	176*22dots
Module Pixels	2048dots	3872dots	4608dots
Cabinet Size	1000*1000mm	1000*1000mm	1000*1000mm
Cabinets Resolution	256*128dots	384*192dots	357*178dots
Light Transmittance	≥75％	≥75％	≥75％
Module Quantity	16pcs	16pcs	16pcs
Pixel Density	32768 Point/㎡	73728 Point/㎡	61925 points/㎡
Material	Aluminum	Aluminum	Aluminum
Brightness	1500cd/㎡	1500cd/㎡	1500cd/㎡
Viewing Angle	V:140° / H:140°	V:140° / H:140°	V:140° / H:140°
Minimum Viewing Distance	≥3m	≥3m	≥3m
Grayscale Grade	16bit	16bit	16bit
Refresh Rate	≥3840HZ	≥3840HZ	≥3840HZ
Frame Change Frequency	60fps	60fps	60fps
Input Voltage	DC5-3.5V/AC85-240V
Power Consumption	800W/㎡	800W/㎡	800W/㎡
Screen Weight	10kg/㎡	10kg/㎡	10kg/㎡
MTBF	>10,000 hours
Lifetime Typical Value	≥100,000 hours
IP Grade	IP30
Temperature	-40℃~+40℃
Humidity	15%-90%RH
Maintenance Method	front
Installation Method	Fixed installation
Operating System	NOVA
