P3 Outdoor Fixed LED Display Screen 6500nits IP65 Weatherproof Digital Billboard Sign Wall
Clearly visible under direct sunlight, in any weather condition. Engineered for outdoor environments where standard displays fail.
Flicker-free display performance — ideal for broadcast, photography, and video recording environments. No banding, no distortion under camera.

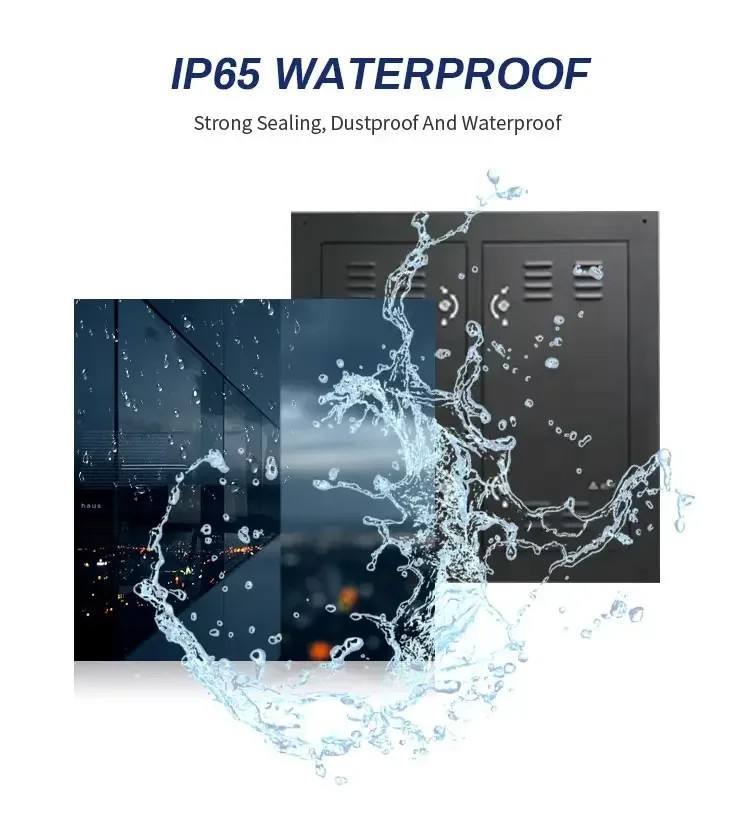

Fully sealed against dust ingress and high-pressure water jets. Designed to operate continuously in rain, humidity, and extreme temperatures from -20°C to +60°C.
Steel cabinet: cost-effective, high structural strength, ideal for large-scale billboard and building facade projects. Die-cast aluminum cabinet: lighter weight, superior heat dissipation, precision-formed edges for seamless tiling — preferred for high-end permanent installations.
Front maintenance: modules and power supplies accessible from the front face — essential for wall-mounted or embedded installations with no rear access. Rear maintenance: full back-panel access — standard for freestanding structures, billboard frames, and rooftop installations with service walkways.



| Specification | Parameter |
|---|---|
| Pixel Pitch | 3mm |
| Pixel density(dots/㎡) | 111111 |
| LED configuration | 1R1G1B |
| SMD1415 Outdoor | |
| Module size | 192(W)*192(H) |
| Cabinet size | customized |
| LED control system | NOVA |
| Refresh rate(Hz) | ≥3840Hz |
| Grey scale | 14bit |
| Power supply | AC110V-220V |
| Average Power consumption | <280W/㎡ |
| Maximum power consumption | <800W/㎡ |
| Module voltage | DC4.2V-5V |
| Input Voltage | AC220±20%(V)-50/60Hz |
| Cabinet material | Outdoor Iron Cabinet |
| Cabinet weight(kg/㎡) | ≤40kg/㎡ |
| Scanning Method | 1\16/Scanning Constant Current |
| Color Temperature | 6500K±500 |
| Brightness | ≤5500cd/(adjustable) |
| Brightness Control | Auto-adjusting 0-100 levels |
| Color temperature | 5500K-9300K |
| The best Viewing distance | 3M-20M |
| Viewing Angle | (H)160°/(V)140° |
| Working temperature/humidity | -20℃~+60℃ |
| Working temperature/humidity | 10%-95% |
| Control Method | Synchronized |
| Lifetime | >100,000 hours |
| IP rating | IP65 |
Outdoor Application Scenarios

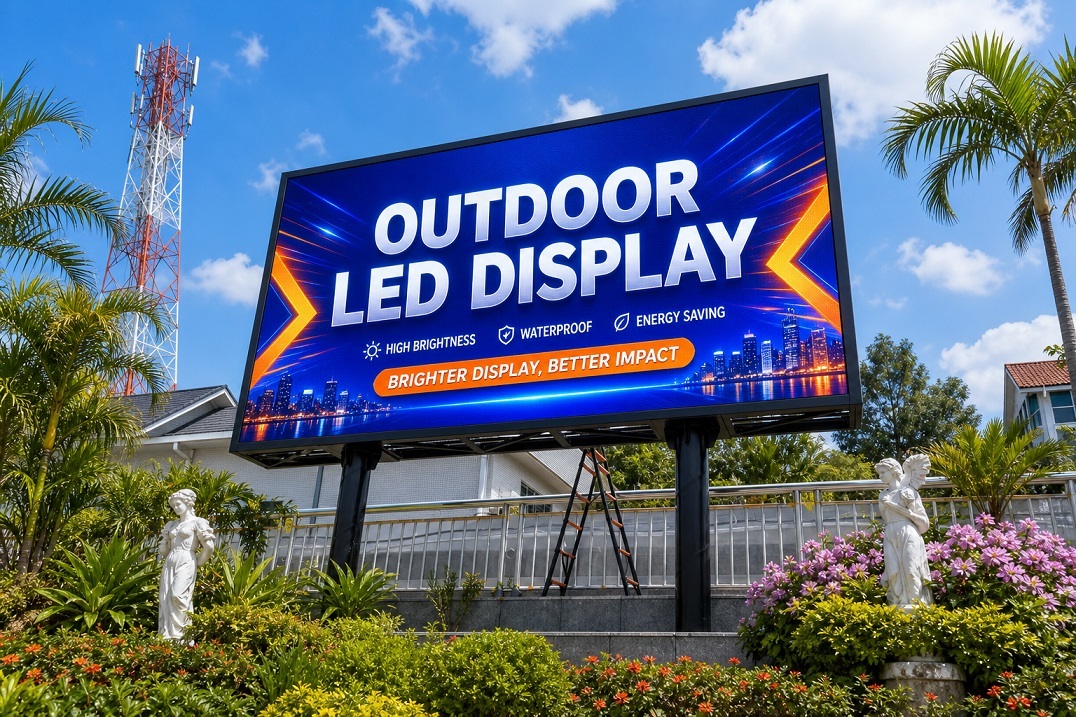

Commercial Advertising – Digital billboards, roadside advertising, shopping centers and retail buildings.
Building Facades – Large-format LED displays installed on commercial buildings, hotels and landmark properties.
Sports Stadiums – Live video, scores, advertisements and event information for outdoor sports venues.
Transportation Hubs – Passenger information, advertisements and public announcements at airports, stations and terminals.
Public Squares & City Centers – News, event information, advertising and large-scale public displays.
Corporate & Government Buildings – Company information, announcements and digital communication.
Education & Institutions – Outdoor information displays for schools, universities and other public facilities.

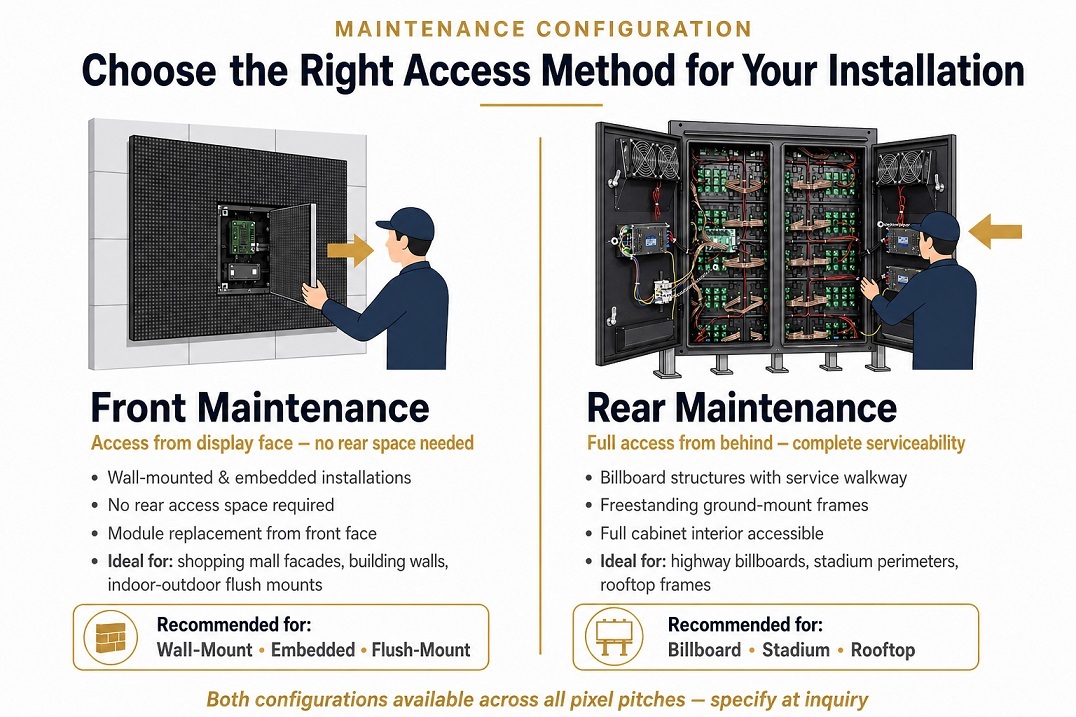

Q: What is the difference between front maintenance and rear maintenance?
A: Front maintenance allows all components to be accessed and replaced from the screen face — essential when the back of the screen is inaccessible (wall-mounted, embedded installations). Rear maintenance requires access from behind the screen — suitable for billboard structures and freestanding frames with rear service access. We supply both configurations; please specify when requesting a quote.
Q: Which cabinet should I choose — steel or die-cast aluminum?
A: Steel cabinets offer higher structural strength and lower cost — ideal for large billboard projects. Die-cast aluminum cabinets are lighter, have better heat dissipation, and provide tighter panel gaps — preferred for architectural facades and premium installations. Both are available across all pixel pitches.
Q: Is the screen visible in direct sunlight?
A: Yes. Our outdoor series operates at 5000–6000 nits brightness, which is sufficient for full visibility in direct sunlight. For extremely high-ambient environments, we recommend the 6000 nit configuration.
Q: What pixel pitch should I choose for my project?
A: Pixel pitch selection depends on viewing distance. General guideline:
P2.5–P3: viewing distance 5–15m (close-range, high-detail content)
P4–P5: viewing distance 10–25m (retail exteriors, transit hubs)
P6–P6.67: viewing distance 15–40m (roadside billboards, stadiums)
P8: viewing distance 20–60m+ (large format highway billboards)
Q: Can you support DDP delivery to my country?
A: Yes. DDP (Delivered Duty Paid) is available for most countries — we handle all freight, customs clearance, and import duties. Please provide your destination country when requesting a quote.
