17-4PH 630 Stainless Steel Bright Round Bars And Wire In Rods Straightened
17-4PH 630 Stainless Steel Bright Round Bars And Wire In Rods Straightened
17-4PH 630 Stainless Steel Bright Round Bars And Wire In Rods Straightened
17-4PH 630 Stainless Steel Bright Round Bars And Wire In Rods Straightened
Specifications
Brand Name :
Daway
Model Number :
17-4PH
Certification :
SGS
Place of Origin :
China
MOQ :
500 kgs
Price :
negotiable
Payment Terms :
L/C, T/T
Supply Ability :
500 tons per month
Delivery Time :
15 days after receipt 30% of value
Packaging Details :
seaworthy
Precipitation hardening stainless steel :
17-4PH, 630, S17400, 1.4542, X5CrNiCuNb16-4
Product :
17-4PH stainless steel round bars, rods
Dia :
0.3~500mm
Delivery condition :
Annealed, aged
Surface :
black, peeled, polished, ground
Length :
on request
Description

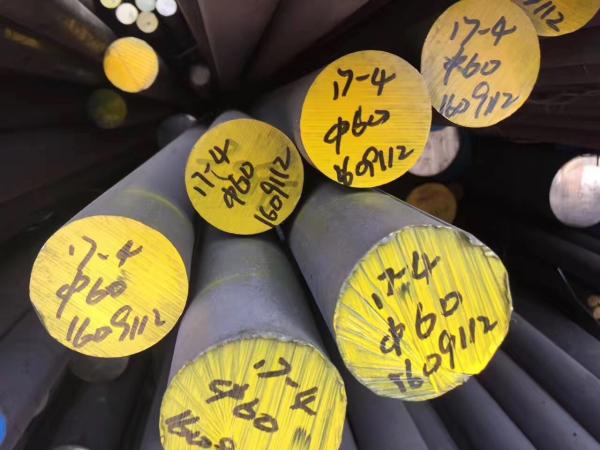

17-4PH 630 Stainless Steel Bright Round Bars And Wire In Rods Straightened

Precipitation hardening stainless steel 17-4PH, S17400, AISI 630, EN 1.4542, DIN X5CrNiCuNb16-4

17-4PH is a chromium-nickel-copper precipitation hardening stainless steel used for applications requiring

high strength and a moderate level of corrosion resistance. High strength is maintained to approximately 600°F (316°C).


The 17-4PH alloy is martensitic in structure in the annealed condition and is further strengthened by a

low temperature treatment which precipitates a copper containing phase in the alloy.

In comparison to many alloys in the precipitation hardening family, material 17-4PH requires a simple

heat treatment; a one step process conducted at a temperature in the range 900°F (482°C) to 1150°F (621°C)

depending on the combination of strength and toughness desired.

A wide range of properties can be produced by this one step heat treatment.

Heat treatment in the 900°F (482°C) range produces highest strength.

Chemical composition % weight

C Si Mn P S Cr Ni Cu Nb
0.07 1.00 1.00 0.040 0.030 15.5~17.5 3.00~5.00 3.00~5.00 0.15~0.45

Forms of supply

We produce 17-4PH, 630 Stainless steel bars, round, flat, square shapes.

products in hot rolled, forged, cold drawn condition.

We also produce 17-4PH stainless in sheet, strip, and plate product forms.

17-4PH is produced in compliance with aerospace specifications such as AMS 5604 and standard

industrial specifications such as ASTM A693 and ASME SA-693.

For Details, please Contact

WUXI GUANGLU Special Steel Co., Ltd.

Stainless martensitic • precipitation hardening steel • stainless ferritic — Our answer to your needs

Tel: +86 510 81812873

Email: export@guanglusteel.com

17-4PH 630 Stainless Steel Bright Round Bars And Wire In Rods Straightened17-4PH 630 Stainless Steel Bright Round Bars And Wire In Rods Straightened
