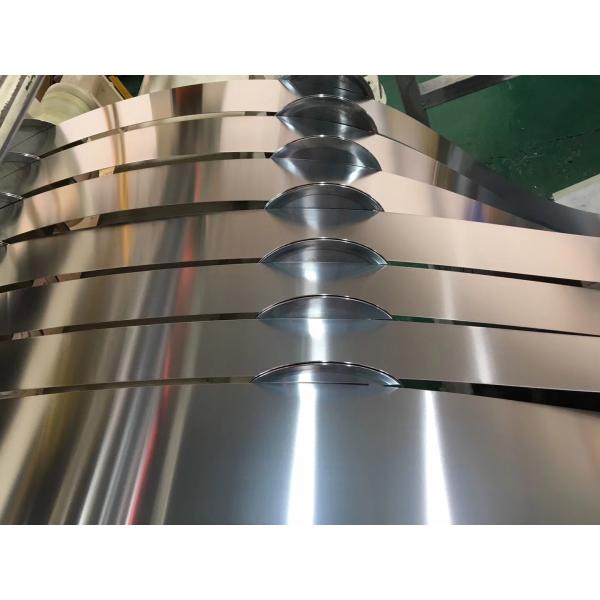

PH13-8Mo ASTM XM-13 Cold Rolled Stainless Steel Sheet UNS S13800 Strip
PH13-8Mo ASTM XM-13 Cold Rolled Stainless Steel Sheet UNS S13800 Strip
PH13-8Mo ASTM XM-13 Cold Rolled Stainless Steel Sheet UNS S13800 Strip
PH13-8Mo ASTM XM-13 Cold Rolled Stainless Steel Sheet UNS S13800 Strip
Specifications
Brand Name :
Daway
Model Number :
PH13-8Mo UNS S13800 ASTM XM-13
Certification :
SGS
Place of Origin :
China
MOQ :
500 kgs
Price :
negotiable
Payment Terms :
L/C, T/T
Supply Ability :
200 tons per month
Delivery Time :
15 days after receipt 30% of value
Packaging Details :
seaworthy
Precipitation hardening steel :
PH13-8Mo UNS S13800 ASTM XM-13
Product :
UNS S13800 Cold Rolled Stainless Steel Sheet, Strip, Coil
Size range :
0.1~4.0X420mm
Delivery condition :
ANN
Description

PH13-8Mo ASTM XM-13 Cold Rolled Stainless Steel Sheet UNS S13800 Strip

PH13-8 alloy (UNS S13800) is a martensitic precipitation-hardening stainless steel that

has excellent strength,high hardness, superior toughness, and good corrosion resistance.

Grade C Si Mn P S Cr Ni Mo Al
PH13-8Mo 0.05 0.10 0.20 0.010 0.008 12.25~13.25 7.5~8.5 2.00~2.50 0.9~1.35

Good transverse toughness properties are achieved by tight chemical composition control,

low carbon content,and vacuum melting.

The strengthening mechanism (precipitation hardening in a martensitic matrix) makes

it possible to achieve uniform strengthening in heavy sections.

Strength and ductility levels can be tailored to the application by varying the aging temperature.

Typical applications are large airframe structural components, injection molding equipment

and slide gates to control water flow.


The S13800 alloy is martensitic in structure in the solution annealed condition and is further strengthened

by a relatively low temperature heat treatment, which precipitates a strengthening phase in the alloy.

Like the S17400 alloy, the S13800 alloy requires only a simple heat treatment,

a one step process conducted at a temperature in the range 950°F (510°C) to 1150°F (620°C)

depending on the combination of strength and toughness desired.

A wide range of properties can be produced by this one step heat treatment.

Heat treatment at about 950°F (510°C) produces the highest strength.

Product forms

We supply PH13-8Mo, UNS S13800 stainless steel sheet, plate, strip and coil

ASTM A693, ASME SA693

For Details, please Contact

WUXI GUANGLU Special Steel Co., Ltd.

Stainless martensitic • precipitation hardening steel • stainless ferritic — Our answer to your needs

Tel: +86 510 81812873

Email: export@guanglusteel.com

PH13-8Mo ASTM XM-13 Cold Rolled Stainless Steel Sheet UNS S13800 Strip
