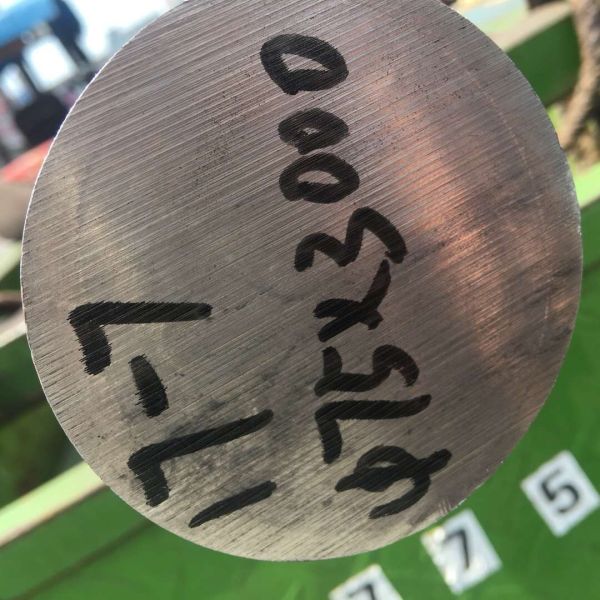

JIS SUS631 17-7PH EN 1.4568 Stainless Steel Wires Round Bars
JIS SUS631 17-7PH EN 1.4568 Stainless Steel Wires Round Bars
JIS SUS631 17-7PH EN 1.4568 Stainless Steel Wires Round Bars
JIS SUS631 17-7PH EN 1.4568 Stainless Steel Wires Round Bars
JIS SUS631 17-7PH EN 1.4568 Stainless Steel Wires Round Bars
JIS SUS631 17-7PH EN 1.4568 Stainless Steel Wires Round Bars
Specifications
Dia :
0.3~130mm, others on request
Surface :
black, bright, peeled, polished, ground
Product :
JIS SUS631 17-7PH EN 1.4568 Stainless Steel Wire Round Bar
Delivery state :
solution treatment, aged
Brand Name :
Daway
Model Number :
JIS SUS631 17-7PH EN 1.4568
Certification :
SGS
Place of Origin :
China
MOQ :
1 ton
Price :
negotiable
Payment Terms :
L/C, T/T
Supply Ability :
200 tons per month
Delivery Time :
15 days after receipt 30% of value
Packaging Details :
seaworthy
Description

JIS SUS631 17-7PH EN 1.4568 Stainless Steel Wires Round Bars

17-7 PH is a precipitation hardening semi-austenitic stainless steel. It is able to develop a very high strength

due to the strengthening of aluminium particles. It is usually found in strip or wire form for spring applications.

AISI, UNS EN, DIN JIS GB

17-7PH

S17700

1.4568

X7CrNiAl17-7

 SUS631

0Cr17Ni7Al

07Cr17Ni7Al

17-7PH stainless grade combines the following characteristics:

  • Good corrosion resistance better than 17-4 PH close to that of 304
  • Very high strength up to 1700 MPa minimum UTS in EN 10151 or 1655 MPa minimum in ASTM A693
  • Excellent fatigue strength
  • Low distortion in heat treatment
  • Weldable with matching consumables


17-7 PH provides a combination of very high strength and moderate corrosion resistance.

Its metallurgy is complex involving several stages of processing to develop the necessary microstructure.

The highest level of strength is achieved by cold working to produce martensite followed by an ageing treatment

at about 480°C. This restricts the use of the grade to thin sheet and wire products.

Other heat treatment conditions are also available to produce softer and more ductile material.

Applications which illustrate these features include:

Springs, Belleville washers, aerospace, orthodontic wire, strain gauge, load cell, pressure transducer.

Product range

17-7PH stainless steel sheet, plate, strip and coil, round bar and drawn wire

For Details, please Contact

WUXI GUANGLU Special Steel Co., Ltd.

Stainless martensitic • precipitation hardening steel • stainless ferritic — Our answer to your needs
