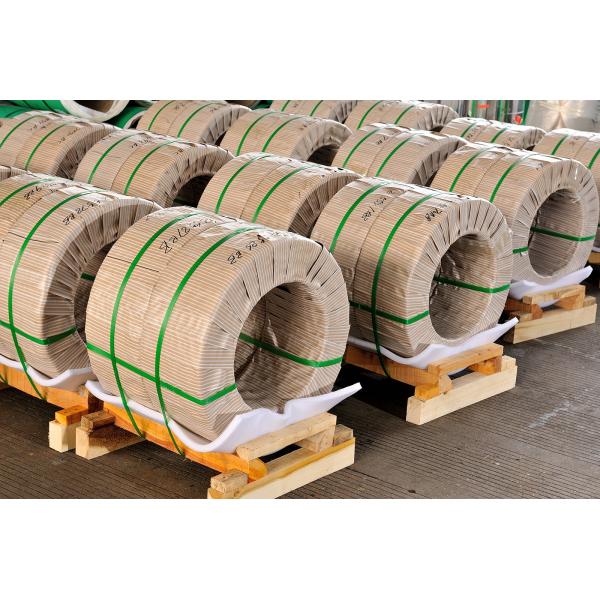

SUS632 Cold Rolled Stainless Steel Strip PH15-7Mo Stainless Steel Coil
SUS632 Cold Rolled Stainless Steel Strip PH15-7Mo Stainless Steel Coil
SUS632 Cold Rolled Stainless Steel Strip PH15-7Mo Stainless Steel Coil
SUS632 Cold Rolled Stainless Steel Strip PH15-7Mo Stainless Steel Coil
Specifications
Brand Name :
Daway
Model Number :
632, UNS S15700, PH15-7Mo
Certification :
SGS
Place of Origin :
China
MOQ :
500 kgs
Price :
negotiable
Payment Terms :
L/C, T/T
Supply Ability :
200 tons per month
Delivery Time :
15 days after receipt 30% of value
Packaging Details :
Seaworthy
Type :
Semi-austenitic precipitation-hardening stainless steel
PH grade :
632, UNS S15700, PH15-7Mo
Product :
PH15-7Mo stainless steel sheet and strip
Size :
0.1~10.0X420mm
Delivery state :
Condition A, C
Specification :
ASTM A693, AMS 5520
Description

SUS632 Cold Rolled Stainless Steel Strip PH15-7Mo Stainless Steel Coil

Precipitation hardening stainless steel SUS632, PH15-7Mo

with high strength and hardness, good corrosion resistance, and satisfactory formability.

PH15-7Mo stainless alloy is particularly beneficial for a wide range of applications that

include retaining rings, springs, diaphragms, aircraft bulkheads, welded and brazed honeycomb

paneling and other aircraft components requiring high strength at elevated temperatures.

Chemical composition % weight

C Si Mn P S Cr Ni Mo Al
0.09 max. 1.00 max. 1.00 max. 0.040 max. 0.040 max. 14.00~16.00 6.50~7.75 2.00~3.00 0.75~1.50

Heat treatment

PH 15-7Mo Stainless Steel requires three essential steps in heat treating:

  • 1) austenite conditioning,
  • 2) cooling to transform the austenite to martensite
  • and 3) precipitation hardening.


The material normally is supplied from the mill in Condition A.

After fabrication, an austenite conditioning treatment is followed by a transformation treatment to

either Condition T or Condition R 100. Then the material is precipitation
hardened to either Condition TH 1050 or Condition RH 950 to develop fully useable properties.
To obtain the highest mechanical properties in this alloy, Condition A material is transformed to

martensite at the mill by cold reduction to Condition C.

After fabrication by the user, hardening to Condition CH 900 is accomplished with a single low-temperature heat treatment.

Specifications

AMS 5520 Sheet, Strip and Plate
ASTM A 693 Plate, Sheet and Strip (Listed as Grade 632-UNS S15700)

For Details, please Contact

WUXI GUANGLU Special Steel Co., Ltd.

Stainless martensitic • precipitation hardening steel • stainless ferritic — Our answer to your needs

Tel: +86 510 81812873

Email: export@guanglusteel.com
