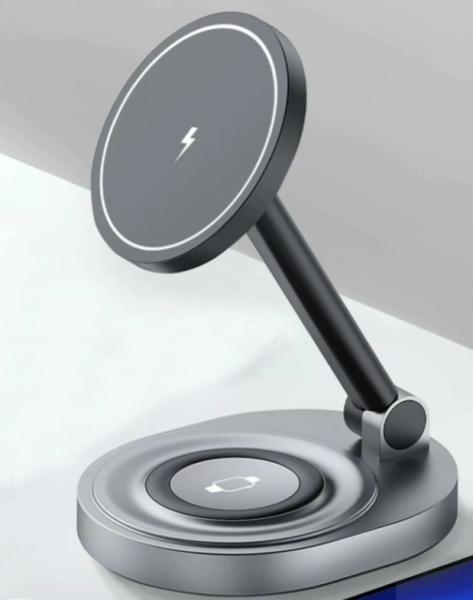

Wireless Charging Solution 3C Digital Circuit Board Custom
Wireless Charging Solution 3C Digital Circuit Board Custom
Specifications
QI standard support :
Supports QI standard protocol V1.2.4
Fast charge support :
Supports QC2.0 fast charge protocol
Fast charging compatibility :
Compatible with 5W, Apple 7.5W, Samsung 10W, and 15W fast charging
Certification schemes :
Suitable for BPP and EPP certification schemes
IO port support :
Supports IO port PWM direct push H bridge MOS
Description

Wireless charging solution

Description

In response to the application requirements of wireless charging systems, Golden Triangle Group has introduced two MCU solutions that are suitable for non-certified and certified versions to effectively simplify peripheral circuits and improve product compatibility. The non-certified version has simple circuit and high cost performance. The certified version of the program has high reliability, high stability and compatibility, and supports multiple power output modes.

Certified version of wireless charging design:

> Support QI standard protocol V1.2.4

> Support QC2.0 fast charge protocol

> Compatible with 5W, Apple 7.5W, Samsung 10W and 15W fast charging

> Suitable for BPP and EPP certification schemes

Attribute Attribute Value
QI standard support Supports QI standard protocol V1.2.4
Fast charge support Supports QC2.0 fast charge protocol
Fast charging compatibility Compatible with 5W, Apple 7.5W, Samsung 10W, and 15W fast charging
Certification schemes Suitable for BPP and EPP certification schemes

Non-certified version wireless charging design scheme:

> Support QI standard protocol V1.2.4

> Support IO port PWM direct push H bridge MOS

Attribute Attribute Value
QI standard support Supports QI standard protocol V1.2.4
IO port support Supports IO port PWM direct push H bridge MOS

System diagram

Wireless Charging Solution 3C Digital Circuit Board Custom
