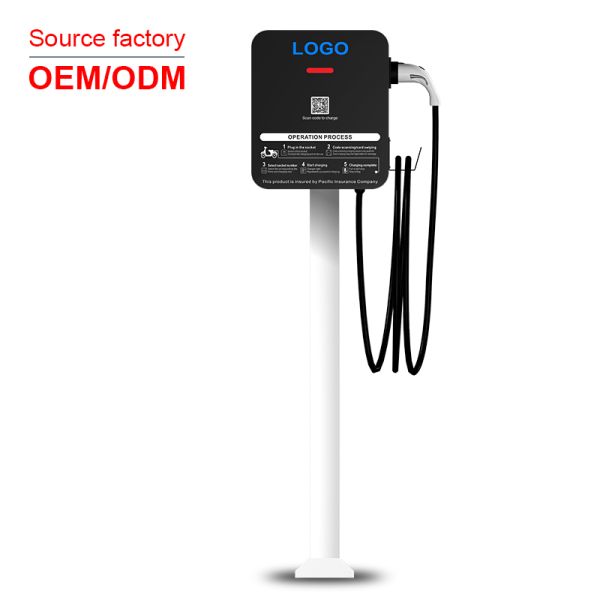

4KW Ultra Fast Charging Station EV Charger For Two Wheeler Tuk Tuk Single Channel
4KW Ultra Fast Charging Station EV Charger For Two Wheeler Tuk Tuk Single Channel
4KW Ultra Fast Charging Station EV Charger For Two Wheeler Tuk Tuk Single Channel
4KW Ultra Fast Charging Station EV Charger For Two Wheeler Tuk Tuk Single Channel
4KW Ultra Fast Charging Station EV Charger For Two Wheeler Tuk Tuk Single Channel
4KW Ultra Fast Charging Station EV Charger For Two Wheeler Tuk Tuk Single Channel
4KW Ultra Fast Charging Station EV Charger For Two Wheeler Tuk Tuk Single Channel
4KW Ultra Fast Charging Station EV Charger For Two Wheeler Tuk Tuk Single Channel
Specifications
Total output power :
4KW
Single output power :
4KW
Output voltage range (DC) :
30V-100V
Single maximum output current range :
65A
Display :
7-inch Industrial Touch Screen
Input voltage frequency :
50HZ ±1HZ
Size :
L460*W200*H1600mm
Brand Name :
GT
Model Number :
C05
Place of Origin :
Guangdong, China
MOQ :
1-50 sets
Price :
450-600usd/set
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
10000/month
Delivery Time :
20-30 days
Packaging Details :
Fumigation-Free Wooden Box
Description
Hige Power Charging Pile For Electric Tuk Tuk 4KW Single channel Fast Charging Solution
The power swap cabinet is a power swap system specially designed for electric low-speed vehicles (such as electric tricycles, electric motorcycles, electric low-speed four-wheelers, etc.). The system allows users to quickly replace a depleted battery with a fully charged one without having to wait for a lengthy charging process.
Product parameters
Number of equipment output channels Single Connector(4KW)
Input voltage range Single-Phase Electricity AC 220V±20%
Input voltage frequency 50HZ ±1HZ
Total output power 4KW
Single output power 4KW
Output voltage range (DC) 30V-100V
Single maximum output current range 65A
Battery BMS communication CAN/RS485
How to use Scan Code/Card Swipe
Communication method 4G
Display 7-inch Industrial Touch Screen
Cooling method Temperature Controlled Air Cooling
Temperature control Have
Battery BMS monitoring Have
Battery abnormal warning Have
Charging connector One* 3m
Protection Overload, Overvoltage, Undervoltage, Overcurrent,
Leakage, Water Immersion, Lightning Protection, Etc
Material and craftsmanship Thickened Cold-rolled Steel Plate
Appearance and craftsmanship Electrostatic Spraying
Protection level Dustproof And Waterproof Ip53/Ip54
Charging port GB/T 20234.2-2015

Features
Quick battery replacement: Designed to achieve quick battery replacement, greatly shortening the user's waiting time.
Intelligent management: Built-in intelligent management system can monitor the status of each battery, including remaining power, health status, etc., ensure charging safety, and automatically sort and distribute batteries.
Safe and reliable: Multiple safety mechanisms are adopted to ensure the safety of personnel and equipment during battery replacement and prevent overcharge, short circuit and other problems.
Easy to operate: Usually equipped with a touch screen or mobile phone application to guide users to simple and intuitive operations.
Energy saving and environmental protection: Helps reduce the power waste caused by battery charging while extending battery life.
Network connection: Supports networking function, which can remotely monitor and manage the situation of each battery swap station.
4KW Ultra Fast Charging Station EV Charger For Two Wheeler Tuk Tuk Single Channel4KW Ultra Fast Charging Station EV Charger For Two Wheeler Tuk Tuk Single Channel4KW Ultra Fast Charging Station EV Charger For Two Wheeler Tuk Tuk Single Channel4KW Ultra Fast Charging Station EV Charger For Two Wheeler Tuk Tuk Single Channel4KW Ultra Fast Charging Station EV Charger For Two Wheeler Tuk Tuk Single Channel4KW Ultra Fast Charging Station EV Charger For Two Wheeler Tuk Tuk Single Channel4KW Ultra Fast Charging Station EV Charger For Two Wheeler Tuk Tuk Single Channel
