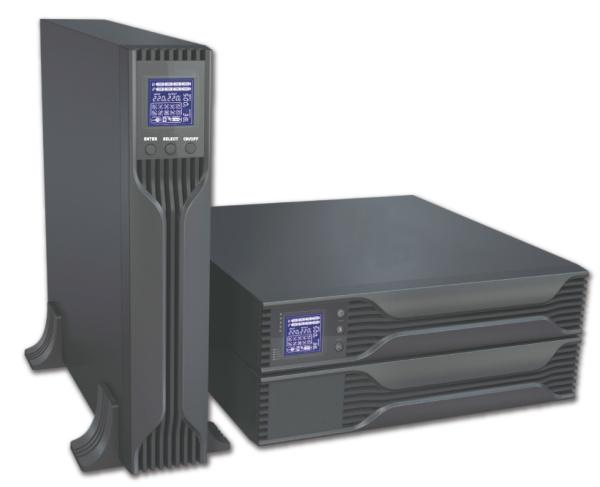

RTL Series 1KVA-5KVA Line-interactive Pure Sine Wave UPS

• Description of Modular Online UPS

• Pure Sine Wave Line-interactive UPS Power Supply Systems, 5kVA/3000W, Powerful Charging Pure Sine Wave UPS, 1000VA/ 1500VA/ 2000VA/ 3000VA/ 5000VA UPS

Specification of G Tech UPS​

• Capacity	1000VA/700W		1500VA/1050W		2000VA/1400W		3000VA/2100W		5000VA/3500W
  Display	LCD Display
  AC mode
  Input Voltage	145-275VAC
  Input Frequency	45-65Hz
  Output Voltage	200-240VAC
  Inverter mode
  Output Voltage	220VAC±5%
  Output Frequency	50±0.5% ; 60±0.5%
  Power Factor	0.7
  Output Wave Form	Pure Sine Wave
  Transfer time	Typical 2-6ms; 10ms MAX
  Overload	If 110%, then shut down within 60sec; If 120%, then shut down within 50sec.
  Over current protection	System shut down automatically within 20ms
  Battery type
  Type	Sealed maintenance-free lead-acid batteries
  DC Voltage	DC 24V (2group of parallel)				DC 48V (2group of parallel)				DC 48V (3group of parallel)
  Standard Configuration	Built in : 12V/7Ah*4	--------	Built in :12V/9Ah*4	---	Battery park: P12V/7Ah*8	----	Battery park: P12V/9Ah*8	---	Battery park: P12V/9Ah*12	---
  External DC Voltage	-----------	24vdc	-----------	24vdc	-----------	48vdc	-----------	48vdc	-----------	48vdc
  Physical characteristics
  Weight (N.W.)Kg	23.6	16.5	26.8	18.6	19.8	21.6	21.5	23.5	28.4	30.6
  Dimension(mm)	441*445*88								441*445*132

•

•

Our Service:

1% spares together with shipment for urgent issue.

All of the necessary documents such as drawing, manual etc.

We will provide the online service by mail
