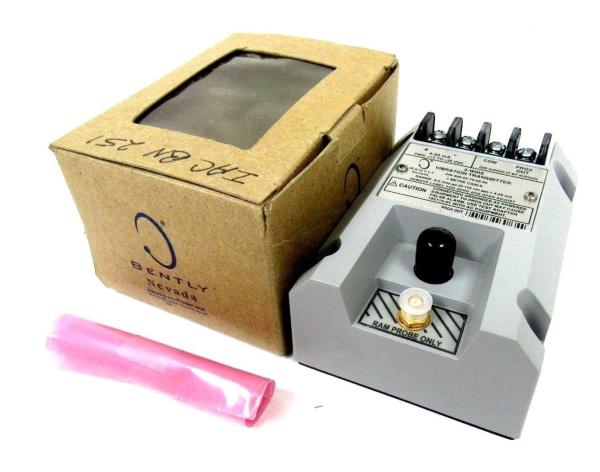

990-05-70-02-00 Bently Nevada Vibration Transmitter 4-20mA OEM
990-05-70-02-00 Bently Nevada Vibration Transmitter 4-20mA OEM
990-05-70-02-00 Bently Nevada Vibration Transmitter 4-20mA OEM
990-05-70-02-00 Bently Nevada Vibration Transmitter 4-20mA OEM
990-05-70-02-00 Bently Nevada Vibration Transmitter 4-20mA OEM
990-05-70-02-00 Bently Nevada Vibration Transmitter 4-20mA OEM
990-05-70-02-00 Bently Nevada Vibration Transmitter 4-20mA OEM
990-05-70-02-00 Bently Nevada Vibration Transmitter 4-20mA OEM
Specifications
Brand Name :
Bently Nevada
Model Number :
990-05-70-02-00
Place of Origin :
U.S.A.
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
100+pc+on stock
Delivery Time :
on request
Packaging Details :
carton
Manufacturer :
Bently Nevada
Part Number :
990-05-70-02-00
Model Type :
Vibration Transmitter
Country of Origin :
U.S.A.
Full-scale Option :
05 = 0-5 mils pp (0-125 µm pp)
System Length Option :
50 = 5.0 metres (16.4 feet)
Operating Temperature :
-35 C to +85 C (-31 F to +185 F)
Shipping weight :
1.5 Kg
Description

Bently Nevada 990-05-70-02-00 Vibration Transmitter

Quick Detail of Vibration Transmitter

Estimated Lead Time : 12 - 16 weeks.
Manufacturer : Bently Nevada
Product No. : 990-05-50-02-00
Product type : 990 Vibration Transmitter
Country of Origin: U.S.A
Can add on Certificate Of Origin (COO)
Full-scale Option : 05 = 0-5 mils pp (0-125 µm pp)
System Length Option : 50 = 5.0 metres (16.4 feet)
Mounting Option : 02 = Bulkhead screws
Agency Approval Option : 00 = Not required
Input : Accepts 1 non-contacting 3300 NSv Proximity Probe and extension cable.
Power : Requires +12 to +35 Vdc input at the transmitter terminal.
Operating Temperature : -35 C to +85 C (-31 F to +185 F)
Storage Temperature : -51 C to +100 C (-60 F to +212 F)
Shipping weight : 1.5 Kg

Description of Vibration Transmitter

The 990 Vibration Transmitter is intended primarily for the original equipment manufacturers (OEMs) of centrifugal air compressors or small pumps, motors, or fans who prefer to provide a simple 4 to 20 mA proportional vibration signal as the input to their machinery control system. The transmitter is a 2-wire, looppowered device that accepts input from our 3300 NSv* proximity probe and its matching extension cable (available in 5 m and 7 m system length options).

Specification of Vibration Transmitter

Input Accepts 1 non-contacting 3300 NSv Proximity Probe and extension cable
Power Requires +12 to +35 Vdc input at the transmitter terminal.

4 to 20 mA Signal

Output

 4 to 20 mAdc over specified full-scale range in 2-wire configuration.

4 to 20 mA Loop

Accuracy

 Within ±1.5% over specified full-scale range. Accuracy is rated from the TEST signal input to the voltage measured across a 250 loop resistance.
Probe Gap Probe must be gapped between 0.5 and 1.75 mm (20 and 55 mils) from target to ensure full scale range.

Maximum Loop

Resistance

 1,000 including cable at 35 Vdc.
Current Limiting 23 mA typical.
Zero and Span Non-interacting external adjustments.

NOT OK/Signal

Defeat

 Signal output will go to less than 3.6 mA within 100 µs after a Not OK condition occurs. Signal output is restored within 2-3 seconds after the Not OK condition is removed.
Power-up Inhibit Signal output stays at less than 3.6 mA (NOT O.K.) for 2 to 3 seconds after power is applied. The purpose is to signal that the device is not yet ready. Transients may be observed when device goes O.K.

Proximitor Sensor

Output

 Compatible with ungrounded, portable test equipment. When using grounded, ac-powered test equipment, use the 122115-01 Test Adapter for signal isolation.
Output Impedance Prox Out has a 10 kW output impedance calibrated for a 10 M load.

Prox Out Linear

Range

 1.4 mm (55 mils). Begins at approximately 0.25 mm (10 mils) from target surface.

Prox Out

Incremental Scale

Factor

7.87 mV/µm (200 mV/mil) ± 6.5% typical including interchangeability errors when measured in increments of 0.25 mm (10 mils) over the linear range using a flat 30 mm (1.2 inch)

target. Worst case 7.87 mV/µm ± 10%. Typical Noise Level: 50 mV/pp.
Temperature Stability Incremental scale factor remains within ±10% of 7.87 mV/µm (200 mV/mil) from 0 C to +70 C (+32 F to +158 F).

Feature of Vibration Transmitter

Integrated Proximitor Sensor Requires no External Unit

Non-Isolated PROX OUT and COM Terminals Plus a Coaxial Connector

Non-Interacting Zero and Span Potentiometers

Test Input Pin for Quick Verification of Loop Signal Output

Not OK/Signal Defeat Circuit Prevents High Outputs or False Alarms

Potted Construction for High Humidity Environments (Up to 100% Condensing)

990-05-70-02-00 Bently Nevada Vibration Transmitter 4-20mA OEM990-05-70-02-00 Bently Nevada Vibration Transmitter 4-20mA OEM990-05-70-02-00 Bently Nevada Vibration Transmitter 4-20mA OEM990-05-70-02-00 Bently Nevada Vibration Transmitter 4-20mA OEM

Advantage of Our Team

  • Best possible prices and delivery time
  • Long time experience in the field
  • Well trained staff
  • Own warehouse facilities
  • Best relationships with branch office of manufacture
  • Flexible and individual service for you
  • Cheap and safe forwarder for shipments (air)

Our Advantage:

Best possible prices and delivery time

Long time experience in the field

Well trained staff

Own warehouse facilities

Best relationships with branch office of manufacture

Flexible and individual service for you

Cheap and safe forwarder for shipments (air)

Frequently Asked Questions:

Q: Does your goods are new and original?

A: Yes, they are new and original.

Q: How long warranty?

A: One-year warranty.

Q: Does any certificates can be provided?

A: Yes, it depends on what product you request, please check details with our sales.

Q: Varied payment methods.

A: We adopt T/T, alipay and paypal and Currency in EURO,USD,RMB

Q: SHIPPING:

A: We can shipping all over the world.via DHL,UPS,Fedex,TNT and IPS,PDE,BRE,KARAPOST etc.

Our Product Range:

Transmitter, Safety barries, Flow meters, Probe, Sensor, Transducer. Valves,Analysis meter, Positioner, Acuator, etc.
