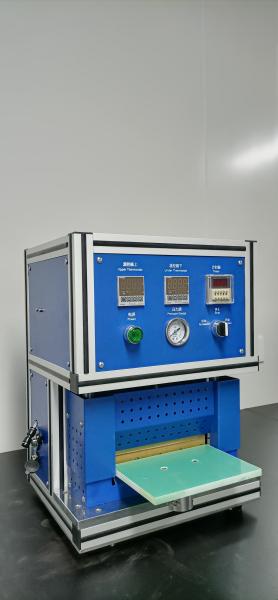

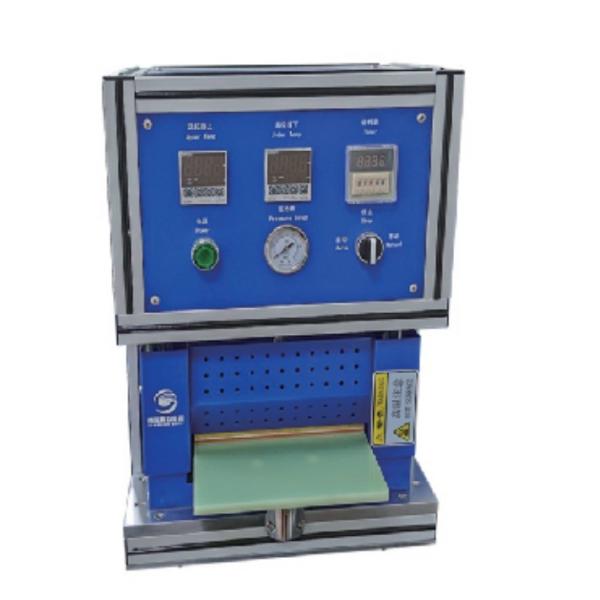

200mm Top Side Sealing Machine For Pouch Cell Battery Lab Film
200mm Top Side Sealing Machine For Pouch Cell Battery Lab Film
200mm Top Side Sealing Machine For Pouch Cell Battery Lab Film
200mm Top Side Sealing Machine For Pouch Cell Battery Lab Film
200mm Top Side Sealing Machine For Pouch Cell Battery Lab Film
200mm Top Side Sealing Machine For Pouch Cell Battery Lab Film
Specifications
Place of Origin :
China
Brand Name :
GERUISI
Model Number :
GRS-DCF200
Seal width :
Standard 3.2mm (can be customized)
Electrode size :
Side seal ≤ 200mm Top seal ≤ 200mm (including air bag) (can be customized according to demand)
Edge sealing thickness :
0.15-0.3mm
Heat sealing pressure :
0.5~0.7MPa adjustable
Applicable specifications :
Side seal ≤ 200mm Top seal ≤ 200mm (including air bag) (can be customized according to demand)
sealing temperature :
Standard 180 ℃
Sealing time :
Standard 25～35(0-99s adjustable)
Description
Product Description
It is mainly suitable for packaging the top and side sides of flexible packaging lithium batteries. The heat is transferred to the head (copper) through a heating tube, and the heat conduction effect is applied to the aluminum plastic film of the lithium battery. Under a certain pressure, the film is heated and softened to approach the melting state to complete pressure bonding and fusion..
Features:
1.The temperature of the head can be adjusted and maintained at a constant temperature through temperature sensing thermocouples and temperature controllers;
2.The sealing edge is firm, the sealing mark is flat and uniform, and the packaging appearance is beautiful. The top and side seals are achieved without changing the mold;
3.Embedded pressure gauge. Can observe and accurately control the size of packaging pressure;
4.Unique safety protection and scald prevention design, saving more than 50% energy compared to similar products.
Specification
Head length
≤200mm
Seal width
Standard 3.2mm(can be customized according to demand)
Edge sealing thickness
0.15-0.3mm
Applicable specifications
Side seal ≤ 200mm Top seal ≤ 200mm (including air bag) (can be customized according to demand)
Upper mold soft sealing temperature
Standard 180 ℃ (but there may be differences due to different quality of aluminum plastic film)
Lower mold temperature
Standard 180 ℃ (but there may be differences due to different quality of aluminum plastic film)
Heat sealing pressure
0.5~0.7MPa adjustable
Sealing time
 Standard 25～35(0-99s adjustable)
Working speed under air compressor
2400 adjustable
Voltage
AC220V/50Hz
Power
About 0.6KW
Size
L320x W320x H500mm
Weight
30KG
