Specifications
Place of Origin :
China
Power(KW) :
0.1
Press :
3T
Compressed air :
0.5MPa～0.7MPa
Applicate cell size :
MaxL200mm W150 mm(customizable upon request)
Description
Product Description

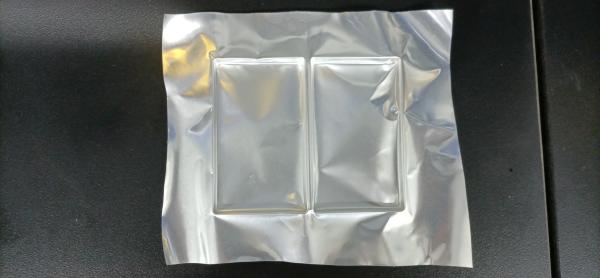

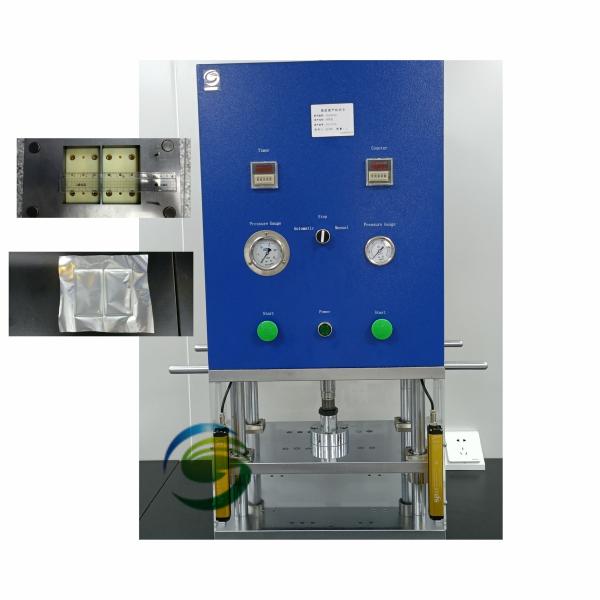

The semi-automatic aluminum plastic film forming machine is suitable for manual punching and molding of aluminum plastic film for soft packaging lithium batteries. The equipment utilizes the principle of a pressurized cylinder to achieve the pressure required for stamping forming, converting the smaller air source pressure into a larger hydraulic output, thereby driving the mold to punch the aluminum plastic film into a shell.
Features:
1.Adjusting the stretch depth is simple and fast. Convenient and fast mold replacement;
2.Adopt four guide pillar structure, smooth sliding up and down, high accuracy;
3.Compared with similar products, aluminum plastic films of the same quality stretch deeper and more stable;
4.After molding, the corners and surrounding areas of the product are free of crow's feet and collapsed corners;
5.Adopt light curtain, double button operation and outer cover protection for safe use;
6.Easy to operate, safe and reliable, beautiful appearance, small size
Specification
Applicable specifications
MaxL200mm W150 mm(customizable upon request)
Booster cylinder
3T
Counting method
Counter display
Voltage
AC220V/50Hz
Power
10W
Compressed air
0.5MPa～0.7MPa
Weight
About120kg
Size
LxWXH≈460x320x925mm

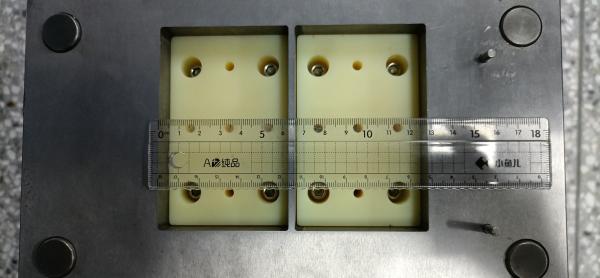

Mold/core roughness
0.4
Flatness of upper and lower molds
0.02 mm
Mold core flatness
0.02 mm

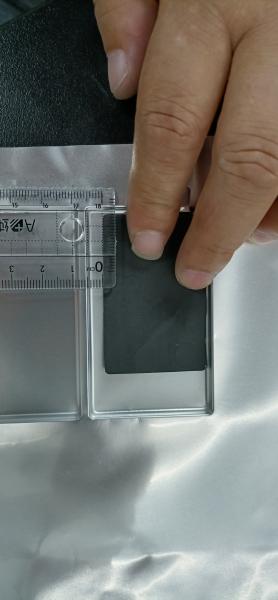

The depth of the scouring pit is Max6MM,
which is related to the tensile strength and the quality of the aluminum plastic film
