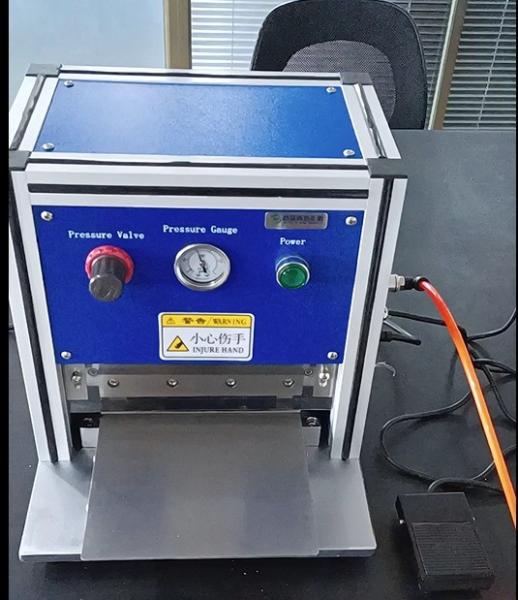

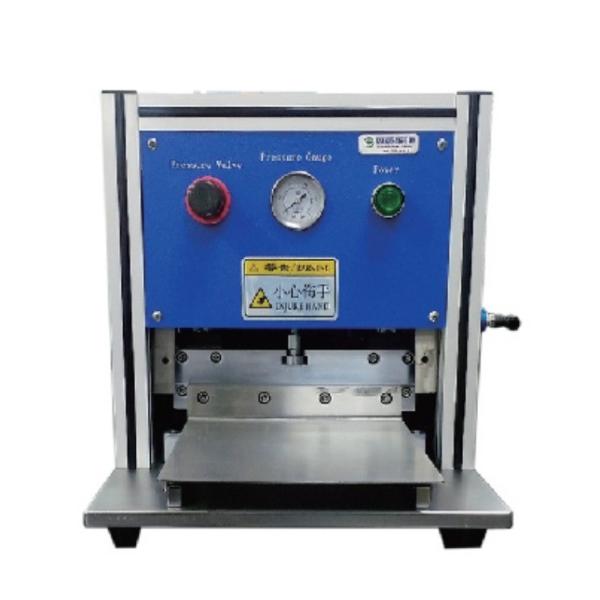

Laboratory Pneumatic Pouch cell battery edge cut Trimming Battery Plate Cutting Machine For Batteries Trimming
Laboratory Pneumatic Pouch cell battery edge cut Trimming Battery Plate Cutting Machine For Batteries Trimming
Laboratory Pneumatic Pouch cell battery edge cut Trimming Battery Plate Cutting Machine For Batteries Trimming
Laboratory Pneumatic Pouch cell battery edge cut Trimming Battery Plate Cutting Machine For Batteries Trimming
Laboratory Pneumatic Pouch cell battery edge cut Trimming Battery Plate Cutting Machine For Batteries Trimming
Laboratory Pneumatic Pouch cell battery edge cut Trimming Battery Plate Cutting Machine For Batteries Trimming
Specifications
Brand Name :
GERUISI
Model Number :
GRS-QP200
Payment Terms :
T/T, Western Union
Cutting blade length: :
200mm
Edge width: :
2-10mm with adjustable edge margin;
Blade life: :
10 million times/grinding
Speed: :
compressed air 600 times/hour
Compressed air source: :
0.5Mpa~0.7Mpa
Used for :
Pouch cell battery edge cut Trimming
Description
Product Description
It is mainly suitable for cutting Trimming and forming aluminum-plastic film edges for pouch cell lithium batteries, and can also be used for cutting other soft materials.

Main features:
*Adopting the upper silver linear sliding rail group for guidance, the guiding accuracy is extremely high to ensure zero gap between the upper and lower cutting blades and long service life;
*The upper and lower cutting blades are made of high-speed steel, with sharp edges;
*Embedded pressure gauge, capable of observing and accurately controlling the magnitude of edge cutting pressure;
*The cylinder controlled cutter is used to cut the edges of the battery seal, which is easy to achieve automation and the cutting width can be adjusted;
*The cutting pressure and speed can be set and adjusted;
*Set up product positioning trays to facilitate the positioning and placement of batteries;
*Using a foot operated switch, reliable, convenient, and fast;
*The rack is assembled with profiles and baked paint sealing plates, and the equipment structure is simple, compact, and the appearance is exquisite and beautiful.
Specification
*Cutting blade length: 200mm;
*Edge width: 2-10mm with adjustable edge margin;
*Blade life: 10 million times/grinding;
*Speed: compressed air 600 times/hour;
*Power supply: AC220V/50Hz;
*Compressed air source: 0.5Mpa~0.7Mpa;
*Power: 100W;
*Dimensions: L320 * W180 * H340mm;
*Equipment weight: 35Kg
