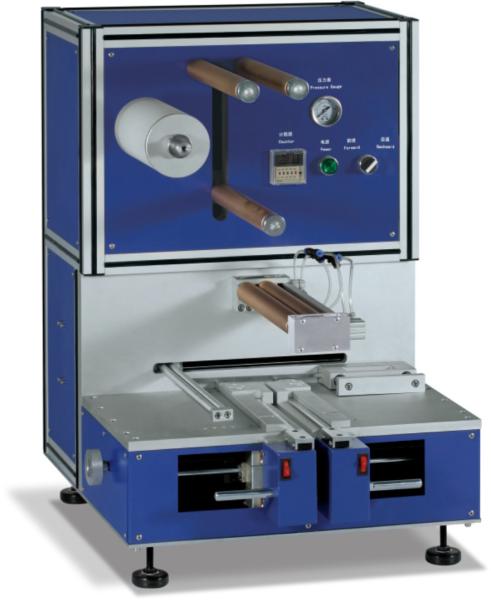

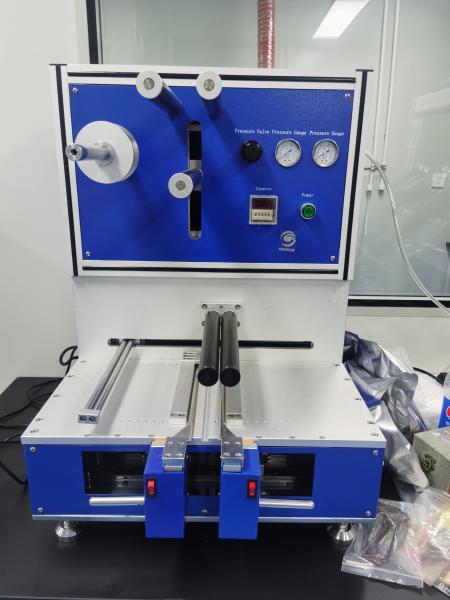

Semi Automatic Battery Electrode Stacking Machine Lamination Z Shape
Semi Automatic Battery Electrode Stacking Machine Lamination Z Shape
Semi Automatic Battery Electrode Stacking Machine Lamination Z Shape
Semi Automatic Battery Electrode Stacking Machine Lamination Z Shape
Specifications
Place of Origin :
China
Brand Name :
GERUISI
Payment Terms :
T/T, Western Union
Lamination/Stacking size :
Min. L44mm * W44mm
Diaphragm roll diameter :
Max. 220mm
used for :
pouch cell battery
Lamination/ Stacking viscosity :
The uniformity is better than ± 0.5mm
Description
Specification
Stacking viscosity
The uniformity is better than ± 0.5mm
Lamination/Stacking size
(including Electrode Tab length)
Min. L44mm * W44mm (If it is small, it needs to replace the pressing plate) Max. L200mm * W150mm (the Electrode Tab is on the long
side)
Laminate/Stacking thickness
Max.12mm (if thicker, the adjusting plate needs to be replaced)
Diaphragm roll diameter
Max. 220mm
Installation dimensions
L512mm*W820mm*H580mm
Weight
About 50Kg
Voltage
Voltage single-phase 220VAC ± 10% (110VAC can be customized)
Frequency
50Hz/60Hz
Power
200W
Compressed air
0.4~0.6MPa
Usage environment
Recommended ambient temperature: 25 ± 3 ℃, humidity: 30~90RH, no vibration and electromagnetic interference
Semi Automatic Battery Electrode Stacking Machine Lamination Z Shape
Send your message to this supplier
Send Now

Semi Automatic Battery Electrode Stacking Machine Lamination Z Shape

Ask Latest Price
Product Detail
Place of Origin :
China
Brand Name :
GERUISI
Payment Terms :
T/T, Western Union
Lamination/Stacking size :
Min. L44mm * W44mm
Diaphragm roll diameter :
Max. 220mm
used for :
pouch cell battery
