300mm Pouch Cell Z Electrode Stacking Machine Laminating For Battery Lab
300mm Pouch Cell Z Electrode Stacking Machine Laminating For Battery Lab
Specifications
Place of Origin :
China
Brand Name :
GERUISI
Payment Terms :
T/T, Western Union
Dimension(L*W*H) :
L1000mm * W780mm * H750mm
Key Selling Points :
High-accuracy
Lamination size :
Min. L62mm * W46mm
Laminate thickness :
Max.30mm
Diaphragm roll diameter :
Max. 250mm
Description
Products Description

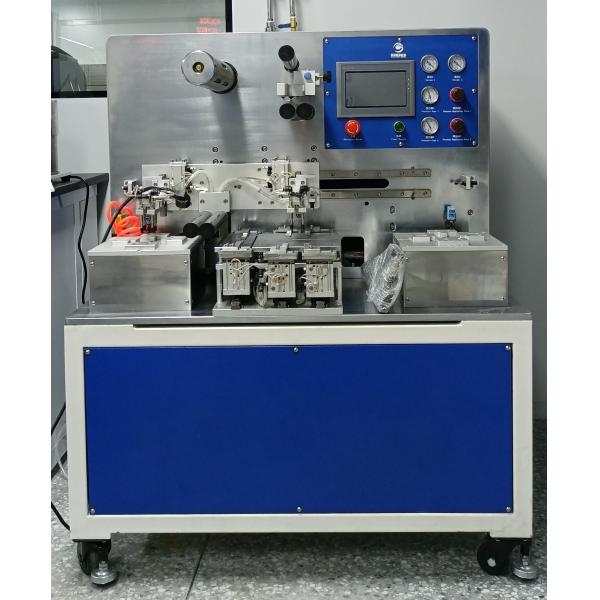

It is mainly used for assembling Z-shaped laminations of positive and negative electrodes of lithium batteries and diaphragms. The equipment realizes manual loading, subsequent pole position correction, and lamination processes using fully automatic methods. It has the characteristics of high registration efficiency and high lamination accuracy. The device is designed to have a maximum thickness of 200 * 200mm cells, and different sizes can be achieved by adjusting the jig. It is very suitable for the research and development of laminated lithium ion batteries and sample production. The equipment adopts a single cantilever structure design, with automatic constant tension control of the coil isolation membrane, and a motor driving the membrane to move left and right to achieve a Z-shaped lamination.
Features:
1.The number of chips can be automatically controlled according to preset settings;
2.PLC control, HMI operation, easy to use and maintain;
3.The isolation film is forcibly guided and the pole piece is mechanically positioned to ensure high lamination accuracy;
lWith a compatibility design, battery size changes can be achieved by adjusting the positioning fixture, with a wide adjustment range;
5.Manual loading of electrode plates, automatic positioning, automatic suction by a manipulator, and automatic stacking;
Specification
Lamination viscosity
The uniformity is better than ± 0.5mm
Lamination range
Battery Min.L62mm *W46mm,Max.L200mm*W200mm
Laminate thickness
Max 30mm
Number of laminations
Max. 500 settable
Number of laminations
Max.250mm
Diaphragm core
3-inch roll core, mechanically clamped
Installation dimensions
L1200mm*W800mm*H900mm
weight
About 500Kg
Voltage
Voltage single-phase AC220V ± 10%, frequency 50Hz/60Hz
Power
1KW
Compressed air
0.5~0.8MPa


300mm Pouch Cell Z Electrode Stacking Machine Laminating For Battery Lab
Pouch cell asssembly line

300mm Pouch Cell Z Electrode Stacking Machine Laminating For Battery Lab
