Specifications
Place of Origin :
China
Certification :
CE
MOQ :
1
Packaging Details :
Carton
Delivery Time :
Peak Season Lead Time: within 15 workdays Off Season Lead Time: within 15 workdays
Payment Terms :
T/T,PayPal
Supply Ability :
5000
Model NO. :
K220+R502-A
Screen :
as Picture
Communication Interface :
RS232
Fingerprint Capacity :
200
Power Supply :
DC 10V--24V
Standby Current :
<10mA
Output :
Relay(Max. Current:10A)
Transport Package :
Standard Export Carton Package
Specification :
Power supply: DC 10V--24V
Trademark :
GROW
Origin :
China
HS Code :
8471609000
Voice Service :
Without Voice Service
Clock :
Without Clock
Color :
as Picture
Samples :
US$ 22.50/Piece 1 Piece(Min.Order) |
Customization :
Available | Customized Request
Shipping Cost :
about shipping cost and estimated delivery time.
Payment Method :
Initial Payment Full Payment
Currency :
US$
Return&refunds :
You can apply for a refund up to 30 days after receipt of the products.
Description

GROW K220+R502-A DC10-24V Two Relay Output With Administrator/User Fingerprint Access Control Board 0.5s-60s-Normally Open Relay

Technical Parameters

·Power supply:DC10V--24V
·Stand-by mode current: <10mA
·Output:Relay(Max. current: 10A)
·Fingerprint capacity:200 pieces
·Relay Time: 0.5s-60s or over 60s - In normally open mode-press finger-relay open,press again-relay closed

Operation Instruction

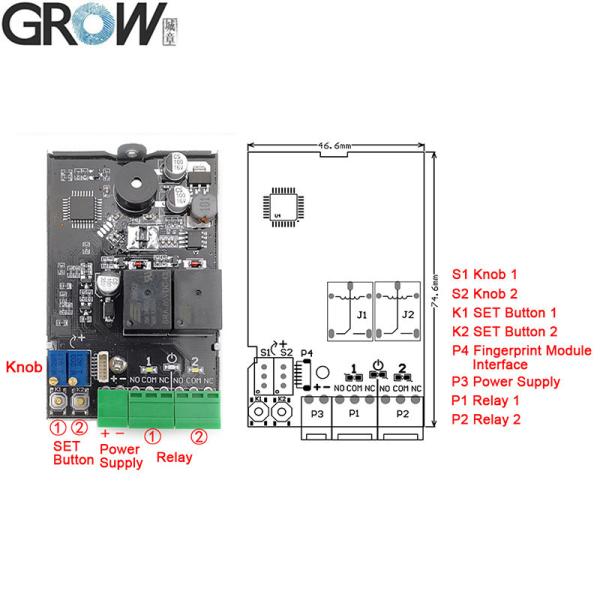

1.SET Button(K1-K2)
1.1 Register Administrator Fingerprint:Press SET button shortly,system in administrator register status and blue indicator light flash fast, put the same finger with multiple times in fingerprint collection area until hearing music means fingerprint register successful. Fingerprint can be registered continuously. If no need for adding fingerprint, waiting a few seconds to exit.

1.2 Delete Fingerprint:
1.2.1 Delete single relay position fingerprints:Long press the corresponding SET button,blue indicator light flash fast,hear long "Di" beep, loosen the finger, the relay indicator light on and hear music, means this location of the admin and user fingerprints are deleted;
1.2.2 Delete all relay position fingerprints(Back to factory default):Long press any SET button to hear long "Di" beep twice, loosen the finger,all indicator light on, means initialization operation successful,back to factory default.

2.Register User Fingerprint:Press the administrator fingerprint about 10 seconds until hear the music and blue indicator light flash fast,means can add user fingerprint. Put the same user finger with multiple times in fingerprint collection area until hearing music means fingerprint register successful. Fingerprint can be registered continuously. If no need for adding fingerprint, waiting a few seconds to exit. (Note:The storage location of the user's fingerprint depends on the storage location of the administrator's fingerprint; If the administrator's fingerprint is stored in No.1 and No.2 at the same time, the user's fingerprint will be stored in No.1 by default.)

3.Delete User Fingerprint:Press the administrator fingerprint about 20 seconds until hear "Di-" and music,means user fingerprints at this location are deleted. (Note:The delete location of the user's fingerprint depends on the storage location of the administrator's fingerprint. If the administrator's fingerprint is stored in No.1 and No.2 at the same time, the user fingerprints in No.1 will be deleted by default.)

4.Set Relay Time:Rotate S1 or S2 to set the closing time of the relay from 0.5 to 60 seconds. When over 60 seconds, it will in the normally open normally closed state,relay operated when fingerprint passed, and then relay released when fingerprint passed again, relay operated and released circularly. The relay is contact output, switch signal, no voltage output.

5.Usage:Press the finger,the relay closes after the fingerprint passes, and the closing time is determined by S1 or S2.


Note:
1. All indicator lights are off in standby state, and the lights are on in working state;
2.If want to close the module indicator light when in the normally open mode, long press any SET button to hear long "Di" beep three times. Repeat this action to open.


K220 can be used together with R502-A,R502-AW,R502-F,R503 fingerprint module

R502-A Specifications

Model R502-A
Type Capacitive Fingerprint Module
Interface UART(TTL)
Resolution 508 DPI
Voltage DC 3.3V
Fingerprint Capacity 200
Sensing array 192*192 pixel
Working current 20mA
Standby current Typical touch standby voltage: 3.3V, Average current: 2uA
Fingerprint module external size Diameter 22 (mm)
Fingerprint module inner size Diameter 19.5 (mm)
Fingerprint module height 5 (mm)
Effective collection area Diameter 15.5 (mm)
Connector SH1.0-6Pin
LED Control YES
LED Color Purple and Blue and Red
Scanning Speed < 0.2 second
Verification Speed < 0.3 second
Matching Method 1:1; 1:N
FRR ≤1%
FAR ≤0.001%
Work environment -20C ---60C
Work Humidity 10-85%
Anti-static capacity 15KV
Abrasive resistance intensity 1 million times
Communications baud rate (UART): (9600 × N) bps where N = 1 ~ 12(default N = 6, ie 57600bps)

Files

·ProvideFree Reference SDK Files for Arduino, Android,.Net,Windows and so on.
·Provide User Manual


K220 Operation Video on Youtube:https://youtu.be/YQXeH9AGbco

If need SDK files,pls contact us.
