Specifications
Place of Origin :
China
Certification :
CE
MOQ :
1
Packaging Details :
Carton
Delivery Time :
Peak Season Lead Time: within 15 workdays Off Season Lead Time: within 15 workdays
Payment Terms :
T/T, PayPal
Supply Ability :
5000
Model NO. :
KL216+R502-AW
Screen :
as Picture
Communication Interface :
RS232
Fingerprint Capacity :
200
Power Supply :
DC 10V--30V
Standby Current :
6mA (DC 12V)
Output :
Relay(Max. Current:10A)
Transport Package :
Standard Export Carton Package
Specification :
Power supply: DC 10V--30V
Trademark :
GROW
Origin :
China
HS Code :
8471609000
Package Size :
13.00cm * 8.00cm * 9.00cm
Package Gross Weight :
0.500kg
Voice Service :
Without Voice Service
Clock :
Without Clock
Color :
as Picture
Customization :
Available | Customized Request
Shipping Cost :
about shipping cost and estimated delivery time.
Payment Method :
Initial Payment Full Payment
Currency :
US$
Return&refunds :
You can apply for a refund up to 30 days after receipt of the products.
Description

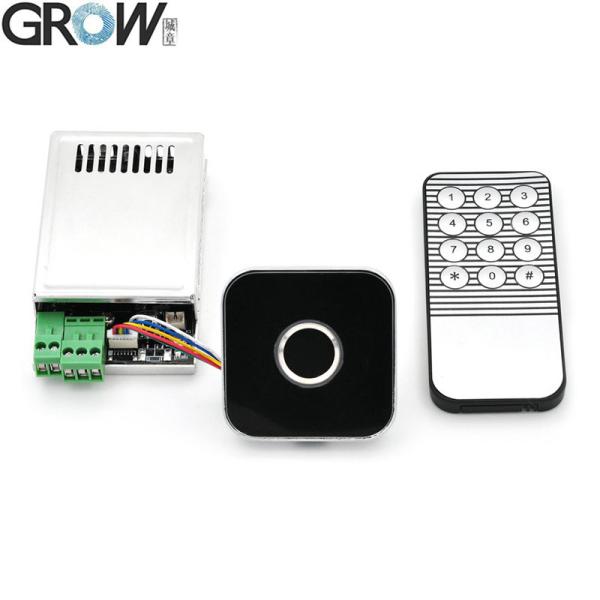

Grow Kl216+R502-AW Round LED Fingerprint Access Control Board

Remote Control Fingerprint Control Board Change Password Scalable

Technical Parameters

DC10-30V, Relay Output, Jog Mode(0.5s-99s)/Ignition Mode/Self-locking Mode.
Managed by SET button or remote control(add/delete fingerprint to different three database,change relay time and so on)
·Power supply:DC10V--30V
·Standby current:<40mA
·Output:Relay(Max. current: 10A)
·Fingerprint capacity:200 pieces
·Relay Function:Jog Mode(0.5s-99s)/Ignition Mode/Self-locking Mode

Operation Instruction

1. SET Button:
1.1 Press SET button shortly,system in register state and indicator light flash fast, press multiple times for each fingerprint, fingerprint register successful when hearing music.
Fingerprint can be registered continuously when system in register state; if no need adding fingerprint more, waiting a few seconds.(By default, it will be saved in fingerprint database 1,when the current database is full, it is automatically saved to the next database.)
1.2 When back to factory default, press SET button until hear "Di" long beep and
music,means initialization operation successful
2. Remote Control:
When using remote control, pls touch the module to wake up first.
2.1 Blue indicator lighted means in programming stated, music means operation successful
Default password: 123456, password length: 6 numbers
2.2 Change password: Press *password*1*new password*new password#
2.3 Register fingerprint: Press *password*2*Database(1-5)# ,Exit fingerprint in register state when press * button or waiting a few seconds.
E.g.: Register in Database 3: Press *password*2*3#
2.4. Delete Fingerprint: Press *password*3*Database(1-5)#
E.g.: Delete in Database 3: Press *password*3*3#
2.5. Relay Time Setting in jog mode: Press *password*4*Time(0.5s-99s)#
E.g.: Set 0.5s: Press *password*4*00#
E.g.: Set 1s: Press *password*4*01#
E.g.: Set 5s: Press *password*4*05#
E.g.: Set 99s: Press *password*4*99#
2.6. Setting Work Mode:
Jog Mode: Press *password*5*1#
Ignition Mode: Press *password*5*2#
Self-locking Mode:Press *password*5*3#
2.7. Standby Mode Selection:
Standby Mode On: Press *password*6*0#
Standby Mode Off: Press *password*6*1#
2.8. Back to Factory Mode: Press *password*7*password#
2.9. Password Using: Press *password and relay closed, press # and relay opened
Note: Any fingerprint can be used in the factory state, but the function will be invalid after the fingerprint is registered.


R502-AW Specifications

Model R502-AW
Type Capacitive Fingerprint Module
Interface UART(TTL)
Resolution 508 DPI
Voltage DC 3.3V
Fingerprint Capacity 200
Sensing array 192*192 pixel
Working current 20mA
Standby current Typical touch standby voltage: 3.3V, Average current: 2uA
Fingerprint module external size 50*50*8.4 (mm)
Effective collection area Diameter 15.5 (mm)
Enclosure material Zinc alloy
Connect control board K200-3.3/K202/K215-V1.2/K216
Connector MX1.0-6Pin
LED Control YES
LED Color Purple and Blue and Red
Scanning Speed < 0.2 second
Verification Speed < 0.3 second
Matching Method 1:1; 1:N
FRR ≤1%
FAR ≤0.001%
Work environment -20C ---60C
Work Humidity 10-85%
Anti-static capacity 15KV
Abrasive resistance intensity 1 million times
Communications baud rate (UART): (9600 × N) bps where N = 1 ~ 12(default N = 6, ie 57600bps)

Files

·Provide Free Reference SDK Files for Arduino, Android,.Net,Windows and so on.
·Provide User Manual

R502-AW Test program operation display video on Youtube: https://youtu.be/Q82Zg4iFHOA
