SGS I Shaped Beam Bending Machine Tunnel Construction Equipment
SGS I Shaped Beam Bending Machine Tunnel Construction Equipment
Specifications
Brand Name :
Tytion
Model Number :
LWGJ
Certification :
CE, SGS
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
60 sets per month
Delivery Time :
8-10 working days
Packaging Details :
wooden case or others
Name :
Beam Bending Machine
guarantee :
2 years
After Warranty Service :
Video technical support, Online support or others
Machine Type :
Metal Bender Tools
Certification provide :
ce
color :
customized
Description

I-shaped large tunnel use Beam Bending Machine advanced technology

Beam Bending Machine

Structure of Beam Bending Machine:

The beam bending machine is composed of two sets of main motor, reducer group, active roller, passive roller, oil pump motor, gear pump, overflow valve, hydraulic steering station and working cylinder. The machine replaces the original blanking, butt joint, calibration, processing and other complex processes, and can save oxygen, acetylene, labor, raw materials at the same time, which is a kind of cold bending equipment with high quality and benefit.

Parameter of Beam Bending Machine:

Parameters/Name LWGJ-300 I-steel cold bending machine
Maximum bending area 250 cm2
Bending speed 6-6.2 m/min
Bending limit S=345 MPa
Specification of machine 25#
Working pressure of hydraulic system ≤16MPa
Hydraulic cylinder propulsion speed 1-10 mm/s
Hydraulic cylinder jacking force 50 T
Effective stroke of hydraulic cylinder 300mm
Rated oil pump pressure 16 Mpa
Reducer type 42#
Driving power 5.5*2
Totol power 18 kw
Diamension(L*W*H) 2800*1600*1800 mm
Weight 2350 KG

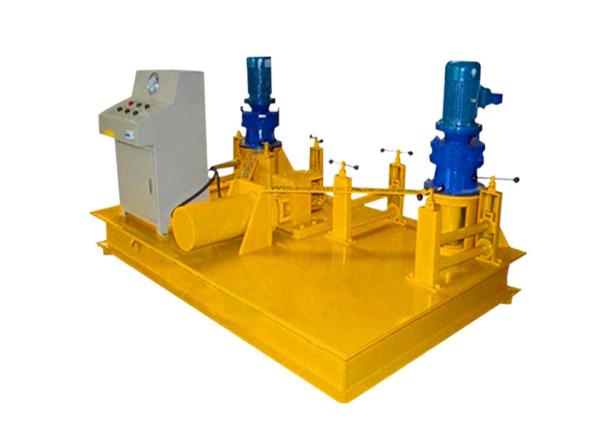

Pictures of Beam Bending Machine:

SGS I Shaped Beam Bending Machine Tunnel Construction Equipment

SGS I Shaped Beam Bending Machine Tunnel Construction Equipment

SGS I Shaped Beam Bending Machine Tunnel Construction EquipmentSGS I Shaped Beam Bending Machine Tunnel Construction EquipmentSGS I Shaped Beam Bending Machine Tunnel Construction Equipment
