Specifications
Brand Name :
ZW
Model Number :
forged ball,grinding media ball
Certification :
ISO9001:2008
Place of Origin :
Jinan city,Shandong province,China
MOQ :
1 ton
Price :
Negotiable
Supply Ability :
Annual output 80000 tons
Delivery Time :
3 days after order confirmation
Packaging Details :
container bags ,steel drum
Packing :
In steel drums or ton bags
Endurance Test Times :
≥10000
Place Of Production :
Shandong, China
Feature :
soft steel balls|hardened steel balls
Useage :
grinding media
Payment Term :
T/T, L/C
Produce Diameter :
20-150mm
Tecnology :
forging and casting
Description

High Hardness Forged Steel Balls | Wear-Resistant Grinding Media for Mining Mills

Introduction

Grinding steel balls‌ are a main tool for grinding materials, usually used in ball mills. Grinding steel balls produce abrasive effects through collision and friction with materials, thereby achieving the grinding effect of materials

Forged Ball Details:

High Hardness Forged Steel Balls | Wear-Resistant Grinding Media for Mining Mills

Material Chemical Elements
C Si Mn P/S Cr Hardness (HRC)
45# 0.42-0.50 0.17-0.37 0.5-0.8 <0.035 <0.25 60-65
60MN 0.55-0.65 0.17-0.37 0.7-1.0 <0.04 <0.25 58-63
B2 0.72-0.85 0.17-0.37 0.7-1.0 <0.04 0.4-0.6 55-58
B3 0.58-0.66 1.3-1.9 0.65-0.8 <0.025 0.7-0.9
 56-65
B6 0.97-1.03 0.2-0.3 1.0-1.1 <0.025 0.5-0.6 61-65

Casting Ball

Casting ball, also called a casting grinding ball, is made from scrap steel, scrap metal, and other trashed materials. The above mentioned materials are highly molten and conduct a continuous current after being heated. During the smelting stage, a large amount of metal elements such asvanadium, iron and manganese are first added to the flue gas to achieve the desired and predetermined yield. These elements can then pour the super-molten iron into a production line model of a steel making plant.

High Hardness Forged Steel Balls | Wear-Resistant Grinding Media for Mining Mills

High Hardness Forged Steel Balls | Wear-Resistant Grinding Media for Mining Mills

High Hardness Forged Steel Balls | Wear-Resistant Grinding Media for Mining Mills

Production Line

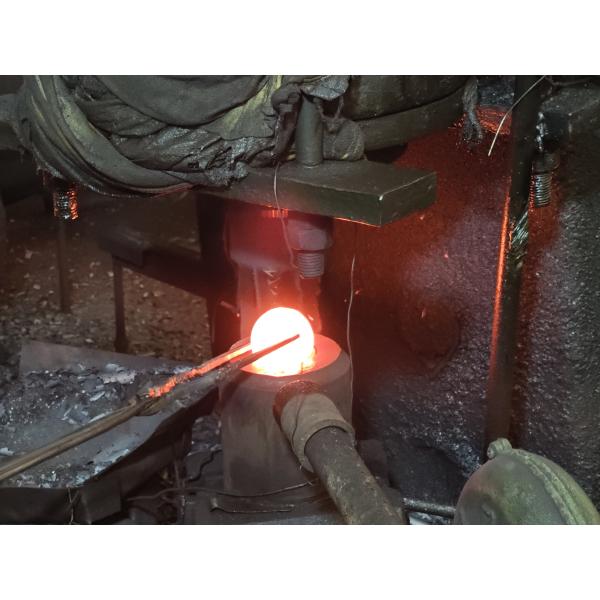

1) Traditional Forged

Raw material →Cutting →Heating → Water quenching → Tempering

High Hardness Forged Steel Balls | Wear-Resistant Grinding Media for Mining Mills

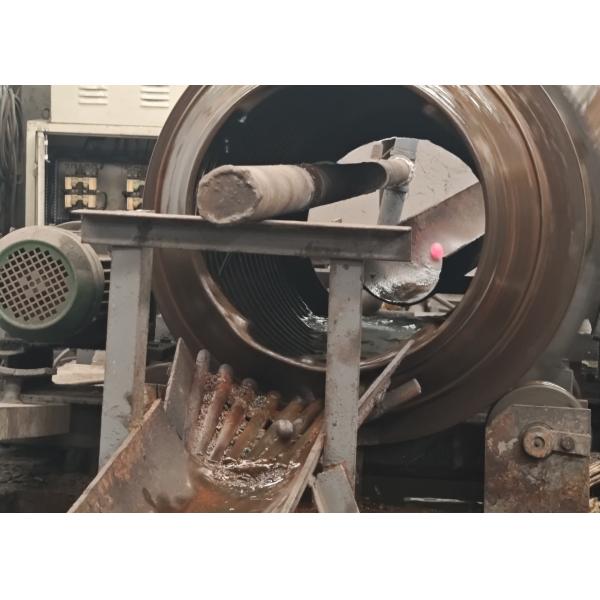

2) Auto Hot Rolling

Raw material →Hot Rolling Mill → Water Quenching → Tempering

High Hardness Forged Steel Balls | Wear-Resistant Grinding Media for Mining Mills

3) Casting
Raw material preparation →Smelting→ Pouring→Cooling and demoulding→Heat treatment and inspection

High Hardness Forged Steel Balls | Wear-Resistant Grinding Media for Mining Mills

Test
Packing & Shipping
Steel drum (800-950kg per drum)
Container Bag (1000kg per bag)
Two drums with Pallet
High Hardness Forged Steel Balls | Wear-Resistant Grinding Media for Mining Mills

Company Profile
Jinan Zhongwei established in 2000 , we are a leading manufacturer and professional exporter grinding balls in China.
Our company covers an area of 15000 square meters, now we have 150 staff, including 13 technical staff. Annual output is 50000 tons to 80000 tons .

Main products : forged steel ball, cast iron ball ,grinding rod, cylpebs
We have exported to 20 more countries, UAE, Zambia,South Africa, Peru, Chile, Australia, UK, USA, Turkey and so on.

Question and Answer

Q: Hi, are you mining machinery manufacturer? A: Yes, our company warmly welcome clients to visit our plant at anytime.
Wecanalsoprovide samples test, mine design, equipment manufacture, after-sale service, etc...

Q: Which country have your products been exported? A: We have lots of customers and agents in the world, such as
MiddleEast,Malaysia, South Africa, Canada, America, etc...

Q: What Information should customers give us, so that we can be able to provide you suitable quotation and service. A:The
customercan provide the drawing model and size of the required mechanical spare parts so that we can inquire about the
correspondingproduct information

Q: If I need the complete mineral processing line, can you help us to build it? A: Yes, we can help you combine a complete
mineralprocessing line and give you related professional advices as long as you need. We had already build many mining projects in China& Overseas.
