Specifications
Brand Name :
ZW
Model Number :
GB/T 17445-2009
Certification :
ISO9001:2008 SGS
Place of Origin :
CHINA
MOQ :
10/tons
Price :
Negotiable
Supply Ability :
50000 tons/year
Delivery Time :
7-14 days
Packaging Details :
container bags or steel drums
Breakage Guarantee :
no break
Heat treatment :
oil quenching
Quality system authentication :
ISO9001:2008/SGS TEST REPORT
HRC :
58-64
Name :
casting steel grinding balls
CR :
Cr:16
Description

Unbreakable Cast Grinding Media High Quality Cast Iron Balls For Mine


Process features of cast iron balls:
Moulding process---pouing when the molten iron temoerature reaches 1500 C,using the teoperature difference between moletn iron and the molds.in this way,the ball can achieve internal organization of grain refinement and be moredense.menanwhile,the carvide is radially arranged .and such carbide is embedded in the matrix again during grinding process,forming hatd layer continously,so that the hardness and toughness is maintained to a reasonable range,greatly improving the toughness and hardness of the grinding balls.
Unbreakable Grinding Media HRC64 Cast Iron Ball For Mine

Specifications of our products as follows:

Type and Chenical Composition of Cast Balls


Name


Material

 Chemical Composition
C Si Mn S/P Cr HRC
Cast ball

special hi-cr

 2.0-3.2 ＜1.0 0.5-2.0 ＜0.06 ＞18 58-64

higt-cr

 2.0-3.2 ＜1.0 0.5-1.5 ＜0.06 ＞10 58-62


medium-cr

 2.0-3.2 ＜1.0 0.5-1.5 ＜0.06 ≥5 45-48


low-cr

 2.2-3.4 ≤1.2 0.5-1.5 ≤0.06 1.0-1.5 42-46


Physical property of cast iron balls

Name

 Material

Impact test

AK.j/cm^2

 Endurance test times HRC Breakage

Cast ball

 special hi-cr ≥4 ≥10000 58-64 ＜1%
higt-cr ≥3 ≥10000 58-62 ＜1%
medium-cr ≥3 ≥8000 45-48 ＜1%
low-cr ≥2 ≥8000 42-46 ＜1%


5.Package: Steel drums (850kg per drum) or Flexible Container Bags ( 1000kg per bag)
Unbreakable Grinding Media HRC64 Cast Iron Ball For Mine

Container Bag Steel Drum
Net weight 1000kgs for all size balls Ball Size Net Weight
20-30mm 930-1000kgs
40-60mm 900-930kgs
70-90mm 830-880kgs
100mm and above 830-850kgs

Bag: 73×60cm, 1.5kg, 0.252CBM

Drum: 60×90cm, 15-20kg, 0.325CBM

Pallet: Single: 60×60×9cm, 4-6kg; Double:120×60×10cm,12-14kg

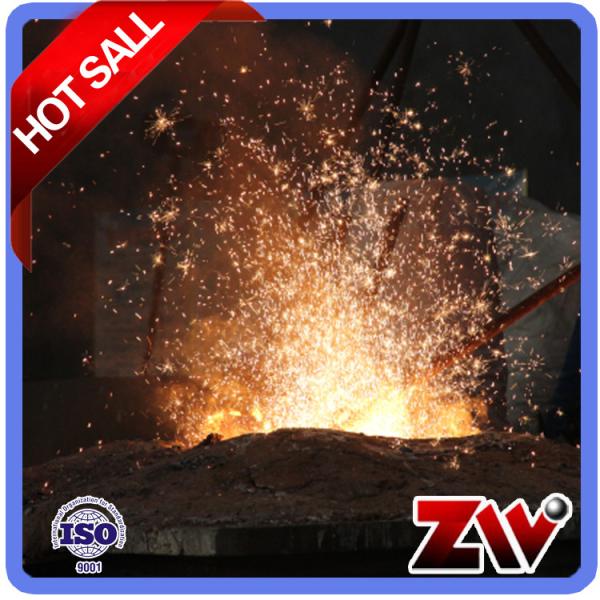

.Electric furnace smelting:All cast steel balls are produced by intermediate frequency electric furance .The purity and stability of materials are effectively esured after unform temerature conditioning and twice hot metal purificati0n.

.Assay before furnace :Temperature control is an important and complex process during cast steel ball production.Different tapping temperature and heat temperature are sensitively reflected in the quality of the products.It is requested to master the proper pouring temperature ,mold temperature ,so that can make sure the products achieve a good state of body tisssue during the transition from Liquid to solid states.

Unbreakable Grinding Media HRC64 Cast Iron Ball For Mine
