Specifications
Brand Name :
Zhongwei
Model Number :
forged, casting ball, hot rolling, Cylpebs
Certification :
ISO9001:2008
Place of Origin :
Jinan city,Shandong province,China
MOQ :
10 tons
Price :
Negotiable
Supply Ability :
Annual output 80000 tons
Delivery Time :
3 days after order confirmation
Packaging Details :
container bags ,steel drum
Tecnology :
forged, casting and hot rolling
Raw material heating :
B3,B2,60Mn,45#, chrome iron
Size :
Dia 20- 150mm
Package :
one ton bags or steel drums
Certificate :
SGS, TUV, BV and other third party certificate
Impact :
≥12
Description

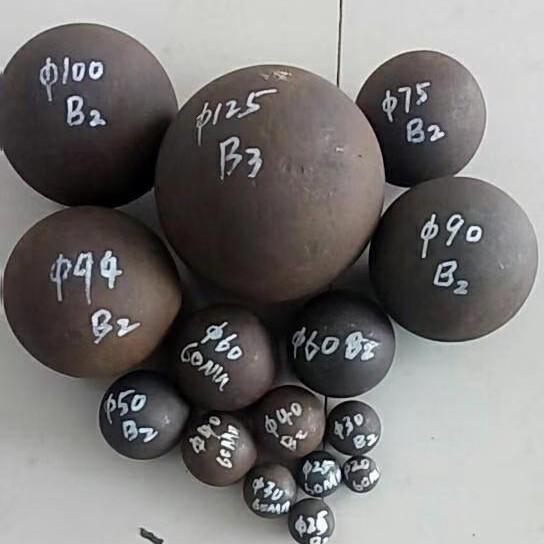

Dia 20mm-150mm Grinding Media Forged Steel Ball Cast Iron Ball for Ball Mill

Brief Description:

Forged Balls

Size: 20-150mm Inspection: SGS/BV/TUV

Origin: Shandong, China Packing: 1000kgs per bag or 900kgs per steel drum

Material Chemical Elements
C Si Mn P/S Cr Hardness (HRC)
45# 0.42-0.50 0.17-0.37 0.5-0.8 <0.035 <0.25 60-65
60MN 0.55-0.65 0.17-0.37 0.7-1.0 <0.04 <0.25 58-63
B2 0.72-0.85 0.17-0.37 0.7-1.0 <0.04 0.4-0.6 55-58
B3 0.5-0.8 1.0-1.8 0.4-1.0 0.035 0.5-1.0
56-63

Casting Balls

Name

Material

Chemical elements Hardness
C Si Mn S P Cr

HRC

Cast iron ball

Special cr1 2.0-3.0 <1.0 0.5-2.0 ≤0.06 ≤0.06 >20 60-65
Special cr2 2.0-3.0 <1.0 0.5-2.0 ≤0.06 ≤0.06 >15 58-64
High Cr 2.0-3.2 <1.0 0.5-2.5 ≤0.06 ≤0.06 >10 58-63
Medium Cr 2.0-3.2 <1.0 0.5-2.5 ≤0.06 ≤0.06 ≥5 48-55
Low Cr 2.2-3.4 ≤1.2 0.5-1.5 ≤0.06 ≤0.06 1.0-1.5 45-50

Raw Material:

Strict quality control of steel material from LAIWU STEEL FACTORY GROUP, the Biggest factory group in North of China.

Dia 20mm-150mm Grinding Media B3 Forged Steel Ball

Prodcution Line:

1.Traditional Hammer Forging: Raw material-Cutting-Heating-Forging-Quenching-Tempering-Testing-Packing

2. Hot Rolling

Dia 20mm-150mm Grinding Media B3 Forged Steel Ball

Dia 20mm-150mm Grinding Media B3 Forged Steel Ball

Testing:

Quality control for each production shift (4hours/Shift);

Hardness, chemical elements and impact testing after production for each production shift;

SGS –third party testing before each delivery

Dia 20mm-150mm Grinding Media B3 Forged Steel Ball

Packing:

Container bags(Net weight:1000KGS) or Steel drums(850-900KGS) or in clients' requirements

Dia 20mm-150mm Grinding Media B3 Forged Steel Ball

Certificate:

ISO9001-2008, SGS

Dia 20mm-150mm Grinding Media B3 Forged Steel Ball

Our advantage:

1. All of the grinding material can do the well-know and most professional in grinding media industry test certificate: SGS

2. All products are our own production, no other commissons expense. We guarantee to provide the best competitive price

3. Delivery on time, due to our production capacity: 100,000 tons/year

Company Profile:

We Jinan Zhongwei are manufacturer and exporter of grinding balls in China,with the annual output of 50,000 to 80,000 metric tons.


Our company is located in Zhangqiu ,Jinan City,Shandong Province, which is provided with superior geographical position and convenient transportation. Our company covers an area of 15,000 square meters,with two million registered capital .And there are 150 existing staff,including 21 technicians.
Our main products: forging grinding steel balls,and (high,low,medium) chrome alloyed casting iron balls,casting cylpebs,grinding rods.

Application of our products: various mines,cement plants,power stations and chemical industries.

Priorities of our products: High hardness, good wear resistance, breakage rate lower than 1%.

Dia 20mm-150mm Grinding Media B3 Forged Steel Ball
