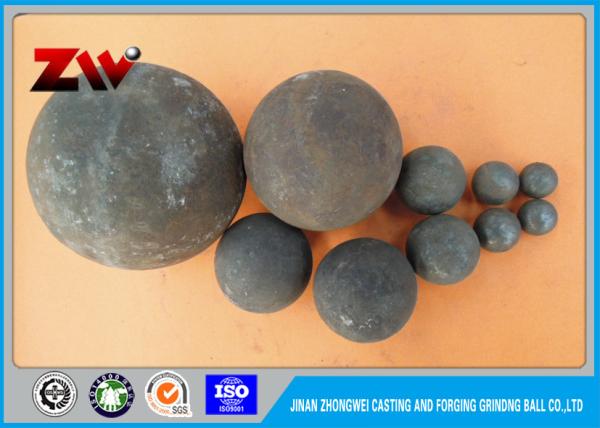

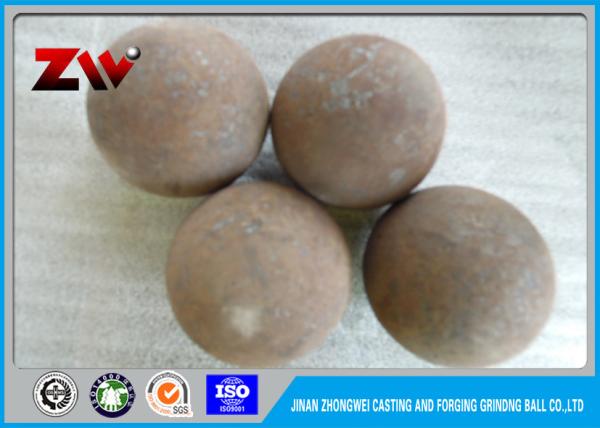

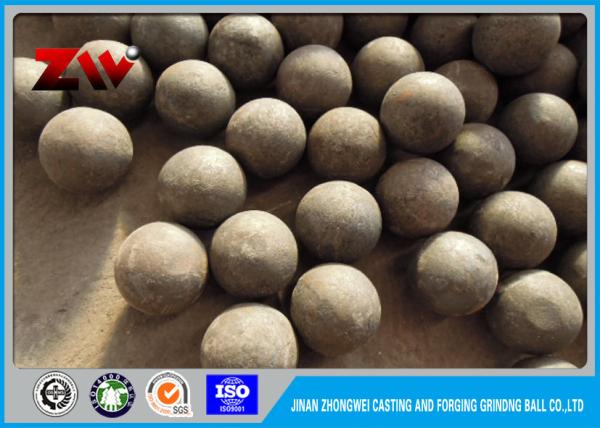

94mm hot rolled forged grinding media steel balls For Mining / Cement Plant
94mm hot rolled forged grinding media steel balls For Mining / Cement Plant
94mm hot rolled forged grinding media steel balls For Mining / Cement Plant
94mm hot rolled forged grinding media steel balls For Mining / Cement Plant
94mm hot rolled forged grinding media steel balls For Mining / Cement Plant
94mm hot rolled forged grinding media steel balls For Mining / Cement Plant
94mm hot rolled forged grinding media steel balls For Mining / Cement Plant
94mm hot rolled forged grinding media steel balls For Mining / Cement Plant
Specifications
Brand Name :
ZW
Model Number :
Diatemer 20mm-150mm
Certification :
ISO9001:2008
Place of Origin :
Jinan city,Shandong province,China
MOQ :
One ton
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
Annual output 50000 tons
Delivery Time :
10-30 days after order confirmation
Packaging Details :
big bags , steel drum
Manufacturer :
Jinan Zhongwei
Coutry of origin :
China
HS code :
7326110000
Production line :
Hot rolling , Air hammer forging
Raw material supplier :
China large steel group-Laiwu steel
Forged grinding balls application :
Grinding process in various ball mill
Application fields :
Mining , Cement Plant , Building Material Industry
Quality guarantee :
No steel scrap,100% real material
Breakage :
Less than 0.5%
Samples support :
Free samples
Port of loading :
Qingdao Port,China
Leading time :
According to the contract
Inquiry :
info@zwgrindingball.com
Description

Manufacturer of 94mm forged steel balls :Jinan Zhongwei

Export to : Australia

GENERAL DESCRIPTION

Jinan Zhongwei has the capacity to manufacture premium quality forged steel balls

of all sizes ranging from 22 mm to 160 mm ( 7/8” to 6 ¼” approx. ) .

Jinan Zhongwei Grinding Media Plant located in Zhangqiu , Jinan City,Shandong Province , China

​

Forged steel Balls are made from high carbon steel bars with the proper alloying elements.

Bars are heated to forging temperatures and formed into nearly perfect spheres.

Then, balls are heat-treated to provide the necessary wear and impact resistance properties.

Weight of Forged Grinding Ball

Norminal Diameter

Diametrical Tolerance(mm)

Approx Weight of Single Ball(kg)

Average Number of One Ton

25mm/1''

+1.5,-0.5

0.064

15625

30mm/1.25''

+1.5,-0.5

0.11

9090

40mm/1.5''

+2.0,-1.0

0.26

3846

50mm/2''

+2.0,-1.0

0.51

1961

60mm/2.5''

+3.0,-2.0

0.89

1124

70mm/2.75''

+3.0,-2.0

1.4

714

80mm/3.25''

+3.0,-2.0

2.1

476

90mm/3.5''

+3.0,-2.0

3

333

100mm/4''

+4.0,-3.0

4.1

244

110mm/4.5''

+4.0,-3.0

5.47

283

120mm/4.75

+4.0,-3.0

7.1

141

130mm/5''

+4.0,-3.0

9.02

111

Type of forged steel balls

94mm hot rolled forged grinding media steel balls For Mining / Cement Plant

Testing Method and Inspection Rules

1. Impact Test

2. Rockwell Hardness Test Specimen Preparation

3. Chemical Composition Inspection

4. Surface Hardness Inspection

5. Internal Quality Inspection

94mm hot rolled forged grinding media steel balls For Mining / Cement Plant

  • Shipping and delivery

Port of loading:Qingdao Port,China

Delivery time : Normally 2-3 weeks after down payment received.

Partial shippment allowed,

FAQ

  • Payment terms : T/T (30% DP,balance against copy of B/L.; L/C
  • Samples : Free samples are provided for test before trial order
  • MOQ : 1 Ton

Forged Steel Balls Package :

For Container Bag, Net weight 1000Kgs ,Gross Weight 1002KGS ,Measurement 0.4CBM

For Steel Drums ,Net weight 850-950Kgs ,Gross Weight 865-965KGS ,Measurement 0.3CBM

94mm hot rolled forged grinding media steel balls For Mining / Cement Plant

We jinan zhongwei will continue to promote the benefits and applications of our grinding media to an

ever-widening industrial marketplace.

We are ready to contribute our share in advancing mutual benefit and win-win cooperation.

Let’s build a bright future together!
