Unbreakable forged grinding steel ball for Ball Mill And Iron Mine HRC 60-68
Unbreakable forged grinding steel ball for Ball Mill And Iron Mine HRC 60-68
Unbreakable forged grinding steel ball for Ball Mill And Iron Mine HRC 60-68
Unbreakable forged grinding steel ball for Ball Mill And Iron Mine HRC 60-68
Specifications
Brand Name :
ZW
Model Number :
45#,60MN,B2,B3,high cr low cr
Certification :
ISO9001:2008
Place of Origin :
Jinan city,Shandong province,China
MOQ :
25 tons
Price :
Negotiable
Supply Ability :
Annual output 50000 tons
Delivery Time :
1-3 weeks after the advance
Packaging Details :
container bags ,steel drum
Key word :
grinding balls for ball mill
Breakage Guarantee :
no breakage upon delivery
Hardness :
HRC 60-68
Tecnology :
forging and casting
Raw material heating :
By electric furance
Service :
One-stop Service
Product name :
grinding balls
Heat Treatment :
oil Quenching
Description

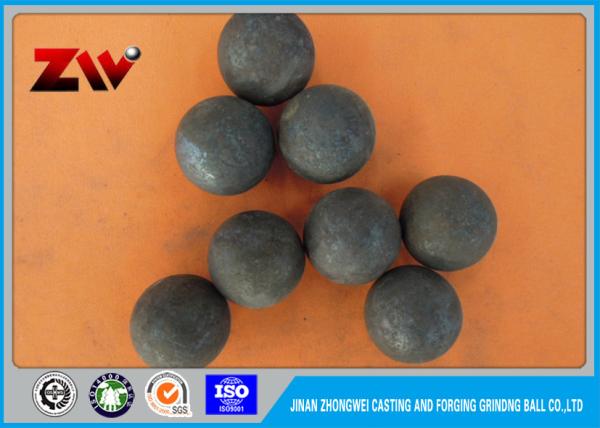

Unbreakable Forged Steel Grinding Balls for Ball Mill And Iron Mine

Grinding Balls For Ball Mill Chemical Elements( Below is common used type all over the world,if you have any other different requirement, please let me know,we can order from steel mill)

Forged Steel Balls

Material Chemical Elements
C Si Mn P/S Cr
45# 0.42-0.50 0.17-0.37 0.5-0.8 <0.035 <0.25
60MN 0.55-0.65 0.17-0.37 0.7-1.0 <0.04 <0.25
B2 0.72-0.85 0.17-0.37 0.7-1.0 <0.04 0.4-0.6
B3 0.5-0.8 1.0-1.8 0.4-1.0 0.035 0.5-1.0

Cast Iron balls

Material Chemical Elements
C Si Mn P S Cr
Speical Cr 2 2.0-3.0 < 1.0 0.5-2.0 <0.08 < 0.06 > 20
Speical Cr 1 2.0-3.0 < 1.0 0.5-2.0 <0.08 < 0.06 > 15
High Cr 2.0-3.2 < 1.0 0.5-2.5 <0.08 < 0.06 > 10
Medium Cr 2.0-3.2 < 1.0 0.5-2.5 <0.08 < 0.06 > 5
Low Cr 2.2-3.4 < 1.2 0.5-1.5 <0.08 < 0.06 1.0-1.5

Jinan zhongwei casting and forging grinding ball Co.,ltd, as the powerful grinder of world’s mining,

specializes in the production of the forged steel ball, cast iron ball, cylpebs and grinding rods, which

are widely used in the mining fields, chemical plant ,power station and building material industries .

We have exported to more than 20 countries such as South Africa, Australia, Chile, Kuwait, UAE,

Russia, Malaysia, Korea and Philippine etc.

Grindind balls for ball mill

1. Packing Instruction:

Barrel with wooden pallet: Steel Drum or Steel Barrel
Barrel size(cm): 89 χ 58 (Volume: 800kgs N. G. Avaliable)
Pallet size(cm): 168 χ 59 χ 13
Two Barrel tie on the wooden pallet, steel tape for bundle
Strong Nylon Bag:
Avalible Bag: 50kgs; 100kgs; 1000kgs

2. Credibility and Certification:

Our company has obtained ISO 9001 International Quality System Authentication, ISO14001 Environmental System Management Authentication and ISO18001 occupational health and safety certification, safety standardization identification, clean production enterprise certification.

Our company has won the "Shandong Province Famous Brand", "Shandong Famous Trademark", "Leading Forged Steel Ball Manufacturer in China ", "High-tech Enterprise "and "Contract Abiding and Promise Keeping Enterprise", etc.

3. Cooperative Partner and Production Line:

The self-developed automatic steel grinding ball production line is our qualified product, and it has won Chinese invention patent. It uses electric furnace instead of conventional coal combustion method, and the rotary cutting technique replaces traditional air hammer, thereby improving production efficiency by 30 times or even higher.

We operate our 80%products into the foreign market, and keep close and cooperation with many companies.


Unbreakable forged grinding steel ball for Ball Mill And Iron Mine HRC 60-68
