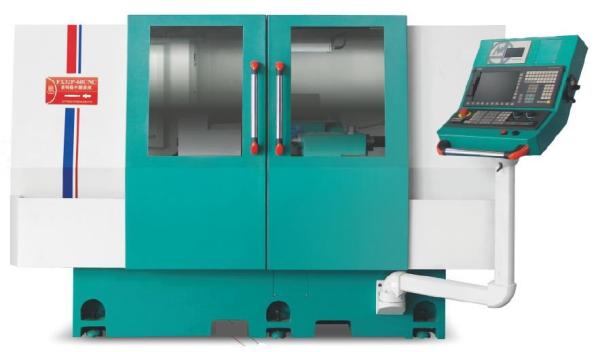

Universal Cylindrical Grinding machine with B axis, 2 external grinding wheels and 1 internal grinding wheel
Universal Cylindrical Grinding machine with B axis, 2 external grinding wheels and 1 internal grinding wheel
Universal Cylindrical Grinding machine with B axis, 2 external grinding wheels and 1 internal grinding wheel
Universal Cylindrical Grinding machine with B axis, 2 external grinding wheels and 1 internal grinding wheel
Specifications
Brand Name :
HOTMAN
Model Number :
W32-75CNC
Certification :
CE
Place of Origin :
China
MOQ :
1
Price :
RMB1/SET
Payment Terms :
T/T
Supply Ability :
30
Delivery Time :
60DAYS
Packaging Details :
WOODEN BOOX
Product Name :
high precision turrent universal cylindrical grinding machine with B axis, internal grinding axis
machining workpice diamter :
5-320mm(customization acceptable）
machining workpice length :
10-750mm
B axis rotaory angle :
360 degrees
external griniding spindle :
maxium equipped with 2 external spindle
internal griniding spindle :
1 external spindle
Max. Grinding Diameter :
200mm
Max. Grinding Length :
1000mm
Overall Dimensions :
1800×1400×1400mm
Table Speed :
2-20m/min
Table Swivel Angle :
±5°
Tailstock Taper :
Morse No.3
Tailstock Travel :
150mm
Weight :
1800Kg
Workhead Motor Power :
0.75KW
Workhead Speed Range :
40-400rpm
Description

high precision turrent universal cylindrical grinding machine with B axis, internal grinding axis

Machine host description
Structural characteristics
1.High rigid bed structure
2.High precision and high power water-cooled motorized spindle
3.High bearing capacity of plastic precision shovel table
4.Japan C3 precision ball screw drive table
5. Heidenhain 50 nm grating scale feedback (optional)
6. Fixed/rotary precision workpiece head holder with air flotation (optional)
7.High rigidity Air float tailstock (optional)
8.Flexible and varied option configuration
