Ductile Iron Sand Casting Bearing Seat Bearing Housing
Ductile Iron Sand Casting Bearing Seat Bearing Housing
Ductile Iron Sand Casting Bearing Seat Bearing Housing
Ductile Iron Sand Casting Bearing Seat Bearing Housing
Ductile Iron Sand Casting Bearing Seat Bearing Housing
Ductile Iron Sand Casting Bearing Seat Bearing Housing
Specifications
Brand Name :
NC4532
Model Number :
4532
Certification :
ISO9001,CE,SGS
Place of Origin :
China
MOQ :
100 pcs
Price :
Can talk
Payment Terms :
T/T, L/C
Supply Ability :
60,000 pcs monthly
Item Name :
Bearing Housing
Material :
Ductile Iron
Application :
Agriculture Machinery
Process :
Iron Sand Casting
Tolerance :
0.01-0.05
Finish :
Sandblasting
Size :
Customized
Description

Ductile Iron Sand Casting Bearing Seat Bearing Housing

Product Details

Main blank Process for Casting Iron
Sand Casting , Resin Sand Casting, Green Sand Casting, Shell Molding, Automatic Molding, Lost Wax Casting, Lost Foam Molding Casting etc.
Blanks Casting Tolerance
CT9-10 for Machine Molding Process,
CT8-9 for Shell Molding and Lost Foam Molding Casting Process
CT10-11 for Manual Molding Sand casting Process
Applicable Material
Ductile Iron, Grey Iron Casting, or as customer request.
Casting Blank Size /Dimensions
2 mm-2000mm / 0.08inch-79inch for casting iron, as per customer requirement
Casting Blank Weight
Range from 0.01kg-1000kg for casting iron
Applicable Machining Process
CNC Machining/ Lathing/ Milling/ Turning/ Boring/ Drilling/ Tapping/ Broaching/ Reaming /Grinding/Honing and etc.
Machining Tolerance
From 0.005mm-0.01mm-0.1mm
Machined Surface Quality
Ra 0.8-Ra3.2, according to customer requirement

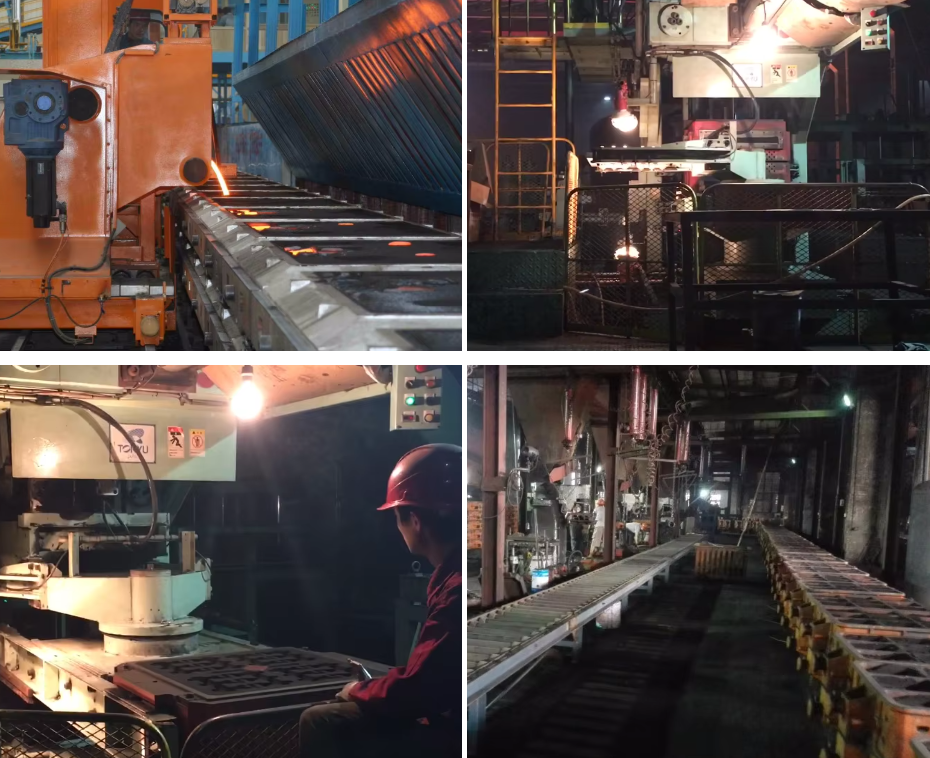

Production Process

Strictly making 3D model based on customer's drawing dimensions, and mastered the contractibility rate for all types of material.

sand mold is formed by packing sand into each half of the mold. The sand is packed around the pattern, which is a replica of the external shape of the casting.
Sand Core Making The cores are positioned and the mold halves are closed and securely clamped together
Pattern Assembly The patterns are assembled together to form a casting cluster or assembly.
Smelting the Liquid Steel: Allocate the chemical composition and sampling before steel casting.
Spectrochemistry Analysis Inspection on materials by spectrometer testing.
Allocate the chemical composition and sampling before steel casting.
Spectrochemistry Analysis Inspection on materials by spectrometer testing.
In the conventional process, the shell is filled with molten metal by gravity pouring.
Removing sand from castings when the surfaces are not going to red anymore.
Carbon steel and low-alloy steel need normalizing and temper, oil-quenching, water-quenching and so on. We can set out different heat treatment method as per different requirement from customers.
Shot blasting treatment This process can make the products surface color to be the same and remove the polishing trace. In use of different dimensional steel ball could have different vision on the product surface.
Polishing Polishing is to modify the out of flatness on casting head after casting cuttig and to modify the burring and splashing in the process of casting cycle.
Machining Cut the piece of raw material into a desired final shape and size. Now we have CNC, Lathe, milling machine, drilling machine, boring lathe and grinding machine.

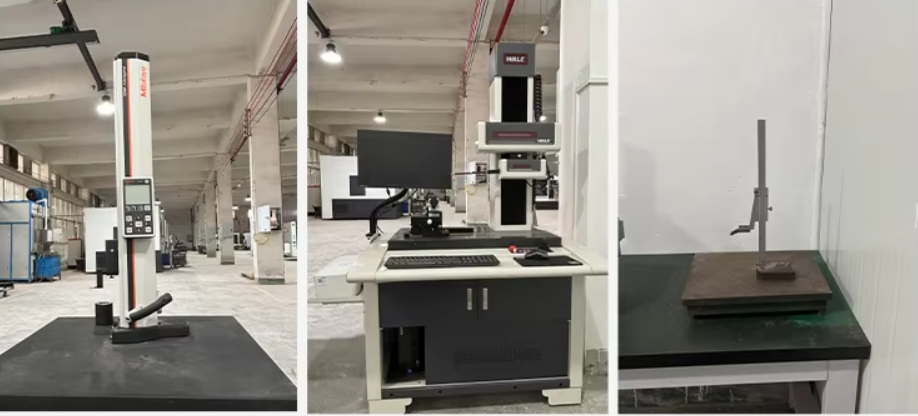

Quality Inspection Quality inspection on the machining dimension. Mainly tools we use is like specialized gauge and callipers, mircocalliper,three-dimensional and so on.
Ductile Iron Sand Casting Bearing Seat Bearing Housing
Quality Control
Ductile Iron Sand Casting Bearing Seat Bearing Housing
FAQ
Q2. What services do you offer?
A2: One-stop services including CNC machining, die casting, gravity casting, sand casting, investment casting, forging, sheet metal
fabrication, and injection molding—from prototype to mass production.

Q3. Do you support OEM & ODM?
A3: Yes. We provide OEM/ODM from drawing review, DFM optimization, tooling (if needed), sampling to mass production.

Q4. What products do you specialize in?
A4: Custom metal parts and assemblies for various industries (Auto, Construction, Energy, Medical, Oil & Gas, Marine, Robotics,
etc.).

Q5. What CNC machining capability do you have?
A5: 3/4/5/6-axis CNC machining for complex and high-precision parts, from prototype to mass production.
