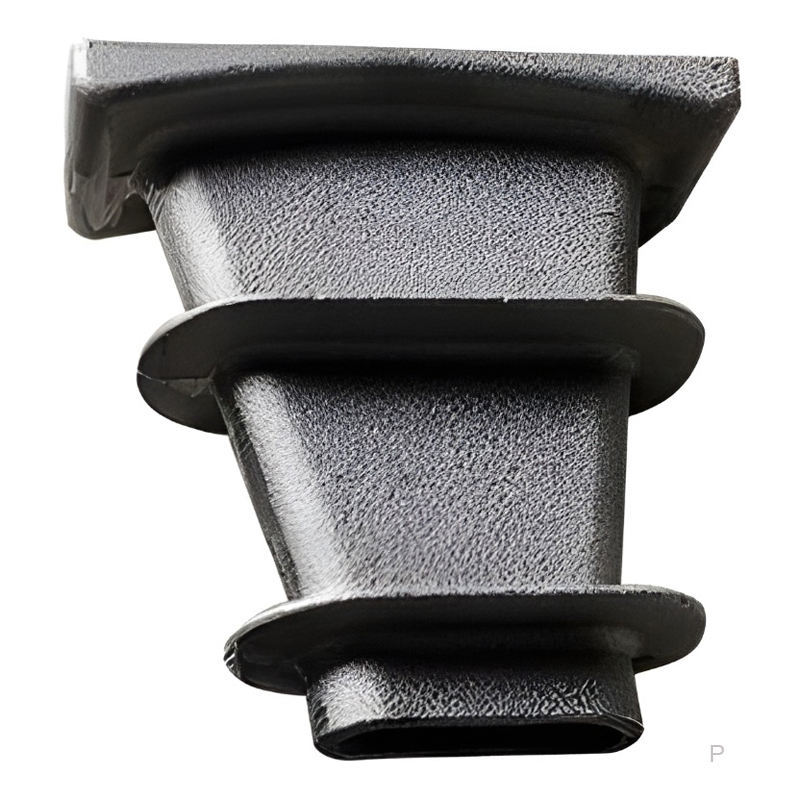

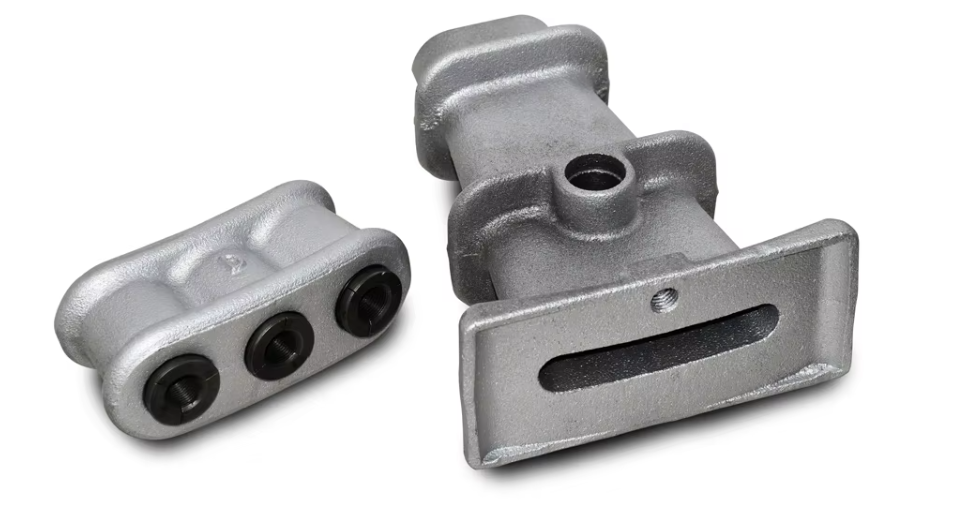

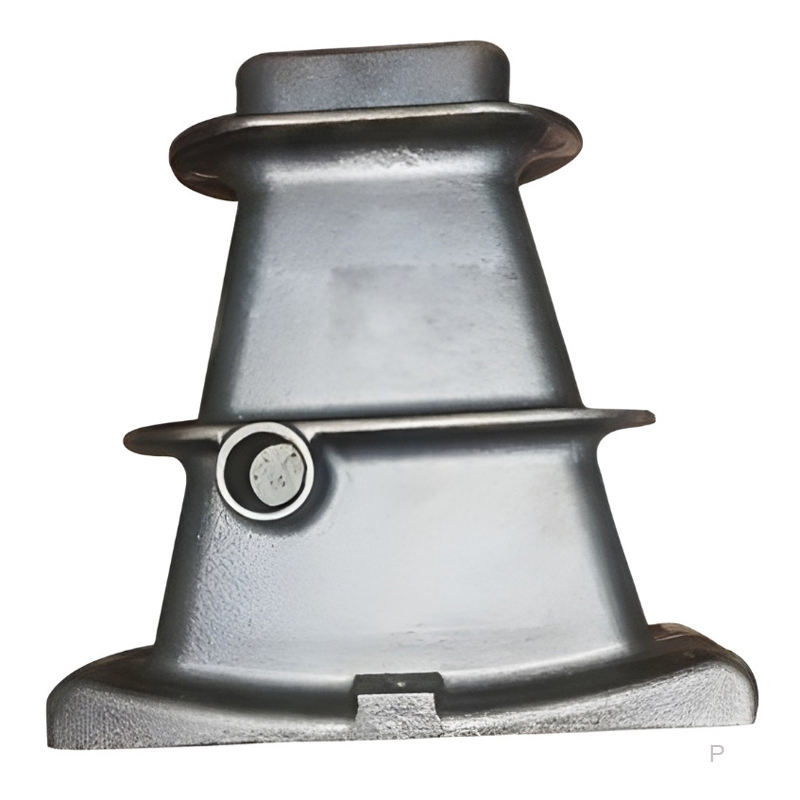

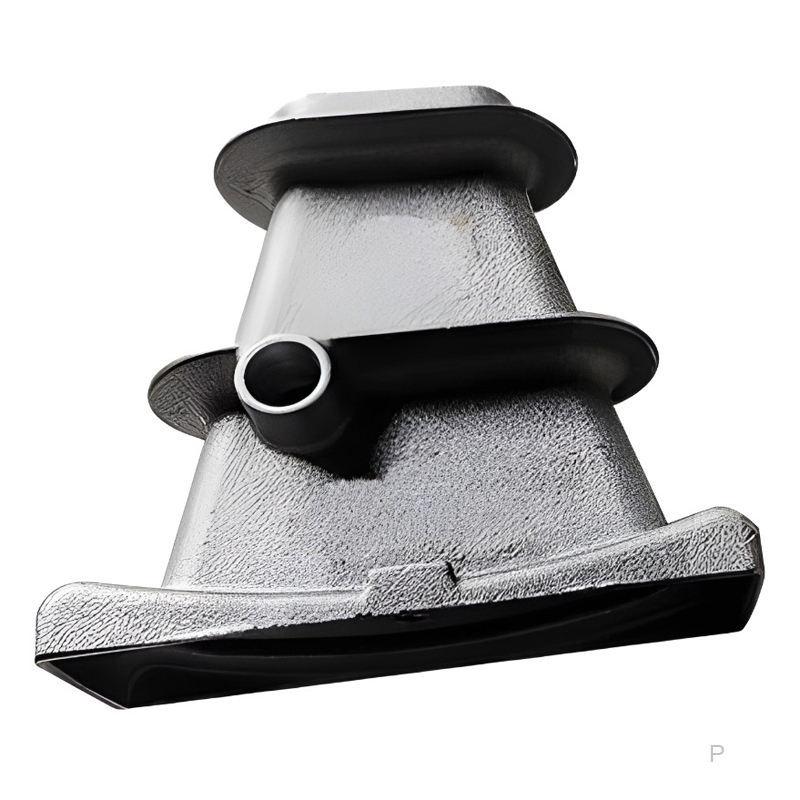

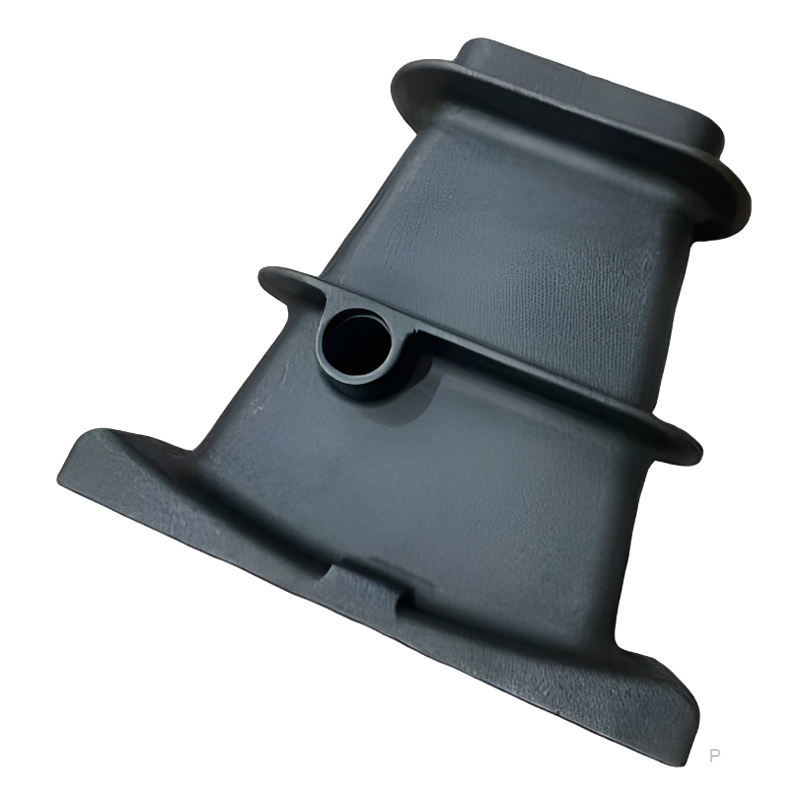

Prestressed Concrete Slab Anchors Post Tension Arc Anchorage
Prestressed Concrete Slab Anchors Post Tension Arc Anchorage
Prestressed Concrete Slab Anchors Post Tension Arc Anchorage
Prestressed Concrete Slab Anchors Post Tension Arc Anchorage
Prestressed Concrete Slab Anchors Post Tension Arc Anchorage
Prestressed Concrete Slab Anchors Post Tension Arc Anchorage
Prestressed Concrete Slab Anchors Post Tension Arc Anchorage
Prestressed Concrete Slab Anchors Post Tension Arc Anchorage
Prestressed Concrete Slab Anchors Post Tension Arc Anchorage
Prestressed Concrete Slab Anchors Post Tension Arc Anchorage
Specifications
Brand Name :
NC4251
Payment Terms :
T/T, L/C
Material :
Cast Iron
Application :
Construction
Certification :
ISO9001,CE,SGS
MOQ :
100 pcs
Price :
Can talk
Delivery Time :
30 days
Inspection :
100%
Supply Ability :
80,000 pcs monthly
Process :
Sand Casting
Packaging Details :
Wooden Case
Place of Origin :
China
Model Number :
NC0324
Diameter :
12.7,15.24
OEM :
Available
Description

Prestressed Concrete Slab Anchors Post Tension Arc Anchorage

Product Details

The anchoring system of spheroidal graphite cast iron integrated anchor is designed for unbonded PC strand based on the
application of PC strand anchorage in recent 20 years in China.Its feature is that the anchorage at the tension end adopts the spheroidal graphite to integrate the bearing plate and anchor head. It has compact structure and reliable anchoring, Its performance meets the national requirements of GB/t14370-2000, and it is also applicable to 2000MPa PC strand.In addition, the biggest advantage of the anchoring system is that the full length of PC strand can be fully sealed.

Features:

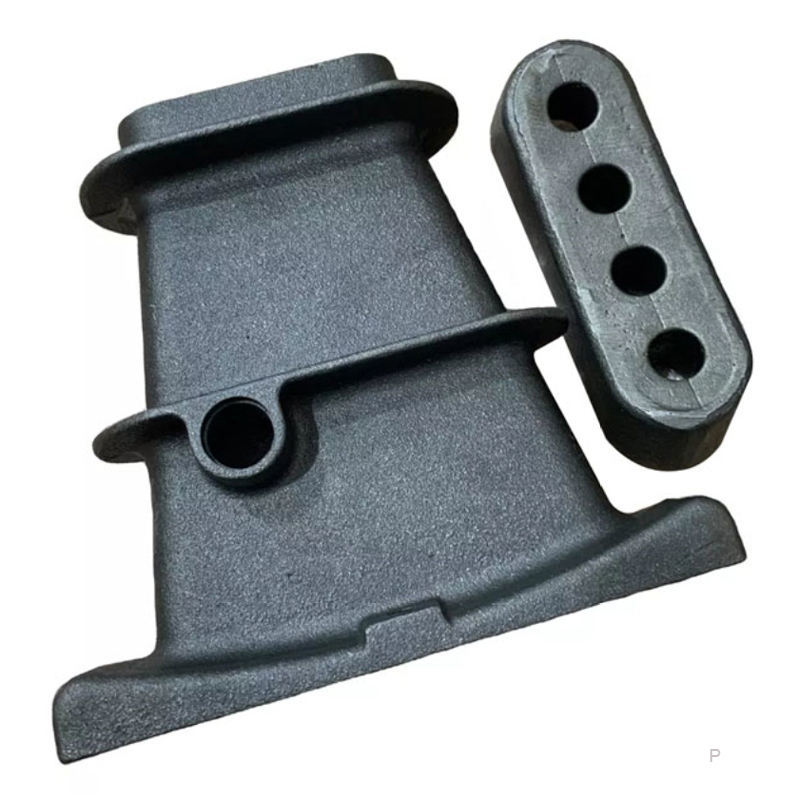

* Including anchor head, anchor wedge and anchor plate
* Adopts the ductile iron material, and combines the traditional anchor head and the anchor plate into one, which greatly
simplifies the complicated machining process in the previous anchor tool processing
* The utility model is characterized in that the tension end anchor is integrated with the anchor ring by ductile iron, and the structure is compact and the anchoring is reliable.
* The full length of the prestressing tendon can be completely closed.
* Flat Shape, Mature Efficiency Design, Straight or Arc shape anchor head available 3, 4, 5 holes available; Well Deburring and Chamfering; Galvanized or Chemical Dioxide Surface Treatment( Black).
Prestressed Concrete Slab Anchors Post Tension Arc Anchorage
Prestressed Concrete Slab Anchors Post Tension Arc Anchorage
About Us

Sunrise Foundry is a professional Metal Foundry, located in Ningbo. We have been producing Gray Iron,

Ductile Iron Castings and and any other precision castings for more than 25 years.

We are dedicated to meet different requirements of various customers across the world, products are mainly

involved Agricultural and Construction Machinery, Hydraulic, Mining industry, Municipal Products, some steel

and stainless steel castings for Pumps and Valves, Pipe Fittings, etc.

Please feel free to contact us if you have any requests.

FAQ

Q1: When can I get the price?
A1: We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please tell us in your
email so that we will regard you inquiry priority.

Q2: What about the lead time for the mass production?
A2: Honestly, it depends on the order quantity and the season you place the order.
