3/8 In 1 X 7 EHS Galvanized Steel Guy Wire In Coil Or On Reel Packing
3/8 In 1 X 7 EHS Galvanized Steel Guy Wire In Coil Or On Reel Packing
3/8 In 1 X 7 EHS Galvanized Steel Guy Wire In Coil Or On Reel Packing
3/8 In 1 X 7 EHS Galvanized Steel Guy Wire In Coil Or On Reel Packing
3/8 In 1 X 7 EHS Galvanized Steel Guy Wire In Coil Or On Reel Packing
3/8 In 1 X 7 EHS Galvanized Steel Guy Wire In Coil Or On Reel Packing
Specifications
Brand Name :
Litong Global
Model Number :
LT-20190527-4
Certification :
ISO9001-2008
Place of Origin :
Anhui,China
MOQ :
1 full 20" container
Price :
discuss
Supply Ability :
400tons/day
Packaging Details :
standard export packing
Material :
Galvanized steel wire
Application :
Bare ACSR Conductor/ overhead ground/shield wire, guys and messengers
Standard :
ASTM B 498/ASTM A 475

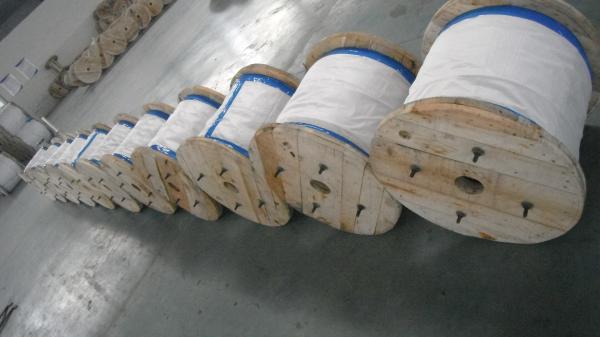

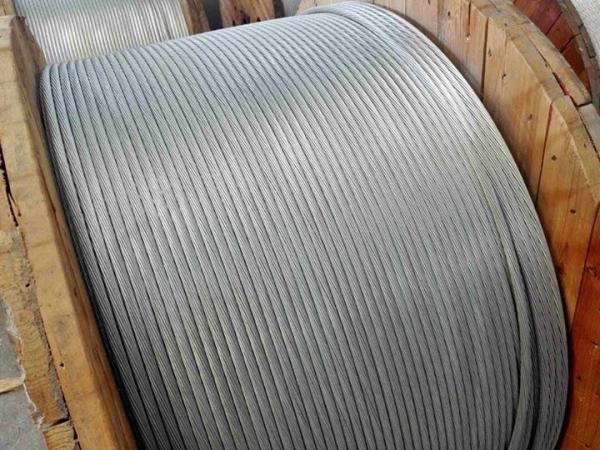

Packing :
In coil or on reel
Description

3/8 in 1 x 7 EHS Galvanized Steel Guy Wire

3/8 in 1 x 7 EHS Galvanized Steel Guy Wire

Applications:
Guy strand is used to add stability to a free-standing structure or tower. Overhead Ground Wire specification and 95% Zinc+ 5% Aluminum Mischmetal Alloy coating available upon request.

Standards:
Manufactured and inspected per ASTM A-475 and BS-183 Manufactured and inspected per A-855, ASTM A-363, A-92

Specifications*:

Strand Diameter Inches: 3/8"
Wires Per Strand: 7
Approximate Cable Weight: 273lbs per 1000ft

Minimum Breaking Strength In Pounds:
Utilities Grade: 11500 lbs
Siemens Martin Grade: 6950 lbs
High Strength Grade: 10800 lbs
Extra High Strength Grade: 15400 lbs

Zinc Coating: 100%

Minimum Weight of Coating OZ/SQ FT:
Class A: .85

3/8 In 1 X 7 EHS Galvanized Steel Guy Wire In Coil Or On Reel Packing
