ISO 1.6mm Galvanized Metal Wire For Re - Drawing Wire To Produce Wire Rope
ISO 1.6mm Galvanized Metal Wire For Re - Drawing Wire To Produce Wire Rope
ISO 1.6mm Galvanized Metal Wire For Re - Drawing Wire To Produce Wire Rope
ISO 1.6mm Galvanized Metal Wire For Re - Drawing Wire To Produce Wire Rope
ISO 1.6mm Galvanized Metal Wire For Re - Drawing Wire To Produce Wire Rope
ISO 1.6mm Galvanized Metal Wire For Re - Drawing Wire To Produce Wire Rope
Specifications
Brand Name :
Global
Model Number :
1.6mm
Certification :
ISO9001-2008
Place of Origin :
Anhui,China
MOQ :
10tons
Price :
discuss
Supply Ability :
200tons/day
Packaging Details :
standard export packing in coil
Material :
High carbon Wire rod
Specification :
1.6mm
Surface treatment :
Hot-dipped Galvanized
Packing :
Heavy weight packing in coil
Loading capacity :
25tons/20"
Description

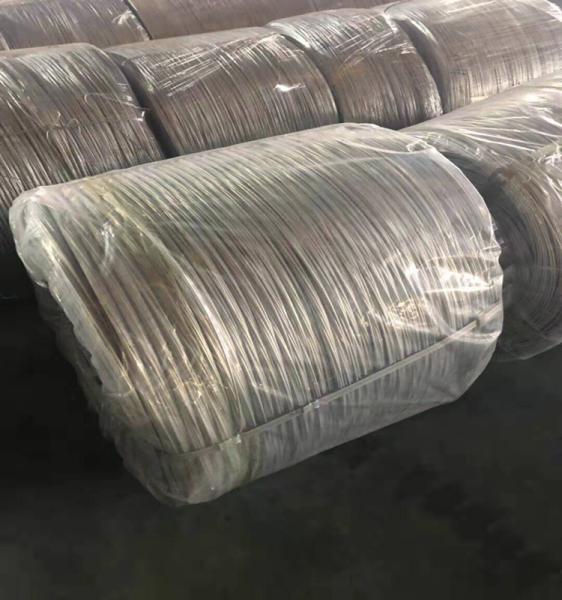

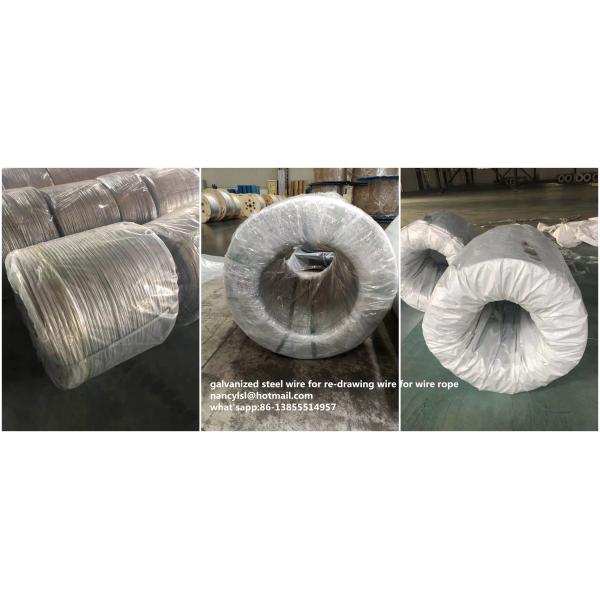

Galvanized steel wire for re-drawing wire to produce wire rope

Nominal Approximate Nominal tensile strength MPa
diameter mass 1570 1670 1770 1870
mm kg/100m Minimum breaking force kN
0.6 0.19 0.31 0.32 0.34 0.36
1.2 0.75 1.22 1.3 1.38 1.45
1.5 1.17 1.91 2.03 2.15 2.27
1.8 1.69 2.75 2.92 3.1 3.27
2.1 2.3 3.74 3.98 4.22 4.45
2.4 3.01 4.88 5.19 5.51 5.82
2.7 3.8 6.18 6.57 6.97 7.36
3 4.7 7.63 8.12 8.6 9.09
3.3 5.68 9.23 9.82 10.4 11
3.6 6.77 11 11.7 12.4 13.1
3.9 7.94 12.9 13.7 14.5 15.4
4.2 9.21 15 15.9 16.9 17.8
4.5 10.6 17.2 18.3 19.4 20.4
4.8 12 19.5 20.8 22 23.3
5.1 13.6 22.1 23.5 24.9 26.3
5.4 15.2 24.7 26.3 27.9 29.4
6 18.8 30.5 32.5 34.4 36.4
6.6 22.7 36.9 39.3 41.6 44
7.2 27.1 43.9 46.7 49.5 52.3
7.8 31.8 51.6 54.9 58.2 61.4
8.4 36.8 59.8 63.6 67.4 71.3
9 42.3 68.7 73 77.4 81.8
9.6 48.1 78.1 83.1 88.1 93.1
10.5 57.6 93.5 99.4 105 111
11.5 69 112 119 126 134
12 75.2 122 130 138 145
Remarks: Minimun aggragate breaking force = minimum breaking force x 1.111

ISO 1.6mm Galvanized Metal Wire For Re - Drawing Wire To Produce Wire Rope
