Heavy 5.0mm 1*2 Zinc Coated Steel Wire Strand
Heavy 5.0mm 1*2 Zinc Coated Steel Wire Strand
Heavy 5.0mm 1*2 Zinc Coated Steel Wire Strand
Heavy 5.0mm 1*2 Zinc Coated Steel Wire Strand
Heavy 5.0mm 1*2 Zinc Coated Steel Wire Strand
Heavy 5.0mm 1*2 Zinc Coated Steel Wire Strand
Specifications
Brand Name :
Global
Model Number :
GS-191125
Certification :
ISO9001-2008
Place of Origin :
Anhui,China
MOQ :
10tons
Price :
discuss
Supply Ability :
20000tons/year
Packaging Details :
Standard export packing on reel
Material :
High Carbon Wire Rod
Surface treatment :
Hot-dipped Galvanized
Structure :
1*2,1*3,1*7,1*19
Size :
1.0-5.0mm
Packing :
Packed on wooden/plywooden reel
Loading capacity :
Max.25tons/20"
Description

High Tensile Strength Heavy zinc-coaed steel wire strand

1.Specification

Galvanized Steel Core Wire for ACSR Conductor as per ASTM B 498

Wire Diamater(mm) Diamater Tolerance(mm) Weight of Zinc-coating(g/m2) Stress at 1% Extension,Min(Mpa)

Tensile Strength

Min.(Mpa)

 Elongation in 250mm,Min(%)
1.57-1.90 +0.04,-0.03 210 1310 1450 3.0
Over 1.9-2.3 +0.04,-0.03 220 1310 1450 3.0
Over 2.3-2.7 +0.05,-0.05 230 1280 1410 3.5
Over 2.7-3.1 +0.05,-0.05 240 1280 1410 3.5
Over3.1-3.5 +0.08,-0.05 260 1240 1410 4.0
Over 3.5-3.9 +0.08,-0.05 270 1240 1410 4.0
Over 3.9-4.5 +0.1,-0.08 275 1170 1380 4.0
Over 4.5-4.8 +0.1,-0.08 300 1170 1380 4.0

Galvanized Steel Wire Strand for ACSR Conductor as per ASTM A 475

Norminal Diamater of Strand No. of Wires Diamater of Wire Tolerance of Wire Weight Zinc-coating Breaking Loading
mm - mm mm Kg/Km g/m2 KN
3.18 7 1.04 ±0.05 48 122 8.14
3.97 7 1.32 ±0.05 76 122 13.078
4.76 7 1.57 ±0.08 109 153 17.748
5.56 7 1.83 ±0.08 146 153 24.02
6.35 7 2.03 ±0.08 180 183 29.581
7.14 7 2.36 ±0.10 244 214 39.812
7.94 7 2.64 ±0.10 305 244 49.82
9.52 7 3.05 ±0.10 407 259 68.503
11.11 7 3.68 ±0.13 595 275 92.523
12.7 7 4.19 ±0.13 770 275 119.657

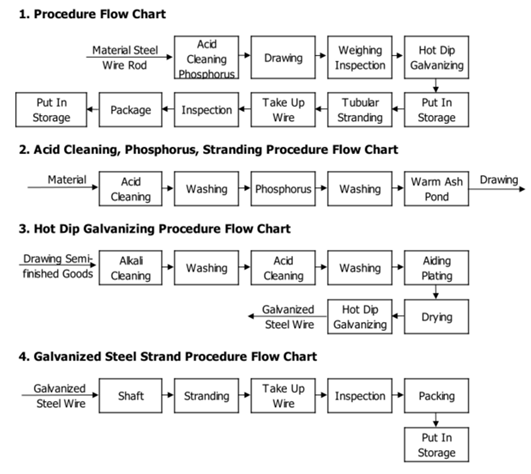

2.Production process

Heavy 5.0mm 1*2 Zinc Coated Steel Wire Strand

3.Application:

Heavy 5.0mm 1*2 Zinc Coated Steel Wire Strand

4.Packing&Loading

Heavy 5.0mm 1*2 Zinc Coated Steel Wire Strand
