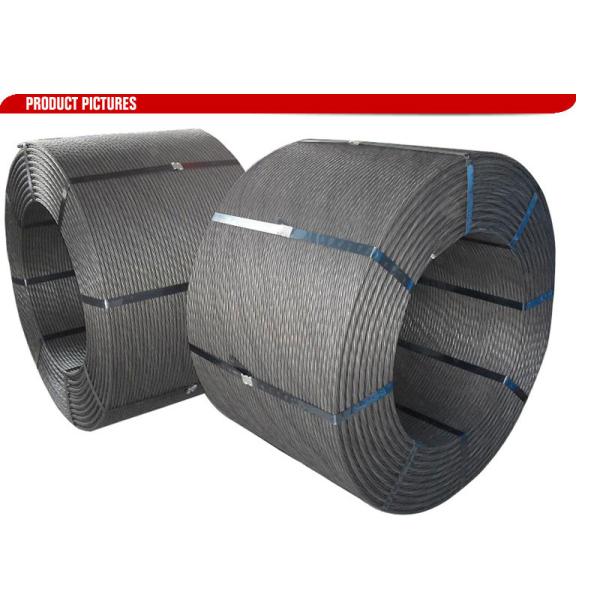

post tensioning high tensile low relaxation steel strands wire concrete1860mpa 15.24mm pc steel wire strand
post tensioning high tensile low relaxation steel strands wire concrete1860mpa 15.24mm pc steel wire strand
post tensioning high tensile low relaxation steel strands wire concrete1860mpa 15.24mm pc steel wire strand
post tensioning high tensile low relaxation steel strands wire concrete1860mpa 15.24mm pc steel wire strand
post tensioning high tensile low relaxation steel strands wire concrete1860mpa 15.24mm pc steel wire strand
post tensioning high tensile low relaxation steel strands wire concrete1860mpa 15.24mm pc steel wire strand
post tensioning high tensile low relaxation steel strands wire concrete1860mpa 15.24mm pc steel wire strand
post tensioning high tensile low relaxation steel strands wire concrete1860mpa 15.24mm pc steel wire strand
Specifications
Brand Name :
Litong Global
Model Number :
LT-049
Certification :
ISO9001-2008
Place of Origin :
Anhui,China
MOQ :
Negotiable
Price :
Negotiable
Supply Ability :
800tons/day
Packaging Details :
Standard export packing in coil on 2 pallets
Steel Grade: :
77B/82B
Standard: :
AISI, ASTM, BS, DIN, GB, JIS
Alloy Or Not: :
Non-alloy
Tensile Strehth: :
1860MPA
Material: :
SWRH82B
Description

Specifications

1.Material : 77B/82B
2.Delivery:7 days
3.T/S: 1860 Mpa
4.Payment:L/C or T/T
5.MOQ: 10 tons

post tensioning high tensile steel strands wire concrete1860mpa 15.24mm pc steel wire strand

post tensioning high tensile low relaxation steel strands wire concrete1860mpa 15.24mm pc steel wire strand

ASTM A416

Grade Nominal Dia. Tolerance (mm) Cross Section Area (Sn/mm2) Re. Mass per 1m (g/m) Minimum Breaking Load (Fm/KN) Min. Load at 1% Extension (Fp0.2/KN) (L0≥500mm) Agt Elongation Max Load not less than (%) The Relaxation at 1000 Hours (r/%)
(In) (mm)
270 3/8 9.53

0.65

-0.15

 54.84 432 102.3 92.1 3.5 2.5
7/16 11.11 74.19 582 137.9 124.1
1/2 12.70 98.71 775 183.7 165.3
3/5 15.24 140.00 1102 260.7 234.6

BS 5896

Grade Nominal Dia. (mm) Tolerance (mm) Cross Section Area (Sn/mm2) Re. Mass per 1m (g/m) Tensile Strength not less than (Rm/MPa) Minimum Breaking Load (Fm/KN) Min. Load at 1% Extension (Fp0.2/KN) (L0≥500mm) Agt Elongation Max Load not less than (%) The Relaxation at 1000 Hours (r/%)
Standard 7wire 9.3

0.3

-0.15

 52 408 1770 92 81 3.5 2.5
11.0 71 557 1770 125 110
12.5

0.4

-0.2

 93 730 1770 164 114
15.2 139 1090 1670 232 204
Super 7Wire 9.6

0.3

-0.15

 55 432 1860 102 90
11.3 75 590 1860 139 122
12.9

0.4

-0.2

 100 785 1860 186 163
15.7 150 1180 1770 265 233

post tensioning high tensile low relaxation steel strands wire concrete1860mpa 15.24mm pc steel wire strand

FAQ

Q:If found the product with substardard quality.How can you solve it?
A:The buyer will be required to submit proof file,picture,ideo of the said substandard cargo send to us first. We can also send our engineer to your filed to check it directly,if need any.

Q:If sample available?
A:Yes,we can offer sample free of charge.But the express freight should be on buyer’s account.

Q:If I order big quantity,what’s the good price?
A:Please send the details enquiry to us ,such as the Item Number,Quantity for each item, Quality request,Logo,Payment Terms,Transport method,Discharge place etc.We will make the accurate quotation to you as soon as possible.


If you are interested in our products, pls feel free to tell me the diameter or nominal section area or the nick name to me. Then,I will send our best quotation to you.
