Specifications
Brand Name :
Litong Global
Model Number :
LT-161130
Certification :
ISO9001-2008
Place of Origin :
Anhui,China
MOQ :
Negotiable
Price :
Negotiable
Supply Ability :
400tons/day
Packaging Details :
Standard export seaworty packing in coil
Material :
High Carbon Wire Rod
Tensile Strength :
1000-1750MPA
Weight of zinc-coating :
100-350g/m2
Main size :
1.0mm-4.8mm
Main construction of strand :
1*7,1*19
Packing :
standard export seaworthy packing in coil
Loading capacity :
25tons/20"
Certificate :
ISO9001-2008
Description

1.57mm/1.68mm/2.68mm/3.05mm/3.09mm/3.15mm Galvanized Steel Core Wire for ACSR Conductor

High Tensile Galvanised Steel Cable , Bridge Strand Guy Wire 1.0mm-4.8mm Main Size

Product Range

Our Galvanized Steel Wire &Strand include:

.Main Single Wire Size:1.0mm-4.8mm

.Structure of Strand:1*7 &1*19

.Main Production Standard:ASTM B 498,IEC888,GB/T3428, YB(T)13-83,ASTM B 80,ASTM B 500 ,ASTM A 475,BS183,YB/T5004,GB/T-20492,ASTM B 803,ASTM A 640 etc.

.Application:ACSR Conductor,Telecommission,Guy Wire,Messenger,Overhead transmission,stay wire,etc.

High Tensile Galvanised Steel Cable , Bridge Strand Guy Wire 1.0mm-4.8mm Main Size

High Tensile Galvanised Steel Cable , Bridge Strand Guy Wire 1.0mm-4.8mm Main Size

Standard:

Technical Parameters

Galvanized Steel Wire as per ASTM B 498

Wire Diamater(mm) Diamater Tolerance(mm) Weight of Zinc-coating(g/m2) Stress at 1% Extension,Min(Mpa)

Tensile Strength

Min.(Mpa)

 Elongation in 250mm,Min(%)
1.57-1.90 +0.04,-0.03 210 1310 1450 3.0
Over 1.9-2.3 +0.04,-0.03 220 1310 1450 3.0
Over 2.3-2.7 +0.05,-0.05 230 1280 1410 3.5
Over 2.7-3.1 +0.05,-0.05 240 1280 1410 3.5
Over3.1-3.5 +0.08,-0.05 260 1240 1410 4.0
Over 3.5-3.9 +0.08,-0.05 270 1240 1410 4.0
Over 3.9-4.5 +0.1,-0.08 275 1170 1380 4.0
Over 4.5-4.8 +0.1,-0.08 300 1170 1380 4.0

Galvanized Steel Wire Strand as per ASTM A 475

Norminal Diamater of Strand No. of Wires Diamater of Wire Tolerance of Wire Weight Zinc-coating Breaking Loading
mm - mm mm Kg/Km g/m2 KN
3.18 7 1.04 ±0.05 48 122 8.14
3.97 7 1.32 ±0.05 76 122 13.078
4.76 7 1.57 ±0.08 109 153 17.748
5.56 7 1.83 ±0.08 146 153 24.02
6.35 7 2.03 ±0.08 180 183 29.581
7.14 7 2.36 ±0.10 244 214 39.812
7.94 7 2.64 ±0.10 305 244 49.82
9.52 7 3.05 ±0.10 407 259 68.503
11.11 7 3.68 ±0.13 595 275 92.523
12.7 7 4.19 ±0.13 770 275 119.657

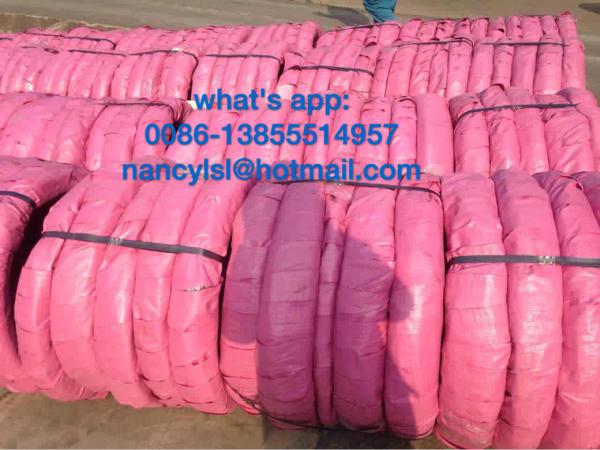

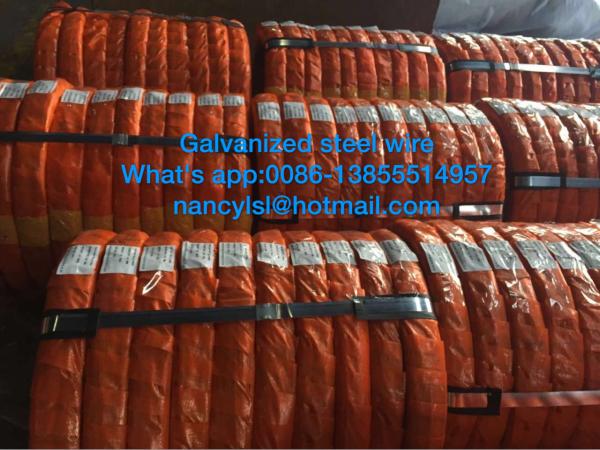

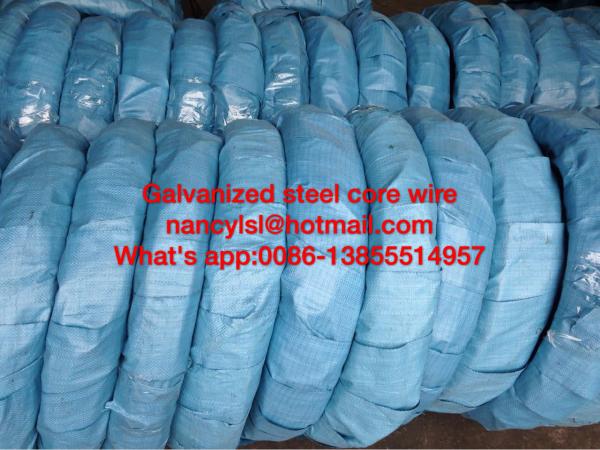

Packing&Loading:

High Tensile Galvanised Steel Cable , Bridge Strand Guy Wire 1.0mm-4.8mm Main Size

High Tensile Galvanised Steel Cable , Bridge Strand Guy Wire 1.0mm-4.8mm Main Size

Welcome to enquiry our Galvanized steel core wire for ASCR Conductor

Attn:Ms Nancy

What'app:0086-13855514957

E-mail:nancylsl@hotmail.com
