Low Relaxation Galvanized Stay Stranded Steel Wire For Mining And Stay Cable Bridge
Low Relaxation Galvanized Stay Stranded Steel Wire For Mining And Stay Cable Bridge
Low Relaxation Galvanized Stay Stranded Steel Wire For Mining And Stay Cable Bridge
Low Relaxation Galvanized Stay Stranded Steel Wire For Mining And Stay Cable Bridge
Low Relaxation Galvanized Stay Stranded Steel Wire For Mining And Stay Cable Bridge
Low Relaxation Galvanized Stay Stranded Steel Wire For Mining And Stay Cable Bridge
Low Relaxation Galvanized Stay Stranded Steel Wire For Mining And Stay Cable Bridge
Low Relaxation Galvanized Stay Stranded Steel Wire For Mining And Stay Cable Bridge
Specifications
Brand Name :
Litong Global
Model Number :
LT-032
Certification :
ISO9001-2008
Place of Origin :
Anhui,China
MOQ :
Negotiable
Price :
Negotiable
Supply Ability :
400tons/day
Packaging Details :

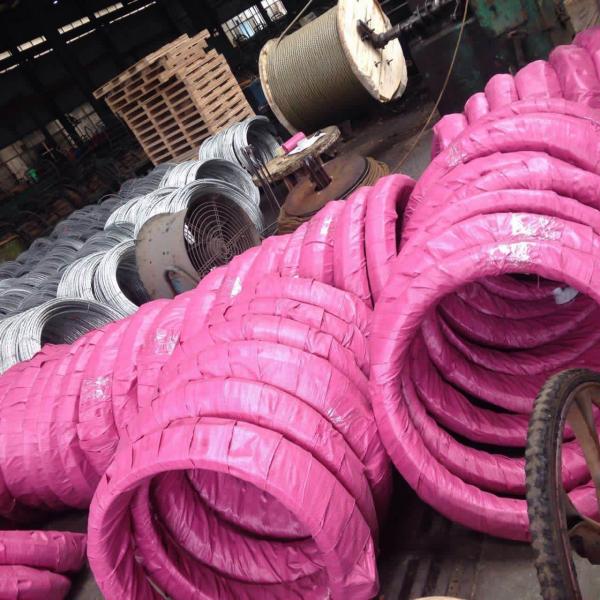

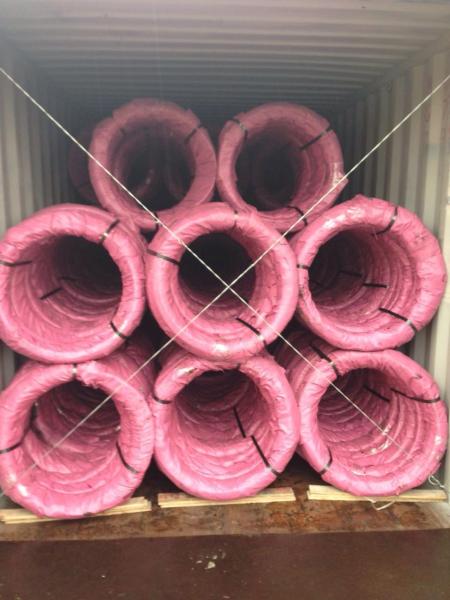

Standard export packing in coil or on drum
STEEL GRADE :
HIGH CARBON STEEL
STANDARD :
ASTM,BS,IEC
TYPE :
GALVANIZED
ALLOY OR NOT :
NON-ALLOY
SPECIAL USE :
FREE CUT STEEL
SURFACE :
HOT-DIPPED GALVANIZED
MODEL NUMBER :
1*7,1*19
Description

Specifications

Galvanzied steel wire strand
Galvanized steel wire strand for ground wires, steel core for ACSR, Stay wires ,Guy wires

GALVANIZED STEEL WIRE STRAND SPECIFICATION AS BELOW:

1. Galvanzied steel wire strand for

ground wires, steel core for ACSR, Stay wires ,Guy wires, Messengers

2. Galvanized steel wire strand Specification: 1X7, 3.00---12.60MM

1X19, 5.00---19.00MM

3. Galvanized steel wire strand Standard: ASTM-A475(03), BS 183

4. Galvanized steel wire strand packing: 5000ft/1524mts/reel

ASTM A 475-2003
Norminal Diameter No.of wires Diameter of wire Tolerance of wiere Weight Zinc coating Broken Loading
Inch mm pcs mm ± mm Kgs/100M G/M2 Lbf Kn
1/8" 3.18 7 1.04 0.05 48 122 1830 8.14
5/32" 3.97 7 1.32 0.05 76 122 2940 13.078
3/16" 4.76 7 1.57 0.08 109 153 3990 17.748
7/32" 5.56 7 1.83 0.08 146 153 5400 24.02
1/4" 6.35 7 2.03 0.08 180 183 6650 29.581
9/32" 7.14 7 2.36 0.10 244 214 8950 39.812
5/16" 7.94 7 2.64 0.10 305 244 11200 49.82
3/8" 9.52 7 3.05 0.10 407 259 15400 68.503
7/16" 11.11 7 3.68 0.13 595 275 20800 92.523
1/2" 12.7 7 4.19 0.13 770 275 26900 119.657
9/16" 14.29 7 4.78 0.13 1000 305 35000 155.688
5/8" 15.88 7 5.26 0.13 1211 305 42400 188.605

Galvanized Steel Wire Strand BS183:1972

Number of

Wires/Dia.

Approx.Strand

Dia.

 Minimum Breaking Load of Strand

Approx

Weight
Grade 350 Grade 480 Grade 700 Grade 850 Grade 1000 Grade 1150 Grade 1300
mm kN kN kN kN kN kN kN Kg/km
3/1.80 3.9 2.65 3.66 - - - - - 60
3/2.65 5.7 5.8 7.95 - - - - - 130
3/3.25 7 8.7 11.95 - - - - - 195
3/4.00 8.6 13.2 18.1 - - - - - 295
4/1.80 4.4 3.55 4.9 - - - - - 80
4/2.65 6.4 7.7 10.6 - - - - - 172
4/3.25 7.9 11.6 15.9 - - - - - 260
4/4.00 9.7 17.6 24.1 35.2 - - - - 390
5/1.50 4.1 3.1 4.24 6.18 - - - - 69
5/1.80 4.9 4.45 6.1 8.9 - - - - 95
5/2.65 7.2 9.65 13.25 19.3 - - - - 220
5/3.25 8.8 14.5 19.9 29 - - - - 320
5/4.00 10.8 22 30.15 43.95 - - - - 490
7/0.56 1.7 0.6 0.83 1.2 - 1.7 1.98 2.24 14
7/0.71 2.1 0.97 1.33 1.94 - 2.75 3.19 3.6 28
7/0.85 2.6 1.39 1.9 2.8 - 3.95 4.57 5.15 31
7/0.90 2.7 1.55 2.14 3..1 - 4.45 5.12 5.8 35
7/1.00 3 1.92 2.64 3.85 - 5.5 6.32 7.15 43
7/1.25 3.8 3.01 4.1 6 - 8.55 9.88 11.15 67
7/1.40 4.2 3.75 5.17 7.54 9.16 10.75 12.35 14 84
7/1.60 4.8 4.9 6.75 9.85 11.95 14.1 16.2 18.3 110
7/1.80 5.4 6.23 8.55 12.45 - 17.8 20.5 23.2 140
7/2.00 6 7.7 10.55 15.4 - 22 25.3 28.6 170
7/2.36 7.1 10.7 14.7 21.4 - 30.6 35.2 39.8 240
7/2.65 8 13.5 18.5 27 - 38.6 44.4 50.2 300
7/3.00 9 17.3 23.75 34.65 - 49.5 56.9 64.3 392
7/3.15 9.5 19.1 26.2 38.2 - 54.55 62.75 70.9 430
7/3.25 9.8 20.3 27.85 40.65 - 58.05 66.8 75.5 460
7/3.65 11 25.6 35.15 51.25 - 73.25 84.2 95.2 570
7/4.00 12 30.9 42.2 61.6 - 88 101 114 690
7/4.25 12.8 34.75 47.65 69.5 - 99.3 114 129 780
7/4.75 14 43.4 59.45 86.8 - 124 142.7 161.3 970
19/1.00 5 5.22 7.16 10.45 - 14.92 17.16 19.4 120
19/1.25 6.3 8.16 11.19 16.32 - 23.32 26.81 30.31 180
19/1.40 7 10.24 14.04 20.47 - 29.25 33.64 38.02 230
19/1.60 8 13.37 18.35 26.75 - 38.2 43.93 49.66 300
19/2.00 10 20.9 28.65 41.78 50.74 59.69 68.64 77.6 470
19/2.50 12.5 32.65 44.8 65.29 79.28 93.27 107.3 121.3 730
19/3.00 15 47 64.5 94 114.1 134.3 154.5 174.6 1050
19/3.55 17.8 65.8 90.27 131.6 159.9 188 216.3 244.5 1470
19/4.00 20 83.55 114.6 167.1 203 238.7 274.6 310.4 1870
19/4.75 23.8 117.85 161.4 235.7 286 336.7 387.2 437.7 2630
7/1.60 4.8 4.9 6.75 9.85 11.95 14.1 16.2 18.3 110
7/1.80 5.4 6.23 8.55 12.45 - 17.8 20.5 23.2 140
7/2.00 6 7.7 10.55 15.4 - 22 25.3 28.6 170
7/2.36 7.1 10.7 14.7 21.4 - 30.6 35.2 39.8 240
7/2.65 8 13.5 18.5 27 - 38.6 44.4 50.2 300
7/3.00 9 17.3 23.75 34.65 - 49.5 56.9 64.3 392
7/3.15 9.5 19.1 26.2 38.2 - 54.55 62.75 70.9 430
7/3.25 9.8 20.3 27.85 40.65 - 58.05 66.8 75.5 460
7/3.65 11 25.6 35.15 51.25 - 73.25 84.2 95.2 570
7/4.00 12 30.9 42.2 61.6 - 88 101 114 690
7/4.25 12.8 34.75 47.65 69.5 - 99.3 114 129 780
7/4.75 14 43.4 59.45 86.8 - 124 142.7 161.3 970
19/1.00 5 5.22 7.16 10.45 - 14.92 17.16 19.4 120
19/1.25 6.3 8.16 11.19 16.32 - 23.32 26.81 30.31 180
19/1.40 7 10.24 14.04 20.47 - 29.25 33.64 38.02 230
19/1.60 8 13.37 18.35 26.75 - 38.2 43.93 49.66 300
19/2.00 10 20.9 28.65 41.78 50.74 59.69 68.64 77.6 470
19/2.50 12.5 32.65 44.8 65.29 79.28 93.27 107.3 121.3 730
19/3.00 15 47 64.5 94 114.1 134.3 154.5 174.6 1050
19/3.55 17.8 65.8 90.27 131.6 159.9 188 216.3 244.5 1470
19/4.00 20 83.55 114.6 167.1 203 238.7 274.6 310.4 1870

. Application
Used as overhead ground wire or static wire on transmission lines, as pole or structure guy wires, and as messenger cable, fields and pastures division, animal containment.

FAQ

Q:If found the product with substardard quality.How can you solve it?
A:The buyer will be required to submit proof file,picture,ideo of the said substandard cargo send to us first. We can also send our engineer to your filed to check it directly,if need any.

Q:If sample available?
A:Yes,we can offer sample free of charge.But the express freight should be on buyer’s account.

Q:If I order big quantity,what’s the good price?
A:Please send the details enquiry to us ,such as the Item Number,Quantity for each item, Quality request,Logo,Payment Terms,Transport method,Discharge place etc.We will make the accurate quotation to you as soon as possible.


If you are interested in our products, pls feel free to tell me the diameter or nominal section area or the nick name to me. Then,I will send our best quotation to you.
