Middle And High Carbon ACSR Steel Messenger Cable Wire Strand For ABC Cable
Middle And High Carbon ACSR Steel Messenger Cable Wire Strand For ABC Cable
Middle And High Carbon ACSR Steel Messenger Cable Wire Strand For ABC Cable
Middle And High Carbon ACSR Steel Messenger Cable Wire Strand For ABC Cable
Specifications
Place of Origin :
Anhui,China
Brand Name :
Litong Global
Certification :
ISO9001 and other 3rd party Inspection report
Model Number :
LT-160702
MOQ :
Negotiable
Price :
Negotiable
Packaging Details :
In Coil or on Drum
Delivery Time :
10 days after confirmed order
Payment Terms :
TT/LC
Supply Ability :
400tons/day
Steel Grade :
Middle and High Carbon Wire Rod
Wire Gauge :
1.0-4.8mm
Type :
Galvanized
Alloy Or Not :
Non-alloy
Special Use :
Cold Heading Steel
Application :
ACSR, Ground Wire, Suspension Bracket, Communication Cable, Stay Wire.
Standard :
AISI|ASTM|BS|DIN|GB|JIS
Description

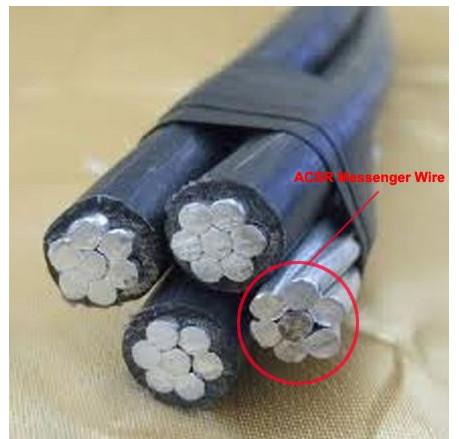

CSR Messenger Wire for ABC Cable

ACSR Messenger Wire (Zinc Coating Galvanized ACSR Steel Strand) for ABC Cable

1. Material: 45#, 60#, 65#, 70#, 72B, 80#, 82B, 65Mn

2. Surface Coating: Galvanized

3. Characteristic: Good galvanized, good corrosion prevention
Excellent mechanical properties

4. Packing type:Spool

5. Application: Being used for overhead ground wire in electric communication,

Messenger Wire,

Bare Neutral Messenger or bare ACSR messenger in ABC Cable

6. Remarks during use and handling:

a. During transportation, handle softly and carefully, avoid bumping and damaging the outer packing materials. Moisture and rain prohibited. Steel strand must be stored in dry and well ventilated indoors.

b. Pay attention to the direction of steel strand when paying-off. Be sure the spool is rotating freely as to achieve identical tension of all the steel strand

c. In case of batch usage, the remaining should be repacked to avoid oxidizing of the surface

Technical parameters

Structure Diameter(mm) Tensile Strength MPa
1X7 3.0-12 1175, 1270, 1370, 1470, 1570
1X19 8.0-20

1175, 1270, 1370, 1470, 1570

NOTE: Providing engineer design as per customer's request.
