0.5 / 12.7mm PC Steel Wire Strand , Low Relaxation Strand Non Rotating Grade 1860/270
0.5 / 12.7mm PC Steel Wire Strand , Low Relaxation Strand Non Rotating Grade 1860/270
0.5 / 12.7mm PC Steel Wire Strand , Low Relaxation Strand Non Rotating Grade 1860/270
0.5 / 12.7mm PC Steel Wire Strand , Low Relaxation Strand Non Rotating Grade 1860/270
0.5 / 12.7mm PC Steel Wire Strand , Low Relaxation Strand Non Rotating Grade 1860/270
0.5 / 12.7mm PC Steel Wire Strand , Low Relaxation Strand Non Rotating Grade 1860/270
Specifications
Brand Name :
Litong Global
Model Number :
KT-20180708
Certification :
ISO9001-2008
Place of Origin :
Anhui,China
MOQ :
10tons
Price :
discuss
Supply Ability :
800tons/day
Packaging Details :
standard export packing in coil on 2 pallets
Material: :
High Carbon Wire Rod 82B
Structure: :
1x7
Size: :
0.5"/12.7mm,0.6"/15.24mm
Grade: :
1860/270
Standard: :
ASTM A 416
Packing: :
2.5-3.2tons/coil on 2 pallets
Loading capacity: :
25tons/20"
Description

0.5" / 12.7mm PC Steel Wire Strand , Low Relaxation Strand Non Rotating Grade 1860/270

0.5"/12.7mm PC Steel Wire Strand(Non-Rotating) Grade 1860/270
Product Description

1*7 Wires Low Relaxation PC Strand
Description:
High tensile low relaxation steel strand for prestressed concrete
Specification:
Raw Material: High carbon steel wire rod SWRH 82B

Sizes:12.5, 12.7, 12.9, 15.2, 15.7, 17.8mm
Standards: ASTM A416-2006, ASTM A910-2005, ABNT NBR 7483:2008, AS 1311(Australia), AS/NZS 4672.1, BS5896-1980, EN10138-3, GB/T5224-2003, IS6006-1983, JISG3536, KSD7002, UNE36094-97 (Spain), NEN3868
Technical date
7-Wire Uncoated Steel Strand for Prestressed Concrete as per ASTM A 416

Min.Breaking Strength

Nominal
Dia.

Dia.
Tolerance

Norminal
Steel
Area

Nominal Weight

Min.
Breaking Load

Min.Load
at 1%Extension

Min.Elongation
Lo≥610mm

0.7 G.U.T.S
1000hNorminal Relaxation

MPAmmmmMm2Kg/KmKNKN%%
18609.53



+0.66,-0.15

54.84432102.392.1



≥3.5



≤2.5

11.1174.19582137.9124.1
12.7098.7775183.7165.3
15.24140.01102260.7234.6
17.80190.01492353.0318.0
200012.70+0.66,-0.1598.7775197.4177.7≥3.5≤2.5
15.24140.01102280.0252.0


7-Wire Uncoated Steel Strand for Prestressed Concrete as per GB/T5224

Min.Breaking Strength

Nominal
Dia.

Dia.
Tolerance

Norminal
Steel
Area

Nominal Weight

Min.
Breaking Load

Min.Load
at 1%Extension

Min.Elongation
Lo≥610mm

0.7 G.U.T.S
1000hNorminal Relaxation

MPAmmmmMm2Kg/KmKNKN%%
18609.50+0.30,-0.1554.843210286.6



≥3.5



≤2.5

11.1074.2580138117
12.70



+0.40,-0.20

98.7775184156
15.201401101259220
15.701501178279251
17.801911500353318
196012.70+0.40,-0.2098.7775193174≥3.5≤2.5
15.201401101274247


Usages:
Pre-stressing steels apply to post-tensioned and pre-tensioned concrete structure in the follow civil engineering, building construction and infrastructure projects: bridges; railway sleeper, subway track board; airport; industrial buildings, commercial buildings, residential housing foundations; PC poles, piles, beams, girders, slabs, double-T board, hollow floor board, floor, parking decks, PHC, PPCP; electric power, nuclear power station; ports, dams, water project, sewage treatment, swimming pool; rock-coil anchoring, side slope stabilization, coil mine; storage tank for national gas, oil, grain; stadiums, TV tower etc.

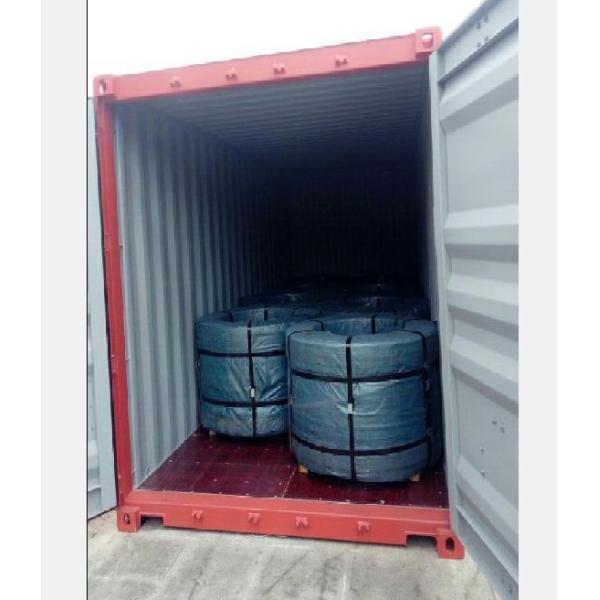

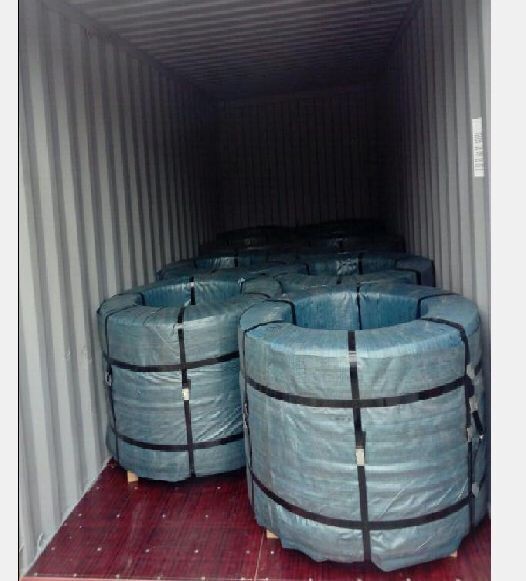

Loading:
0.50.5
