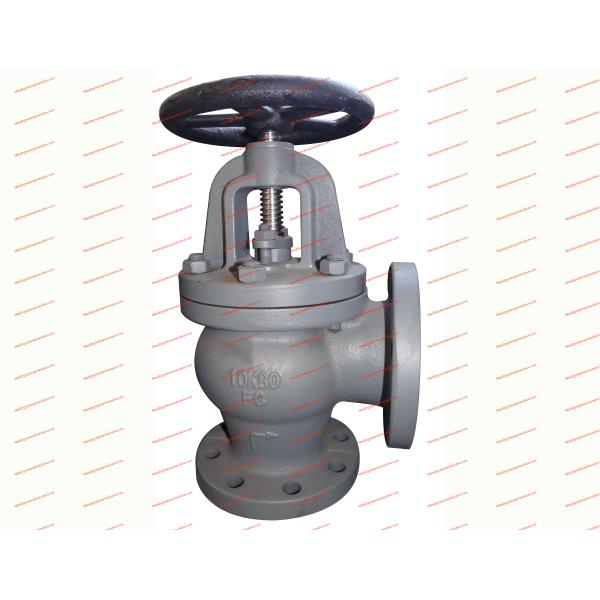

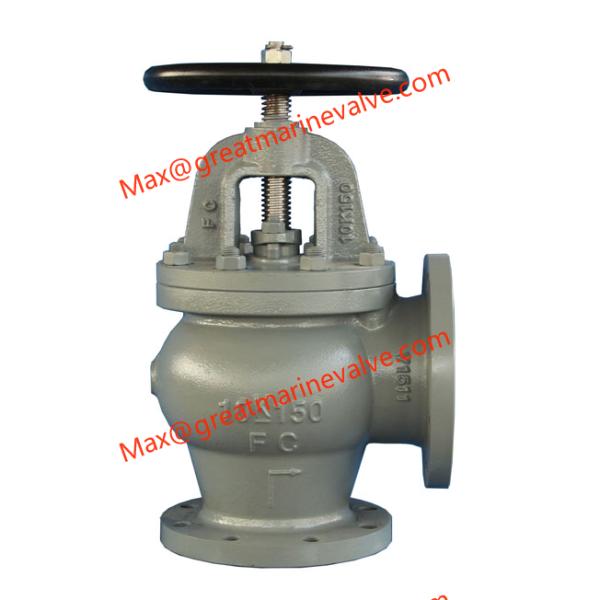

JIS F7308 MARINE CAST IRON ANGLE VALVE 10K 2 to 14 DN50-DN450
JIS F7308 MARINE CAST IRON ANGLE VALVE 10K 2 to 14 DN50-DN450
JIS F7308 MARINE CAST IRON ANGLE VALVE 10K 2 to 14 DN50-DN450
JIS F7308 MARINE CAST IRON ANGLE VALVE 10K 2 to 14 DN50-DN450
JIS F7308 MARINE CAST IRON ANGLE VALVE 10K 2 to 14 DN50-DN450
JIS F7308 MARINE CAST IRON ANGLE VALVE 10K 2 to 14 DN50-DN450
Specifications
Brand Name :
OEM
Model Number :
JIS F7308 cast iron Angle valve 10K
Certification :
ABS,BV,CCS,DNV,KR
Description

JIS F7308 MARINE CAST IRON 10K ANGLE GLOBE VALVE 10K

JIS F7308 Marine Cast Iron 10K Angle Globe Valve

Marine Cast Iron Globe Valve JIS F7307 10K

It is suitable for the pipe system with the medium fresh water, air & other gas, oil and steam with the temperature not over 205 centigrade degree.

Design Standard: JIS F7307-1996

Test Standard: JIS 7400-1996

Hydraulic Test Pressure: Body-2.1Mpa, Seat-1.54Mpa

Flange size as per JIS B2220 -10K

Main Material:

Body: Cast Iron (FC200)

Bonnet: Cast Iron (FC200)

Packing Gland: Bronze (BC6) or Stainless Steel (2Cr13)

Stem: C3771BD (Brass) or SUS403

Seat: Bronze (BC6) or Stainless Steel (2Cr13, SCS2)

Disc: Bronze (BC6) or Stainless Steel (2Cr13, SCS2)

Gasket: non-asbestos

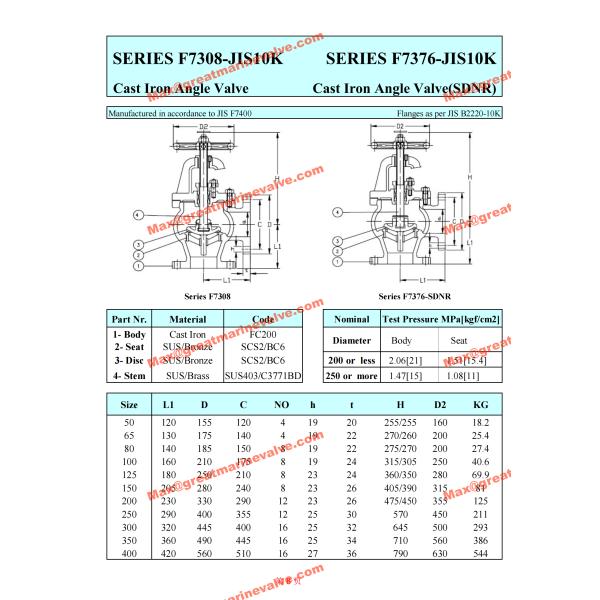

IMPA CODE SIZE WEIGHT
IMPA 750246 F7308 10K50 18.20
IMPA 750247 F7308 10K65 25.40
IMPA 750248 F7308 10K80 27.40
IMPA 750249 F7308 10K100 40.60
IMPA 750250 F7308 10K125 69.90
IMPA 750251 F7308 10K150 81.00
IMPA 750252 F7308 10K200 125.00
IMPA 750253 F7308 10K250 211.00
IMPA 750254 F7308 10K300 293.00
IMPA 750255 F7308 10K350 386.00
IMPA 750256 F7308 10K400 544.00
JIS F7308 MARINE CAST IRON ANGLE VALVE 10K 2
JIS F7308 MARINE CAST IRON ANGLE VALVE 10K 2

JIS F7308 MARINE CAST IRON ANGLE VALVE 10K 2

JIS F7308 MARINE CAST IRON ANGLE VALVE 10K 2

JIS F7308 MARINE CAST IRON ANGLE VALVE 10K 2
