Specifications
Brand Name :
OASIS
Certification :
ISO9001:2015 ISO14001:2015
Place of Origin :
CHINA
MOQ :
10 Meter/Meters
Price :
Negotiation
Payment Terms :
L/C, T/T
Supply Ability :
6000 Meter/Meters per Month
Delivery Time :
Within 35 days
Packaging Details :
Wooden cases or pallet or bundle or container or according to clients' requirements
Screen Dimension :
Customized Size
Diameter :
Customizable
Hole Shape :
Round
Corrosion Resistance :
High
Unit Length :
3m - 12m
Technique :
Perforated
Corrosionresistance :
High
Color :
bright gray
Productname :
Stainless Steel Well Screen
End Connection :
welde or threaded coupling, flange
Description

Product Description

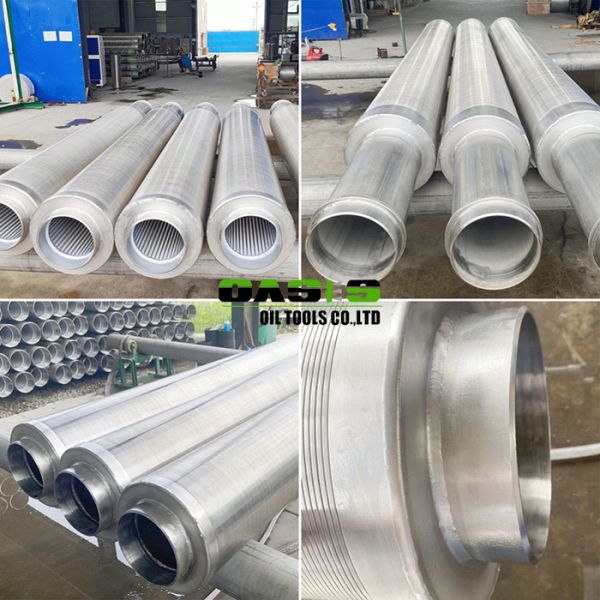

Our factory-built Gravel Prepacked Well Screens are the industry-trusted all-in-one sand control solution for oil & gas, water well, geothermal, and CBM operations. Purpose-engineered for unconsolidated, high-sand formations and horizontal/deviated wellbores, each unit integrates three core components: a high-strength perforated base pipe, a continuous wire-wrapped outer screen, and a uniformly compacted, hermetically sealed gravel filter layer between them. This multi-stage filtration system delivers superior fine sand retention, minimizes sand production, reduces downhole pressure drop, and eliminates the cost, complexity, and placement risks of on-site gravel packing.
Customizable Stainless Steel Well Screen with API BTC LTC STC Thread End Connections and High Strength Perforated Base Pipe

Technical Specifications

All units comply with API 5CT, and ISO standards, with full custom engineering available for your well requirements.
Core Parameter Standard Specifications Customization Options
Base Pipe OD 2-3/8" to 13-3/8" (60.3mm - 339.7mm) 1.9" to 20" (48.3mm - 508mm)
Base Pipe Material API 5CT J55/K55/N80 Carbon Steel 316L, Duplex 2205/2507, Hastelloy, Inconel
Screen Slot Size 0.006" to 0.250" (0.15mm - 6.35mm) Precision slotted to your formation analysis
Gravel Media API RP 19E Compliant Quartz Sand Ceramic gravel, resin-coated sand, custom mesh
End Connections API BTC/LTC/STC Threads Premium VAM TOP, Hydril, custom threaded connections
Standard Length 10ft, 20ft, 40ft (3m, 6m, 12m) Custom lengths per well design
Working Pressure Up to 10,000 PSI (69MPa) HPHT ratings up to 20,000 PSI (138MPa)

Key Advantages

  • Superior Fine Sand Retention: Multi-stage filtration locks in formation fines, ideal for unconsolidated high-sand reservoirs, eliminating sand-related equipment damage and production loss
  • Lower Operational Costs: Factory-preassembled design cuts rig time by up to 70%, eliminates on-site gravel pumping services, and reduces costly workover interventions
  • Optimized Production Performance: Uniform gravel pack and precision slot design minimize pressure drop, maintain balanced inflow, and preserve peak well productivity long-term
  • Broad Well Compatibility: Perfect for horizontal, deviated, and vertical wells, with full adaptability for oil & gas, water well, geothermal, and CBM applications
  • API Compliant Durability: Built to industry standards with corrosion-resistant alloy options, delivering reliable performance in H2S/CO2, high-chloride, and HPHT downhole environments
  • Guaranteed Consistent Performance: 100% factory-tested before shipment, eliminating the placement risks and variability of field gravel packing

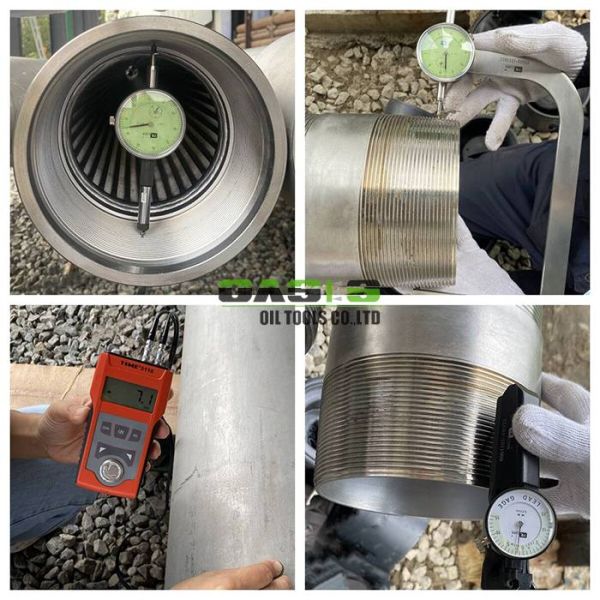

Quality Inspection

All our Gravel Prepacked Well Screens are manufactured under ISO 9001 quality management systems, with a strict multi-stage inspection protocol:
  1. Raw material certification with full MTR verification for all incoming steel and gravel media
  2. 100% dimensional and visual inspection, including precision slot tolerance validation
  3. Non-destructive testing (NDT) for all welds, including liquid penetrant and ultrasonic testing
  4. Hydrostatic pressure testing for every completed screen assembly, per API standards
  5. Gravel pack uniformity and compaction validation to eliminate voids and channeling risks

​

Customizable Stainless Steel Well Screen with API BTC LTC STC Thread End Connections and High Strength Perforated Base Pipe

Frequently Asked Questions (FAQ)

Q: What formations are gravel prepacked well screens best for?

A: They are purpose-built for unconsolidated, high-sand, and weakly consolidated formations, and are the optimal sand control solution for horizontal and highly deviated wellbores where field gravel packing is not feasible.

Q: What’s the difference between prepacked well screens and on-site gravel packing?

A: Factory-prepacked screens come with a fully sealed, uniformly compacted gravel layer, 100% tested before shipment. This eliminates the high costs, rig time, and placement risks (channeling, incomplete packing) of on-site gravel pumping operations.

Q: Are your screens API compliant?

A: Yes. All our gravel prepacked well screens are manufactured to meet API SPEC 19SS, API 5CT, API RP 19E, and ISO 17824 international standards, with full documentation provided with every shipment.

Q: Can you customize screens for my specific well?

A: Absolutely. We offer full custom engineering, including tailored gravel mesh sizes, slot openings, material grades, dimensions, and end connections, based on your formation sand analysis and well design.

Q: What applications can these screens be used for?

A: Our prepacked sand control screens are widely used in oil & gas production wells, water wells, geothermal wells, coal bed methane (CBM) wells, and injection wells across the globe.
