Wire Wrapped Continuous Slot Screen For Deep Well Drilling Ss Material
Wire Wrapped Continuous Slot Screen For Deep Well Drilling Ss Material
Wire Wrapped Continuous Slot Screen For Deep Well Drilling Ss Material
Wire Wrapped Continuous Slot Screen For Deep Well Drilling Ss Material
Wire Wrapped Continuous Slot Screen For Deep Well Drilling Ss Material
Wire Wrapped Continuous Slot Screen For Deep Well Drilling Ss Material
Wire Wrapped Continuous Slot Screen For Deep Well Drilling Ss Material
Wire Wrapped Continuous Slot Screen For Deep Well Drilling Ss Material
Wire Wrapped Continuous Slot Screen For Deep Well Drilling Ss Material
Wire Wrapped Continuous Slot Screen For Deep Well Drilling Ss Material
Specifications
Brand Name :
OASIS
Model Number :
9inch Johnson strainer screen
Certification :
ISO9001
Place of Origin :
XINXIANG
MOQ :
1 METER
Price :
Negotiation
Supply Ability :
1000meters/month
Delivery Time :
15days
Packaging Details :
Bubble bags
TYPE :
Wire Wrap Continuous Slot Well Screens
connection type :
weld/thread/flange/plain
.Hole Shape :
Vee shaped
item :
Continuous Slot Screen
Description

Continuous Slot Screen

Deep Well Drilling Stainless Steel Wire Wrap Continuous Slot Well Screens

Oaiss which is the munfacturer of the water well screen, which also could used as oil well screen, wedge wire screen, water strainer, johnson screen, v-shaped screen, vee wedge wrapped screen, wire wrapped screen, wire point pipe,etc.

Wire Wrapped Continuous Slot Screen For Deep Well Drilling Ss Material

Specifications of Wire Wrap Continuous Slot Well Screens

Slot size (mm)

0.10, 0.15, 0.2, 0.25, 0.30 - 3mm

Lengths

6Mts. & 3Mts, we suggest 5.8m(adapt to the container)

Grades

Different grades suitable for tube well depths up to 300ft, 600ft, 900ft , and 1500ft.

Material

Low Carbon Galvanized Steel (LCG) and Stainless Steel (SUS304, SUS304L, SUS316, SUS316L) or can be made according to the customers requirements

Diameter

ranging from 15 to 275mm

End Connection

Plain beveled ends for butt welding or threaded.(We can customize)

Open area

up to 60%

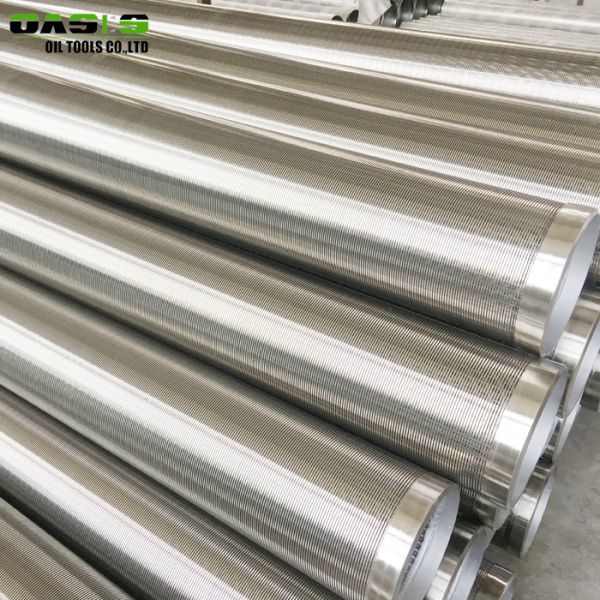

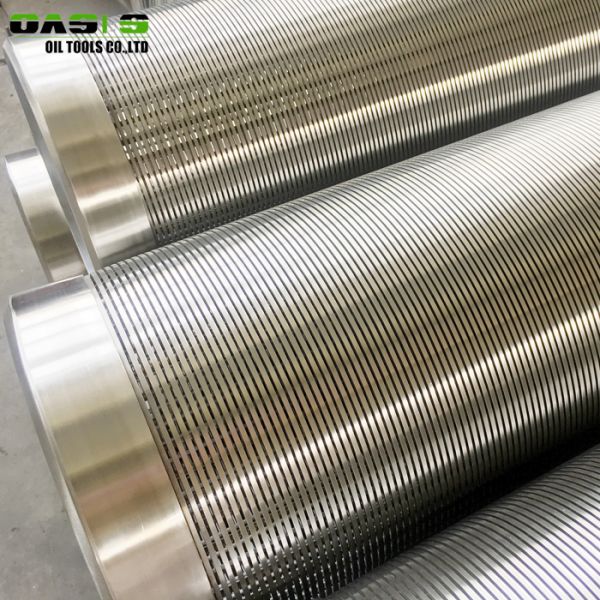

Photo shows of Wire Wrap Continuous Slot Well Screens:

Wire Wrapped Continuous Slot Screen For Deep Well Drilling Ss Material

Wire Wrapped Continuous Slot Screen For Deep Well Drilling Ss Material

Wire Wrapped Continuous Slot Screen For Deep Well Drilling Ss Material

Wire Wrapped Continuous Slot Screen For Deep Well Drilling Ss Material

Wire Wrapped Continuous Slot Screen For Deep Well Drilling Ss Material

Oasis supply Wire Wrap Continuous Slot Well Screens:

The specifications table of screen jacket/ sand contral screen pipe:

Size

(inch)

Out Diameter

(mm)

Slot

(inch)

Length

(m)

Collapse

(psi)

Tensile Weight

(ton)

Wire Size

(mm)

Rods

(mm)

4

117

0.040

3

395

6

2.2*3.0

3.8mm/22

4

114.3

0.040

3

395

6

2.2*3.0

3.8mm/22

6

168.3

0.040

3

252

8

2.3*3.5

3.8mm/32

8

219.1

0.010

3

399

10.5

3.0*5.0

3.8mm/32

8

219.1

0.020

3

370

10.5

3.0*5.0

3.8mm/48

8

219.1

0.040

3

323

10.5

3.0*5.0

3.8mm/48

10

273.1

0.010

3

206

11

3.0*5.0

3.8mm/50

10

273.1

0.020

3

191

11

3.0*5.0

3.8mm/50

10

273.1

0.040

3

167

11

3.0*5.0

3.8mm/50

Deep Well Drilling Stainless Steel Wire Wrap Continuous Slot Well Screens:

In bulk or with pallet, the detail packing with plastic bag, bubble wrapped, iron cap protect the both ends, the wood strips protect the pipe filter body, wood strips protect the pipe filter body, Any other package required or as customer's requirement.

- UN supplier list :

Wire Wrapped Continuous Slot Screen For Deep Well Drilling Ss Material

Advanced technology, Strict inspection process:
Oasis has 20 years experience in Water Filter Mesh Screens/Water Well Sand Filters, we strive for technical innovations to improve quality of products.Our products not only have the features of trustworthy quality, safety and energy save but also beautiful appearance and low maintanemance.

Small profits but quick turnover:
Our Production will offer you a relatively and reasonable lower price, which means our customer can get more profite with a cheap price.

Premium and comprehensive sale system:
With a comprehensive sale system including before sales service, in-sale service and after sale service, we have won a good reputation at home and abroad. Also it is a important reason why so many customer to choose us.

Any needs of Oasis Deep Well Drilling Stainless Steel Wire Wrap Continuous Slot Well Screens, please feel free to contact for more information.
