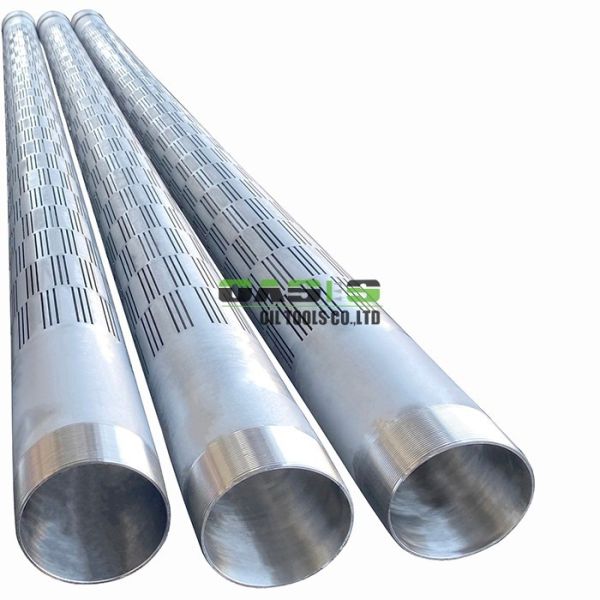

Water / Oil Reservation Layer Slotted Pipes For Borewell Easy To Operate
Water / Oil Reservation Layer Slotted Pipes For Borewell Easy To Operate
Water / Oil Reservation Layer Slotted Pipes For Borewell Easy To Operate
Water / Oil Reservation Layer Slotted Pipes For Borewell Easy To Operate
Water / Oil Reservation Layer Slotted Pipes For Borewell Easy To Operate
Water / Oil Reservation Layer Slotted Pipes For Borewell Easy To Operate
Water / Oil Reservation Layer Slotted Pipes For Borewell Easy To Operate
Water / Oil Reservation Layer Slotted Pipes For Borewell Easy To Operate
Specifications
Place of Origin :
Henan, China
Certification :
API
Brand Name :
OASIS
Supply Ability :
1500 Piece/Pieces per Month
Packaging Details :
each in bubble bags and woven bags Custom-made by client's requirements
MOQ :
5 Piece/Pieces
Price :
Negotiation
Standard :
API, ASTM
Standard2 :
API 5CT, ANSI A312-2001
Grade Group :
API J55-API P110, A53-A369
Grade :
API J55, API K55, API P110, API N80, A312
Thickness :
5 - 9.19 mm
Section Shape :
Round
Outer Diameter(Round) :
50.3 - 161.7 mm
Application :
oil wand water filter
Technique :
SMAW
Surface Treatment :
polished
Special Pipe :
API Pipe
Alloy Or Not :
Is Alloy
SLOT :
UP TO 0.10MM
THICKNESS :
UP TO 10MM
MATERIAL :
STAINLESS STEEL/CARBON STEEL
Diameter :
DN80-DN1200mm
Length :
3M-10M
Shape :
Round
Pipe Wall Thickness :
6.0-15.3mm
Secondary Or Not :
Non-secondary
Port :
qingdao/ tianjin
Description

High quality Laser slotted API 5CT standard pipe K55 slot liner casing

Product Description
API Slotted pipes
The controlling technique of the slotted pipes and the software are chosen according to the parameters of the pipes; When the pipes are slotted, the procedure including: pipe surface treatment before process,cooling and eliminating the heat during the whole slotting as well as removing the iron rust and oxide; after the pipes are slotted,quality inspection is done, unqualifies pipes are sent to waste collection station; marking the qualified pipes; material certificate is issued and the finished pipes are delivered.

Specifications:
1. Material: Generally speaking,our standard is API 5CT,the grades are J55,K55,N80,L80 etc..also we can customize it according to your actual material demand.
2. The slot can be up to 0.10mm;
3. The cutting thickness of carbon steel is up to 20mm;
4. The cutting thickness of stainless steel is up to 10mm.
5. Easy to operate and to be connected with larger inner diameter.
SPECIFICATIONS FOR SLOTTED PIPES
API std. Casing
ID
(mm)
length
(mm)
slot
length
(mm)
slot
No./m
slot
width
(mm)
valid
filter
(cm*/m)
max
strength
(kn)
spec.
(mm)
thickness(mm)
per weight
(mm)
60.32
5
6.84
50.3
3
80
200
0.3
48
512.54
73.02
5.5
9.15
62
3
80
240
0.3
57.6
688.55
88.9
6.5
13.22
75.9
3
80
280
0.3
67.2
995.1
101.6
6.5
13.22
88.6
3
80
300
0.3
72
1151.2
114.3
7
18.47
100.3
10
80
320
0.3
76.8
1400.4
127
7.52
22.13
112
10
80
340
0.3
81.6
1673.8
139.7
7.72
25.11
124.3
10
80
360
0.3
86.4
1900.2
9.17
29.48
121.4
10
80
360
0.3
86.4
2232.4
168.3
8.94
35.09
150.4
10
80
400
0.3
96
2672.95
177.8
8.05
33.68
161.7
10
80
440
0.3
105.6
2559.2
9.19
38.19
159.4
10
80
440
0.3
105.6
2940.3
Water / Oil Reservation Layer Slotted Pipes For Borewell Easy To Operate
Water / Oil Reservation Layer Slotted Pipes For Borewell Easy To Operate
Main Features

1) our slotted pipes use API J55/K55/N80 casing and tubing. With strong overall strength, the slotted pipes are not easy to deform.

2) the edge of the slot is vertical and smooth without burrs, the slot is uniform.

3) the slotted pipes control sand better, which are suitable for the well with sand diameter more than 0.3mm

4) the slot can be longitudinal and vertical and the section of the slot can be parallel and trapezoid types, which creates wide open area.

5) easy to operate to be connected with larger inner diameter.

Detailed Images

Slotted pipes

the controlling technique of the slotted pipes and the software are chosen according to the parameters of the pipes; when the pipes are slotted, the procedure including: pipe surface treatment before process, colling and eliminating the heat during the whole slotting as well as removing the iron rust and oxide; after the pipes are slotted, quality inspection is done, unqualified pipes are sent to waste collection station; marking the qualified pipes; material certificate is issued and the finished pipes are delivered.
Water / Oil Reservation Layer Slotted Pipes For Borewell Easy To Operate
Water / Oil Reservation Layer Slotted Pipes For Borewell Easy To Operate

Procedure including:

When the pipes are slotted, the procedure including:
1.pipe surface treatment before process,cooling and eliminating the heat during the whole slotting as well as removing the iron rust and oxide;
2.after the pipes are slotted,quality inspection is done, unqualifies pipes are sent to waste collection station;
3.marking the qualified pipes;
4.material certificate is issued and the finished pipes are delivered.

Specifications please refer the table above
the slot can be up to 0.10mm
the cutting thickness of carbon steel is up to 20mm
the cutting thickness of stainless steel is up to 10mm
Water / Oil Reservation Layer Slotted Pipes For Borewell Easy To Operate

Applications of slotted casing pipe

The slotted liner is mainly used to the water and oil reservation layer without much sand. It's without much sand. It's function is prevent rock bits dropping into the well bore. The working principle is allowing the certain size and coming through the surface with crude oil but keeping the bigger size sand being stopped outside to form sand bridge, and thereby achievement the anti-sand purpose. This type of product is commonly used to sand rock and carbonate reservoir,and especially usable for horizontal wells.

Best Quality
Water / Oil Reservation Layer Slotted Pipes For Borewell Easy To Operate
Water / Oil Reservation Layer Slotted Pipes For Borewell Easy To Operate
Water / Oil Reservation Layer Slotted Pipes For Borewell Easy To Operate
Water / Oil Reservation Layer Slotted Pipes For Borewell Easy To Operate

Our products have been authorized by SGS, ISO, BV.

And we will offer our customers best products with strict quality inspection.

Our Company
Water / Oil Reservation Layer Slotted Pipes For Borewell Easy To Operate
Water / Oil Reservation Layer Slotted Pipes For Borewell Easy To Operate

Factory Of OASIS

Our Warehouse

Water / Oil Reservation Layer Slotted Pipes For Borewell Easy To Operate
Water / Oil Reservation Layer Slotted Pipes For Borewell Easy To Operate
Water / Oil Reservation Layer Slotted Pipes For Borewell Easy To Operate

FACTORY

WORKSHOP

EXHIBITION

The introduction of Oasis

Oasis located in Xinxiang City, Henan. Our main products are Stainless Steel/Carbon Steel/Duplex Stainless Steel Water Well Screens/Wedge Wire Screen/Continuous Slot Screen, Pipe Based Screen/Perforated Pipe with Screen Jacket, Gravel Pre-packed Well Screens, Perforated Pipe, Slooted Pipe, Bridge Slotted Well Screens, Sand Control Well Screens, API/ISO Stainless Steel Well Casing, Industrial Filters, Screen Plate, Passive Water Intake Screens, Water Nozzles as well as related parts. Our products are widely applied in water well, oil well and gas well, sand control, filtering, paper making and chemical industry.
Our products have been exported to Egypt, Russia, Sudan, Tanzania, Tunisia, Morocco, UAE, Jordan, Indonesia, Philippines, Vietnam, Canada, Bolivia, Ecuador, etc.

Packing & Delivery
Water / Oil Reservation Layer Slotted Pipes For Borewell Easy To Operate

1. Bundle packing.
2. Bevelled end or plain end or warnished as per buyer's required.
3. Marking: As per customer's requests.
4. Painting varnish coating on the pipe.
5. Plastic caps at ends.
