Product Description

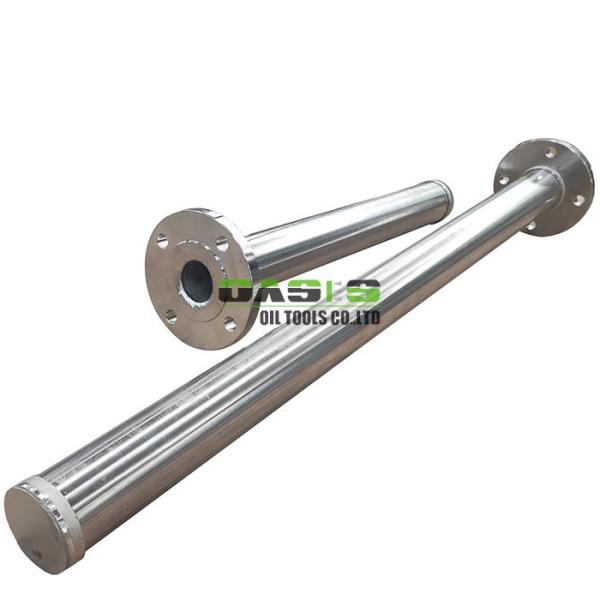

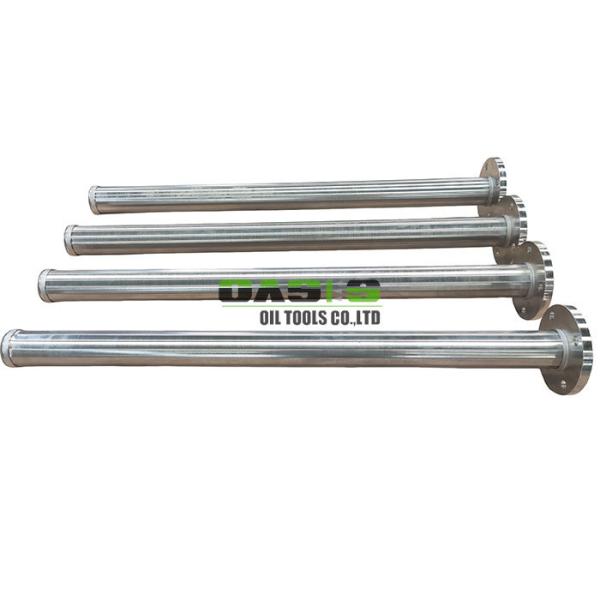

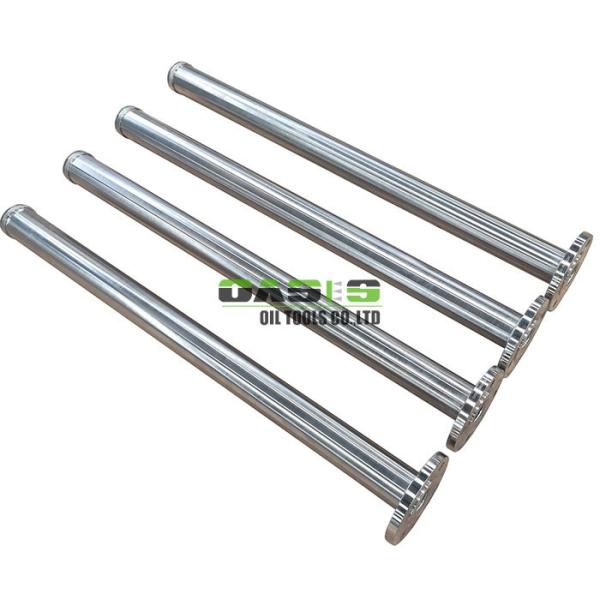

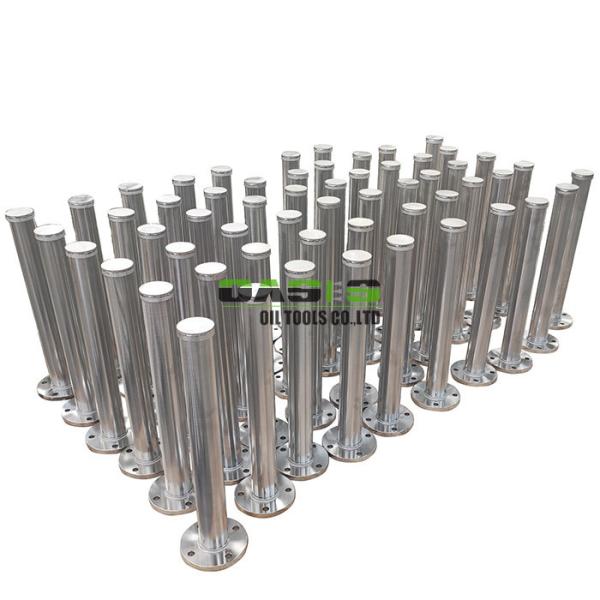

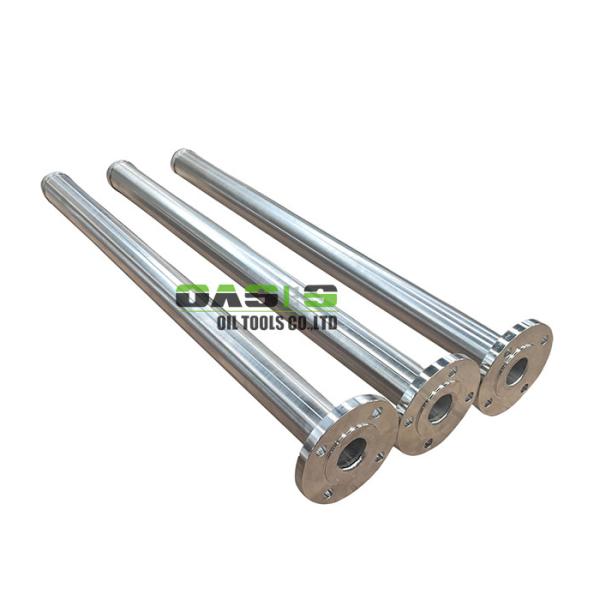

Flange Ending Wedge Wire Lateral: Robust Filtration for Demanding Applications

The Flange Ending Wedge Wire Lateral is a high-performance filtration component designed for heavy-duty industrial use. Constructed with precision-welded V-shaped wires onto sturdy support rods, it forms a continuous slot screen that efficiently separates solids from liquids or gases, even under high flow and pressure conditions.

Its unique wedge wire design minimizes clogging and ensures consistent performance in abrasive or high-sediment environments. The flange-ended configuration allows for secure, leak-proof integration into existing pipeline systems, making it ideal for a wide range of industrial filtration applications.

Specifications

Key Features & Benefits

• High Mechanical Strength: Outperforms mesh and perforated plate filters with a service life of up to 20 years.

• Superior Flow Efficiency: Up to 80% open area ensures high throughput with minimal pressure drop.

• Thermal Resistance: Withstands temperatures up to 900°C, suitable for extreme-temperature processes.

• Corrosion-Resistant Materials: Available in 304/316 stainless steel, Hastelloy, titanium, and more.

• Self-Cleaning Capability: Reduces maintenance frequency by 30–50% in high-sediment applications.

• Flange Connection: Ensures easy installation, system compatibility, and reliable sealing.

Common Applications

• Water Treatment: Intake screening, backwash systems, and desalination pre-treatment.

• Oil & Gas: Sand separation from crude oil, catalyst recovery.

• Food & Beverage: Starch extraction, juice clarification, and CIP systems.

• Chemical Processing: Filtration of aggressive fluids and slurries.

• Agriculture: Irrigation systems and nutrient filtration.

Customization Options with OASIS

OASIS offers tailored solutions to meet your specific operational needs:

• Slot Sizes: From 0.02 mm to 3 mm for fine to coarse filtration.

• Dimensions: Inner diameters from 50 mm to 600 mm, lengths from 500 mm to 3000 mm.

• Materials: 304/316 stainless steel, Hastelloy, titanium, and other alloys.

• End Connections: Flanged, threaded, or welded; also available in non-circular profiles.

• Special Features: Anti-blinding designs, reinforced supports, and protective coatings.

Maintenance & Longevity

• Easy Cleaning: Backwash with water or air; use chemical cleaning for stubborn deposits.

• Durable Construction: Resists deformation and corrosion under extreme conditions.

• Routine Inspection: Check for slot integrity, weld condition, and seal leaks to ensure long service life.

More Details

Why Choose OASIS Flange Ending Wedge Wire Laterals?

OASIS combines engineering excellence with customizable design to deliver filtration solutions that enhance efficiency, reduce downtime, and lower total cost of ownership. Whether you operate in wastewater treatment, mining, food processing, or energy production, our wedge wire laterals are built to perform.
