Specifications
Brand Name :
OASIS
Certification :
GB/T 19001-2016/ISO9001:2015
Place of Origin :
CHINA
MOQ :
10 Meter/Meters
Price :
Negotiation
Payment Terms :
L/C, T/T
Supply Ability :
6000 Meter/Meters per Month
Delivery Time :
Within 35 days
Packaging Details :
Wooden cases or pallet or bundle or container or according to clients' requirements
Material :
Stainless Steel Wire,316,304L,etc))
Application :
Filters,Screen,filtering,Woven Wire Mesh
Wire diameter :
Requirement,0.5-8mm,0.9mm,2.2 X 3.5mm
Product name :
Continuous Slot Wire Wrapped Well Screen (Length up to 12m),V shape profile wire wrapped screen /continuous-slot water well screen,Wedge Wire Cylinder Filter Screen,Wire Wrap Screen 0.5Mm Stainless Steel 500 Micron Mesh Sieve,Duplex stainless wedge wire sc
Feature :
Anti-corrosion,strong impact resistance,Durable,Solid structure,High Strength
Sample :
available
Description
325mm (12in) Wedge Wire Water Well Screen with Welding Ring Joint | Custom Wire Wrapped Johnson Screen

Product Overview

Oasis 325mm (12 inch, 325mm OD) wedge wire water well screen, also widely known as continuous slot screen, stainless steel wire wrapped screen, Johnson screen and wire wound screen, is professionally manufactured with advanced resistance welding technology. The premium V-shaped profile wires are firmly welded onto sturdy longitudinal support rods integrally, forming continuous, uniform and smooth slot openings across the entire screen pipe surface. This exclusive structural design fundamentally optimizes the overall working performance of the well screen, effectively reducing sediment and impurity clogging during water filtration operation, greatly increasing the effective open area for water inflow, and significantly enhancing both axial tensile strength and radial compression resistance of the screen body. We specially configure welding rings as the standard interface for this 325mm water well screen, ensuring fast, firm, leak-proof and durable on-site installation and connection for various well projects. All slot sizes of the screen are precisely controlled and calibrated, realizing stable and reliable sand control and formation protection for different geological and water well formation conditions.

Specifications & Materials

Standard Sizes Customizable OD Min Slot Length Materials Optional Interfaces
4 1/2 in (114.3 mm) 25-1500 mm 0.05 mm 0-6 m (customizable) AISI304, 304L, 316L, Duplex 2205, 2507 plain end, threads, flange
6 5/8 in (168.3 mm)
8 5/8 in (219.1 mm)
10 in (273 mm)
12 in (325 mm)

Customization

We support full personalized customized production of all water well screen products with no limited customization requirements. Whether you need special outer diameter, special slot size, unique pipe length, exclusive interface mode or customized material matching, our professional production team can fully meet your personalized project parameters and on-site construction demands.

Quality & Technical Support

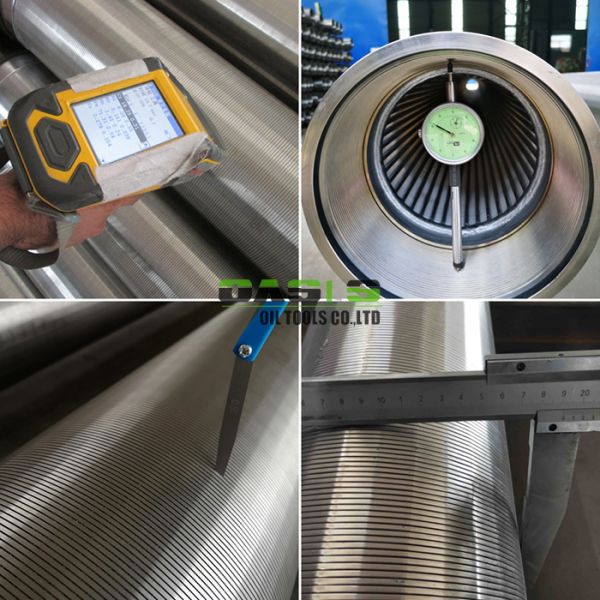

Quality is the core guarantee of our products’ long-term stable operation. We implement full-process strict quality control and inspection from raw material incoming acceptance to finished product delivery. Every batch of raw steel materials and finished water well screens will undergo rigorous dimensional detection, welding quality inspection, pressure resistance test, corrosion resistance detection and sand control performance testing, to ensure all products fully comply with international industry standards and customer technical requirements. To bring more quality assurance and credibility for your procurement projects, we actively support authorized third-party institutional inspection services. Customers can freely choose mainstream authoritative third-party organizations such as BV and SGS to conduct on-site inspection and product quality verification before shipment, with full inspection documents and reports provided.
<img alt="" data-cke-saved-src="/photo/wellscreenpipe/editor/20260521111656_68846.jpg <div class=" src="/photo/wellscreenpipe/editor/20260521111656_68846.jpg <div class=" ace-line="" old-record-id-ledtfi1asdza0lchltgcthyonie"="">
stainless steel wire wrapped screen wedge wire water well screen 325mm with welding ring joint for sand control and formation protection

Cooperation Invitation

Welcome global customers to consult and purchase. We provide cost-effective products, customization and full technical support, looking forward to win-win cooperation.
stainless steel wire wrapped screen wedge wire water well screen 325mm with welding ring joint for sand control and formation protection

FAQ

Q: What is a wedge wire screen?
A: It’s a well screen with V-shaped wires welded to support rods, anti-clogging and high-strength.
Q: Is your pipe base screen customizable?
A: Yes, we support full customization of size, slot, length and material.
Q: What material is your stainless steel well screen?
A: AISI304, 304L, 316L, Duplex 2205, 2507 available.
