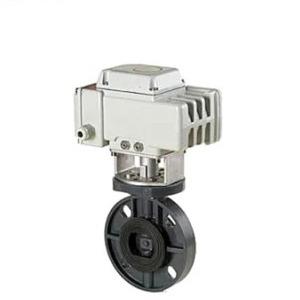

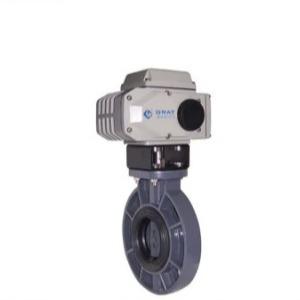

Industrial UPVC Wafer Connection Butterfly Valve Electric Motorized Butterfly Valve
Industrial UPVC Wafer Connection Butterfly Valve Electric Motorized Butterfly Valve
Industrial UPVC Wafer Connection Butterfly Valve Electric Motorized Butterfly Valve
Industrial UPVC Wafer Connection Butterfly Valve Electric Motorized Butterfly Valve
Industrial UPVC Wafer Connection Butterfly Valve Electric Motorized Butterfly Valve
Industrial UPVC Wafer Connection Butterfly Valve Electric Motorized Butterfly Valve
Industrial UPVC Wafer Connection Butterfly Valve Electric Motorized Butterfly Valve
Industrial UPVC Wafer Connection Butterfly Valve Electric Motorized Butterfly Valve
Industrial UPVC Wafer Connection Butterfly Valve Electric Motorized Butterfly Valve
Industrial UPVC Wafer Connection Butterfly Valve Electric Motorized Butterfly Valve
Specifications
Brand Name :
GRAT
Model Number :
EB-00007
Certification :
IP68,CCC, ISO, CE、CNAS
Place of Origin :
Wuhan, Hubei, China
MOQ :
1 pc
Price :
USD $50.00/ Piece
Payment Terms :
LC, T/T, D/P, PayPal, Western Union
Supply Ability :
1000PCS/Week
Delivery Time :
3 working days
Packaging Details :
Carton/Wooden Box
Media :
Acid
Driving Mode :
Electric
Connection Form :
Wafer
Structure :
Centre Sealing
Seal Form :
Auto Sealed
Valve Stem :
Normal
Working Temperature :
Normal Temperature (-40°C
Valve Body :
Casting
Application :
Industrial Usage
Work Pressure :
Low Pressure (Pn<1.6mpa)
Material of Seal Surface :
Soft Sealed
Standard :
DIN
HS Code :
8481804090
Description

UPVC Wafer Connection Electric Motorized Butterfly Valve for Chemical Industry

Product Description:

UPVC Wafer Connection Electric Motorized Butterfly Valve for Chemical Industry/IP67/Soft Sealed

Description:

Industrial UPVC Wafer Connection Butterfly Valve Electric Motorized Butterfly Valve

UPVC electric butterfly valve is suited to low pressure and room temperature services

to switch, control, and cut off various strong corrosive fluid mediums.
With lightweight and strong corrosion resistance, the body is widely applied in the piping

system of pure water and raw drinking water, drainage and sewage, brine and seawater,

acid-alkali and chemical solution.

Features:

* Beautiful appearance, compact structure, small flow resistance.
* Strong corrosion resistance, a broad scope of application.
* Light weight, diversified performance, easy to install.
* The patent positioning technology
* Simple structure, easy to operate, high cost-effective.

Specification:

Power supply AC220V
Valve size DN50-300
Medium Temp -15ºC ~ 60ºC(no congelation)
Ambient Temp -25ºC ~ 55ºC
Body ratings 1.0Mpa
Action mode Switch to cut off,0 ~ 90°gyration
Action time 4, 15, 30, 60S
Protector Overheat protection
Body connections Wafer, flange
Body material UPVC
Seal material PTFE,EPDM
Actuator material Casting aluminum alloy
Applicable medium Water, air, oil, corrosive chemical liquid
Protection level IP68
Installation mode Install it in any angle(Prefer to horizontal or inclined installation to extend service life.)


Control Diagram


Industrial UPVC Wafer Connection Butterfly Valve Electric Motorized Butterfly Valve

Packing & Shipping:
1.Packing: inner with bubble wrap,outer with cardboard box and wooden case.
2.Transportation:by sea, by air,by train.
If you have other requirements, please feel free to tell us.
