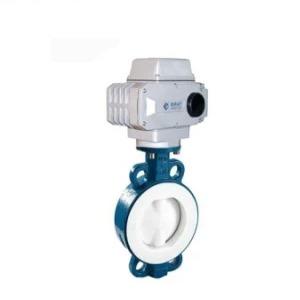

High Temperature Fluorine Electric Control Butterfly Valve With Wafer / Flang Connection
High Temperature Fluorine Electric Control Butterfly Valve With Wafer / Flang Connection
High Temperature Fluorine Electric Control Butterfly Valve With Wafer / Flang Connection
High Temperature Fluorine Electric Control Butterfly Valve With Wafer / Flang Connection
High Temperature Fluorine Electric Control Butterfly Valve With Wafer / Flang Connection
High Temperature Fluorine Electric Control Butterfly Valve With Wafer / Flang Connection
High Temperature Fluorine Electric Control Butterfly Valve With Wafer / Flang Connection
High Temperature Fluorine Electric Control Butterfly Valve With Wafer / Flang Connection
High Temperature Fluorine Electric Control Butterfly Valve With Wafer / Flang Connection
High Temperature Fluorine Electric Control Butterfly Valve With Wafer / Flang Connection
High Temperature Fluorine Electric Control Butterfly Valve With Wafer / Flang Connection
High Temperature Fluorine Electric Control Butterfly Valve With Wafer / Flang Connection
Specifications
Brand Name :
GRAT
Model Number :
EB-00001
Certification :
IP67,CCC, ISO, CE、CNAS
Place of Origin :
Wuhan, Hubei, China
MOQ :
1 pc
Price :
USD $100.00-300.00/ Piece
Payment Terms :
LC, T/T, D/P, PayPal, Western Union
Supply Ability :
1000PCS/Week
Delivery Time :
3 working days
Packaging Details :
Carton/Wooden Box
Media :
Water
Driving Mode :
Electric
Connection Form :
Wafer
Structure :
Centre Sealing
Seal Form :
Auto Sealed
Valve Stem :
Normal
Working Temperature :
Normal Temperature (-40°C
Valve Body :
Casting
Application :
Industrial Usage, Water Industrial Usage, Food, Lubrication, Fibrous Fluid, Water, Oil, Gas.
Valve Size :
Dn40-1000
Body Material :
Wcb, Qt450-10, Ht200, Ht250
Applicable Medium :
Vitriol, Acid, Chlorine, Alkali, Aqua Regia and Ot
Work Pressure :
Low Pressure (Pn<1.6mpa)
Material of Seal Surface :
Metal Hard Sealed
Standard :
DIN
Connection :
Wafer/Flang
Actuator Material :
Casting Aluminum Alloy
Seal Ring :
PTFE
HS Code :
8481804090
Description

High Temperature Electric Control Valve with fluorine plastic lining disc​

Product Description:

High Temperature Electric Control Valve /IP67/Metal Hard Sealed

Description:

High Temperature Fluorine Electric Control Butterfly Valve With Wafer / Flang Connection

Fluorine butterfly valve adopts a fluorine plastic lining disc with spherical sealing surface, and

is matched with a silicone gasket on the bottom of the seat to regulate the sealing performance

of valve. With the tight sealing performance and ultra-long service life, the valve is easy to operate

and suited to the requirements of reliable sealing and good modulation performance by quickly

cutting off or regulating the flow.

Features:

* GRAT new technology patent for Potentiometer Positioning Device(PPD).
* The new technology for Direct Debugging Switch(DDS) in electric actuators.
* Small opening torque, good seal performance, long service life.
* Beautiful appearance, simple and compact structure, high strength, zero leakage.
* Strong corrosion resistance, a broad scope of application.
* Diversified performance, suitable for large pressure drops services and large temperature drops services, convenient to install.
* The patent positioning technology.
* Simple structure, small flow resistance, easy operation, high cost-effective.

Specification:

Power supply AC220V
Valve size DN40-1000
Medium Temp -50ºC~160ºC(no congelation)
Operating pressure
 PN1.0~1.6(MPa)
Action mode
 Switch to cut off, 0-90° gyration
Action time
 4 ~ 30S
Body connections Flange, wafer
Body material WCB,QT450-10, HT200, HT250
Disc material WCB,QT450-10, HT200, HT250
Seal ring PTFE
Actuator material Casting aluminum alloy
Design specification GB/T 12238 / API 609 / MSS SP-67
Applicable medium Vitriol,acid, chlorine, alkali, aqua regia and other strong corrosive media

Control Diagram


High Temperature Fluorine Electric Control Butterfly Valve With Wafer / Flang Connection

Packing & Shipping:
1.Packing: inner with bubble wrap,outer with cardboard box and wooden case.
2.Transportation:by sea, by air,by train.
If you have other requirements, please feel free to tell us.
