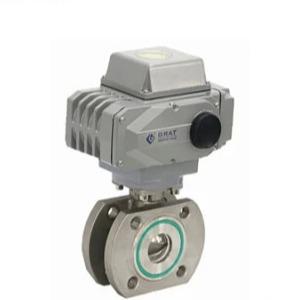

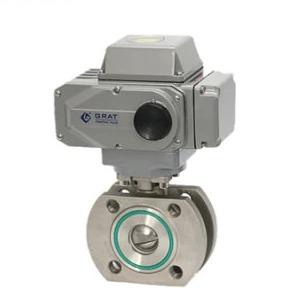

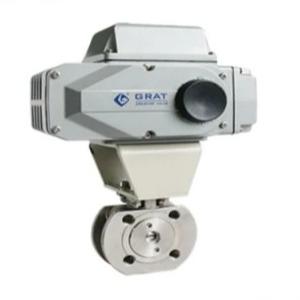

Stainless Steel 304 Flange Connection Vacuum Ball Valve with Electric Actuator
Stainless Steel 304 Flange Connection Vacuum Ball Valve with Electric Actuator
Stainless Steel 304 Flange Connection Vacuum Ball Valve with Electric Actuator
Stainless Steel 304 Flange Connection Vacuum Ball Valve with Electric Actuator
Stainless Steel 304 Flange Connection Vacuum Ball Valve with Electric Actuator
Stainless Steel 304 Flange Connection Vacuum Ball Valve with Electric Actuator
Specifications
Brand Name :
GRAT
Model Number :
EV-000027
Certification :
IP67,CCC, ISO, CE,CNAS
Place of Origin :
Wuhan, Hubei, China
MOQ :
1 pc
Price :
USD $200.00/ Piece
Payment Terms :
LC, T/T, D/P, PayPal, Western Union
Supply Ability :
1000PCS/Week
Delivery Time :
3 working days
Packaging Details :
Carton/Wooden Box
Media :
Gas
Material :
Stainless Steel
Connection Form :
Flange
Driving Mode :
Electric
Nominal Pressure :
PN1.0-32.0MPa
Channel :
Straight Through Type
Type :
Fixed Ball Valve
Temperature :
High Temperature
Application :
Industrial Usage, Water Industrial Usage
Voltage :
AC220V/DC24V
Output Signal :
4-20mA
Control Signal :
4-20mA
Structure :
Fixed Ball Valve
Function :
Bypass-Valve
Standard :
DIN
Size :
Dn15~250
HS Code :
8481804090
Description

Stainless Steel 304 Flange Connection Vacuum Ball Valve with Electric Actuator


Product Description:

Stainless Steel 304 Flange Connection Vacuum Ball Valve with Electric Actuator /IP67/ Fixed Ball Valve

Description:

Electricity Drive Vacuum Ball Valve features a robust construction with a body size ranging from DN15 to DN250 and

is capable of handling a medium temperature range of -80°C to 160°C without the risk of congelation.

This valve is well-suited for applications involving corrosive chemical liquids, such as acids, alkalis,

salts, chlorine gas, steam, and other aggressive substances

Specification:

Power supply AC220V
Body size DN15-250
Medium Temp -80°C~160°C(no congelation)
Operating pressure PN1.0~2.5(MPa)
Action mode 4-20mA Signal input feedback, 0-90° gyration
Action time 4~30S
Body connections Flange
Body material WCB, ZG1CrM0, ZG1Cr18Ni9Ti
Sealed material PTFE
Actuator material Casting aluminum alloy
Applicable medium Acid, alkali, salt, chlorine gas, steam, source water, mine pulp and paper pulp, aqua regia,oxidant, reducing agent, corrosive chemical liquid

Installation size figure


Stainless Steel 304 Flange Connection Vacuum Ball Valve with Electric Actuator

DN L D K D1 N-Md B I H1 H2 W1 W2
15 35 95 65 46 4-φM12 9 2 234 196 145 196
20 38 100 75 56 4-φM12 12 2 242 196 145 196
25 42 110 85 66 4-φM12 12.7 2 218 196 145 196
32 52 133 100 78 4-φM16 14 3 231 196 145 196
40 61 145 110 87 4-φM16 15 3 238 196 145 196
50 73 160 125 99 4-φM16 16.7 3 251 196 145 196
65 92 180 145 118 4-φM16 17.2 3 265 196 145 196
80 109 195 160 136 8-φM16 19 3 298 255 184 255
100 140 215 180 156 8-φM16 18.5 3 310 255 184 255


The material of the main parts

Part name Body Bonnet Stuffing box Gland ring Seat Packing Spanner
Material
trademark		 WCB
ZG1CrM0
ZG
1Cr18Ni9Ti		 WCB
ZG1CrM0
ZG
1Cr18Ni9Ti		 WCB
40Cr
ZG
1Cr18Ni9Ti		 WCB
ZG1CrM0
ZG
1Cr18Ni9Ti		 FEP FEP WCB

Applicable channeling medium

Medium state Medium Temp. Medium pressure Medium characteristics Medium concentration Medium name
Liquid -80ºC~+160ºC 0~20kg/cm2 Strong corrosion, high scour sharpen Unlimited Acid, alkali, salt, chlorine, steam, source water, mine pulp, paper pulp, aqua regia, oxidant, reducing agent.
Gas -80ºC~+160ºC 0~20kg/cm2 Strong corrosion, high scour sharpen Unlimited
Mixture of liquid and solid -80ºC~+160ºC 0~20kg/cm2 Strong corrosion, high scour sharpen <60%


Control Diagram

Model Circuit Model Circuit
S ON/OFF,no output signal CPT ON/OFF,output 4~20mA signal
MS ON/OFF,output passive contact signal PCU Regulation,output 4~20mA signal
PIU ON/OFF,output 0~1000Ω signal G ON/OFF,output passive contact signal
SP ON/OFF,middle position control H ON/OFF,output passive contact signa

Packing & Shipping:

1.Packing: inner with bubble wrap,outer with cardboard box and wooden case.
2.Transportation:by sea, by air,by train.
If you have other requirements, please feel free to tell us.
