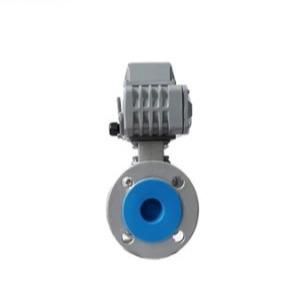

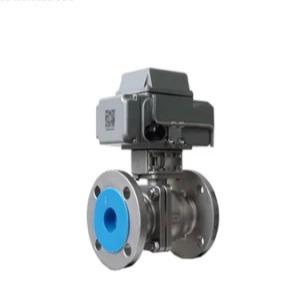

Stl Alloy Metal Seal Flange Electric Ball Valve for 350 Degree Celsius
Stl Alloy Metal Seal Flange Electric Ball Valve for 350 Degree Celsius
Stl Alloy Metal Seal Flange Electric Ball Valve for 350 Degree Celsius
Stl Alloy Metal Seal Flange Electric Ball Valve for 350 Degree Celsius
Stl Alloy Metal Seal Flange Electric Ball Valve for 350 Degree Celsius
Stl Alloy Metal Seal Flange Electric Ball Valve for 350 Degree Celsius
Stl Alloy Metal Seal Flange Electric Ball Valve for 350 Degree Celsius
Stl Alloy Metal Seal Flange Electric Ball Valve for 350 Degree Celsius
Specifications
Brand Name :
GRAT
Model Number :
EV-series
Certification :
CCC, ISO, CE、CNAS
Place of Origin :
Wuhan, Hubei, China
MOQ :
1 pc
Price :
USD $250.00-1000.00/ Piece
Payment Terms :
LC, T/T, D/P, PayPal, Western Union
Supply Ability :
1000PCS/Week
Delivery Time :
3 working days
Packaging Details :
Carton/Wooden Box
Media :
Water,Oil,Gas,Liquid
Material :
Stainless Steel
Connection Form :
Flange
Driving Mode :
Electric
Nominal Pressure :
PN1.0-32.0MPa
Channel :
Straight Through Type
Type :
Floating Ball Valve
Temperature :
High Temperature
Application :
Industrial Usage, Water Industrial Usage, Household Usage
Structure :
Floating Ball Valve
Function :
Bypass-Valve
Standard :
Jb/T 9092 API598
HS Code :
8537109090
Description

Stl Alloy Metal Seal Flange Electric Ball Valve for 350 Degree Celsius​


Product Description:

Stl Alloy Metal Seal Flange Electric Ball Valve for 350 Degree Celsius/IP67/Floating Ball Valve

Description:

Stainless steel flange electric ball valve is a rotating ball valve with the angle range from 0 degree
to 90 degree which presents good seal performance of large flow capacity, small flow resistance,
coefficient simple structure, convenient maintenance and long service life. The channel of the body
and the connecting pipe has the equal diameter to be connected together which allows medium
to flow almost no loss.

The EK series valves are usually used in the occasion of high sealing performance requirements
to control not only the medium of gas liquid but also the medium of sewage and fibrous impurity
medium which is widely applied in the fields of petroleum chemical metallurgy light industry
papermaking power station refrigeration and so on.
Stl Alloy Metal Seal Flange Electric Ball Valve for 350 Degree Celsius

Specification:


Stl Alloy Metal Seal Flange Electric Ball Valve for 350 Degree Celsius

Supply power AC220V 50/60HZ
Inside nominal diameter DN15-200
Medium temp. -20ºC ~ 350ºC (200ºC special seal material)
Nominal pressure PN16 PN25,PN40,PN64,PN100
Input signal 4-20mA
Output signal 4-20mA
Connection type Flange
Body material A105,F304,F316,WCB,FZG1Cr18Ni9Ti,ZG1Cr18Ni12Mo2Ti,CF8,CF8M,CF3M
Valve seat material PTFE(Normal temp.),PPL(Medium temp.),STL metal seat(High temp.)
Leakage level ANSIB16.104 5
Seal type Elastic seal,PPL ,STL,Ceramic
Suitable medium Water,Oil,Nitric acid,Acetic acid,Viscous fluid,Pulp,Oxidant
Protection class IP67
Manufactory standard JB/T8692-1998
Length standard GB1221-89
Inspection standard JB/T 9092 API598


CV value of Flange ball valve


Size		 DN 15 20 25 32 40 50 65 80 100 125 150 200
inch 0.5" 0.75" 1" 1.25" 1.5" 2" 2.5" 3" 4" 5" 6" 8"
CV
value		 18 36 48 93 165 207 450 780 1360 1700 2600 4200

Control Diagram

Stl Alloy Metal Seal Flange Electric Ball Valve for 350 Degree Celsius


Packing & Shipping:
1.Packing: inner with bubble wrap,outer with cardboard box and wooden case.
2.Transportation:by sea, by air,by train.
If you have other requirements, please feel free to tell us.
